1591B Proto Board [Discontinued]

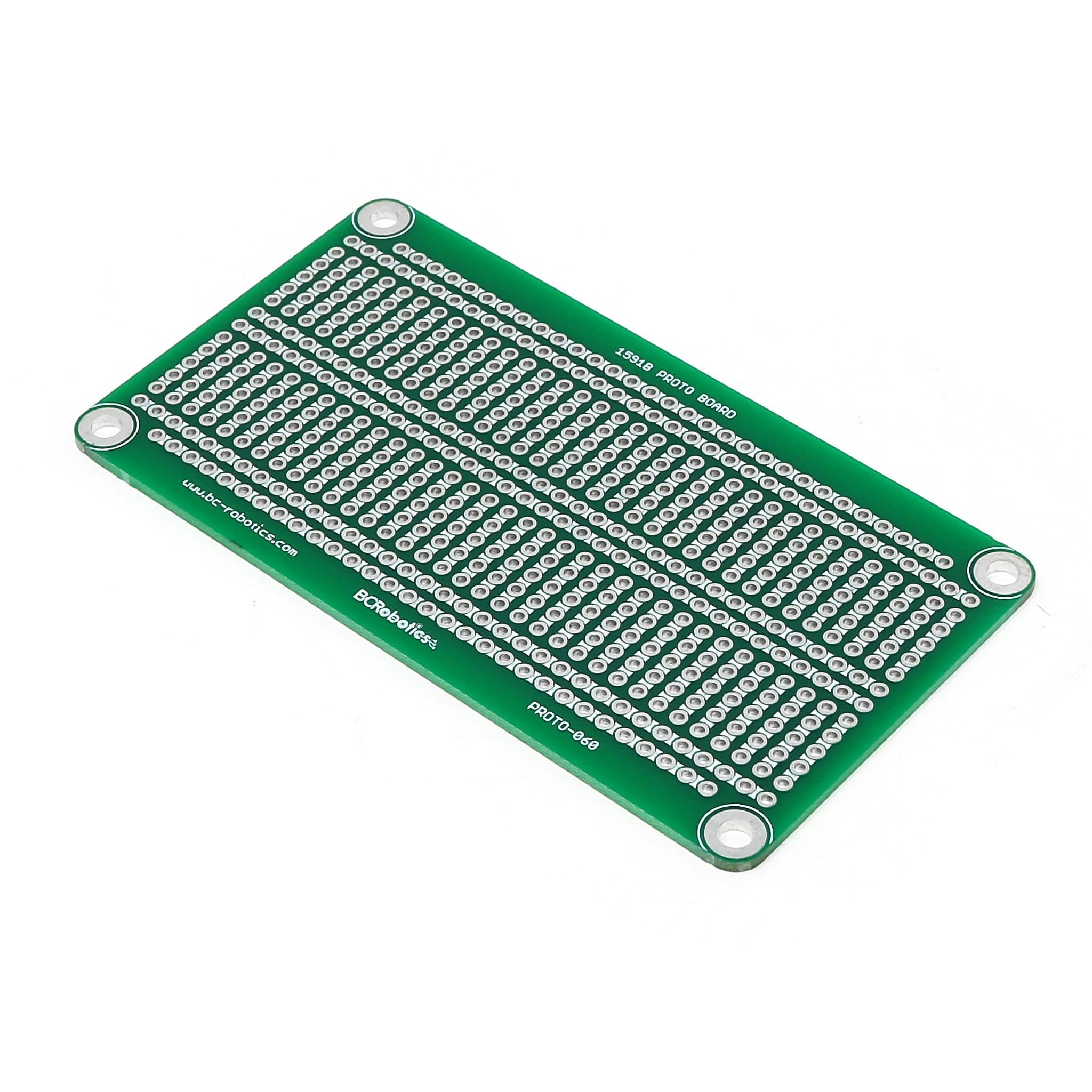

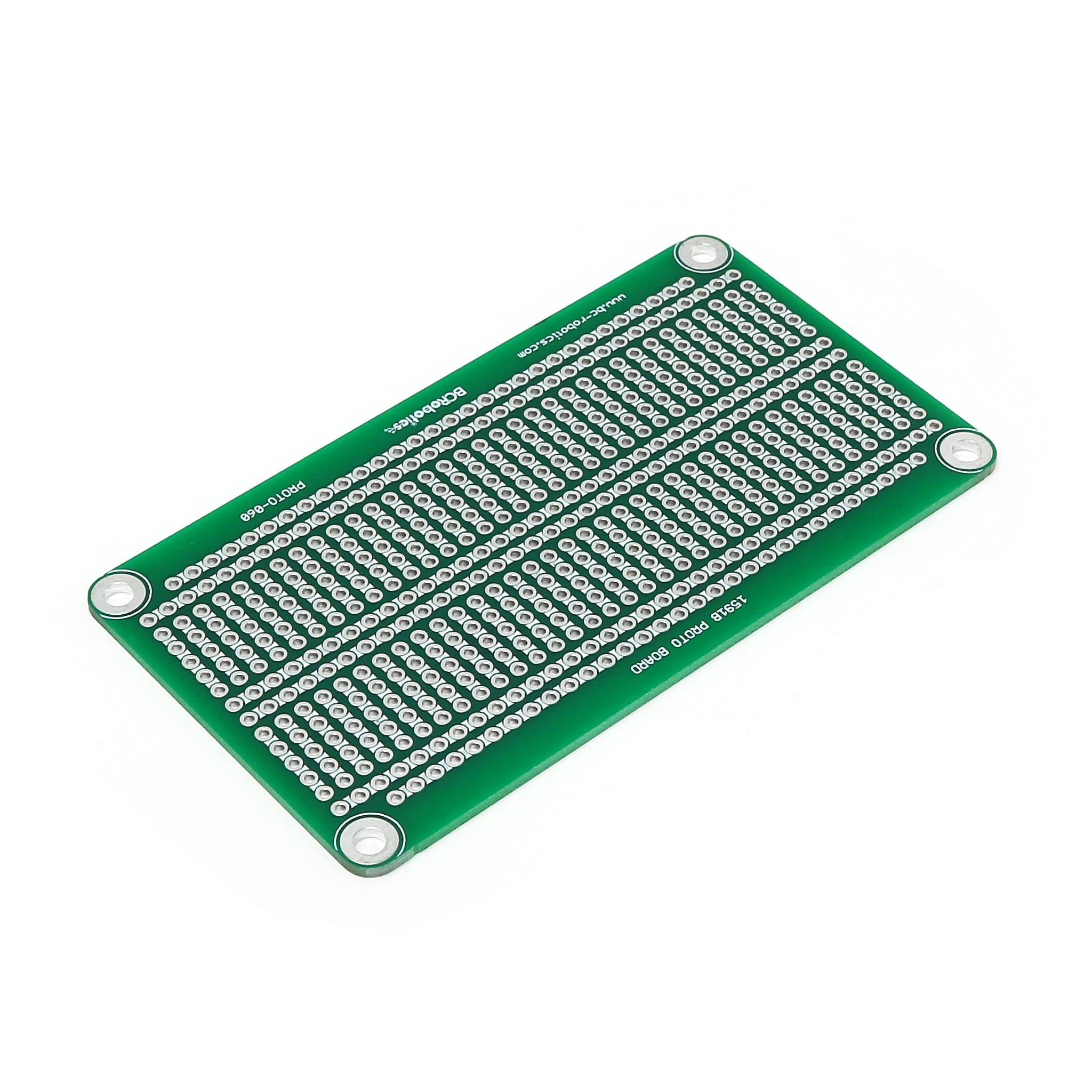

This medium-sized perfboard is specifically designed to fit Hammond 1591BFLBK flanged enclosures. The 4 mounting holes in each corner make this a perfect fit for the box and the combination make a great starting point for a fully enclosed project.
This perfboard has interconnected rails and rows just like a solderless breadboard, saving quite a bit of wiring over a standard perfboard. There are 6 horizontal power rails; each pair of full-length rails is separated by vertical rows of 5 pins. This familiar format makes for an easy transfer of a prototype circuit on a breadboard to a much more permanent shield.

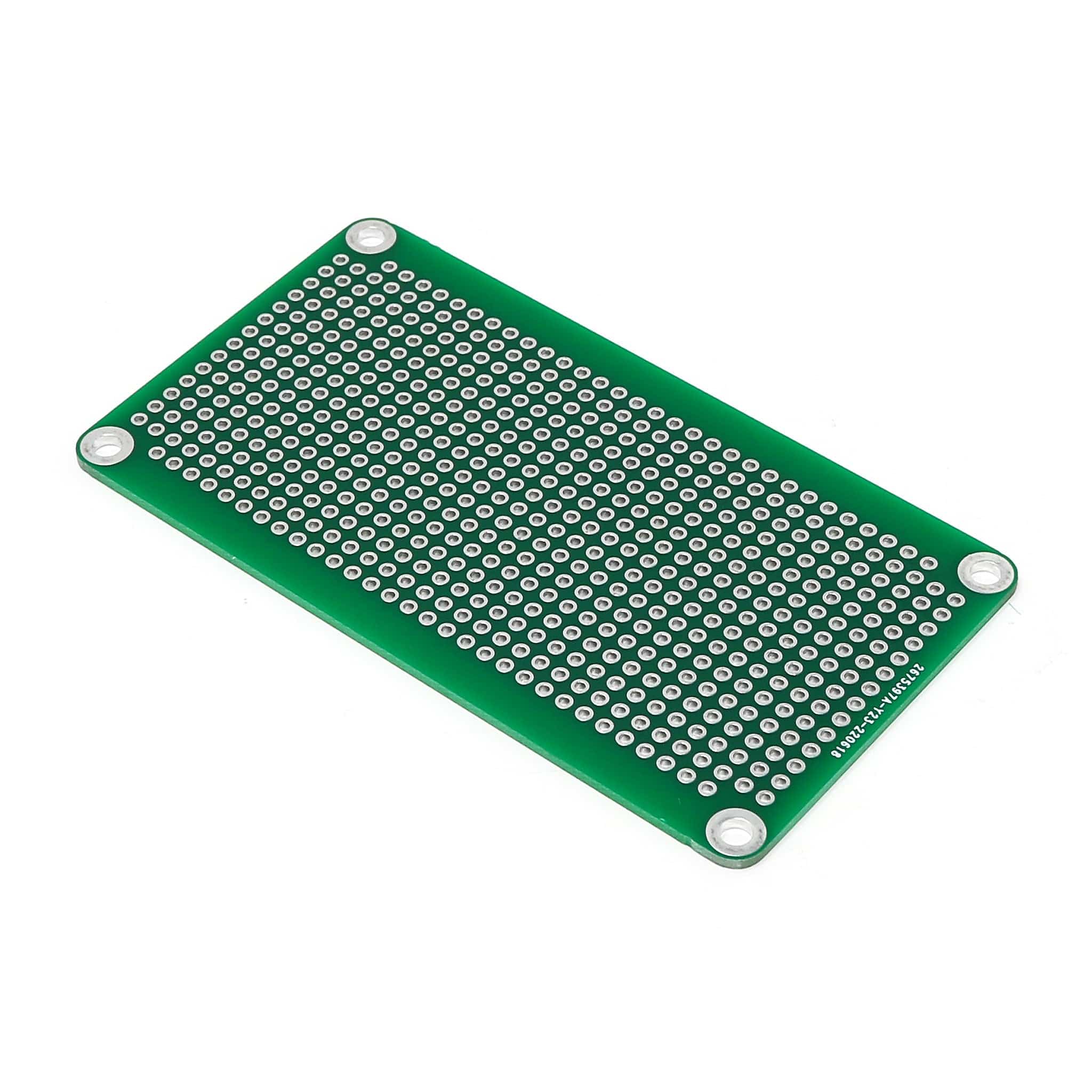

The board itself is FR4 PCB material with a 1oz copper layer and plated through holes – it will stand up to quite a bit of abuse!
Features
- Dimensions: 91 x 50mm
- Plated through holes
- 1.6mm FR4 PCB material
- Mounting Holes: 84mm x 43.25mm
- Familiar breadboard layout
- 1 oz copper layer
- Dimensions 92 × 52 × 4 mm
- Weight 15 g
Package Contents
- 1x 1591B Proto Board
