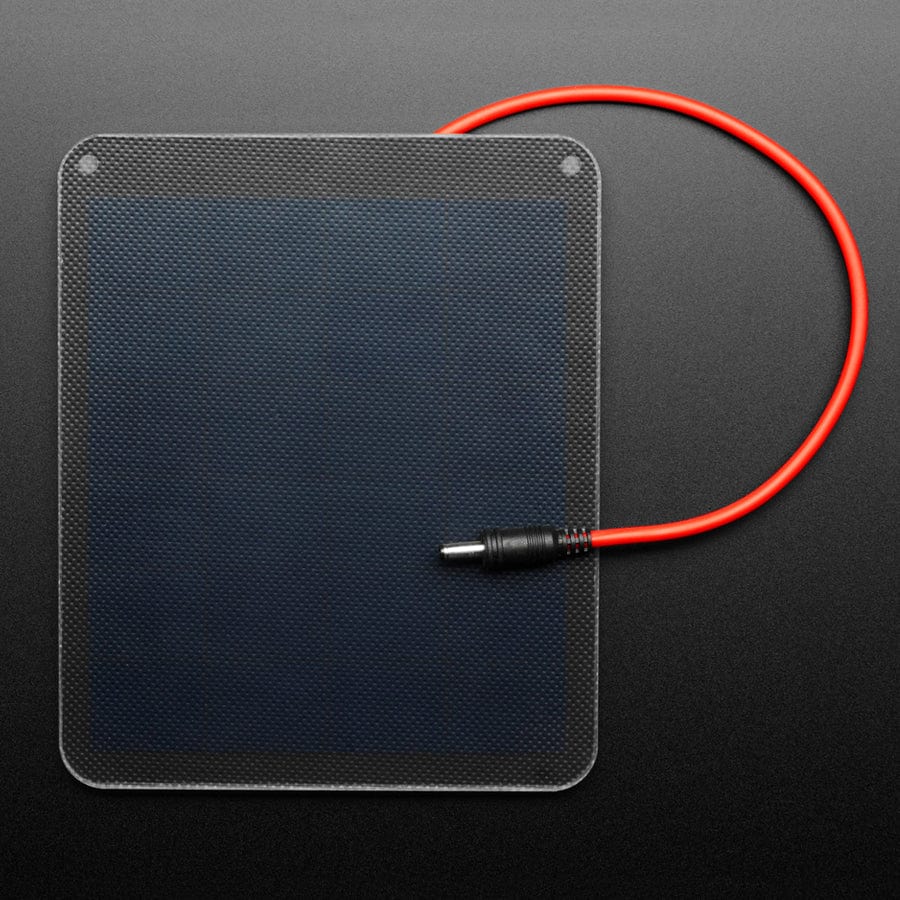

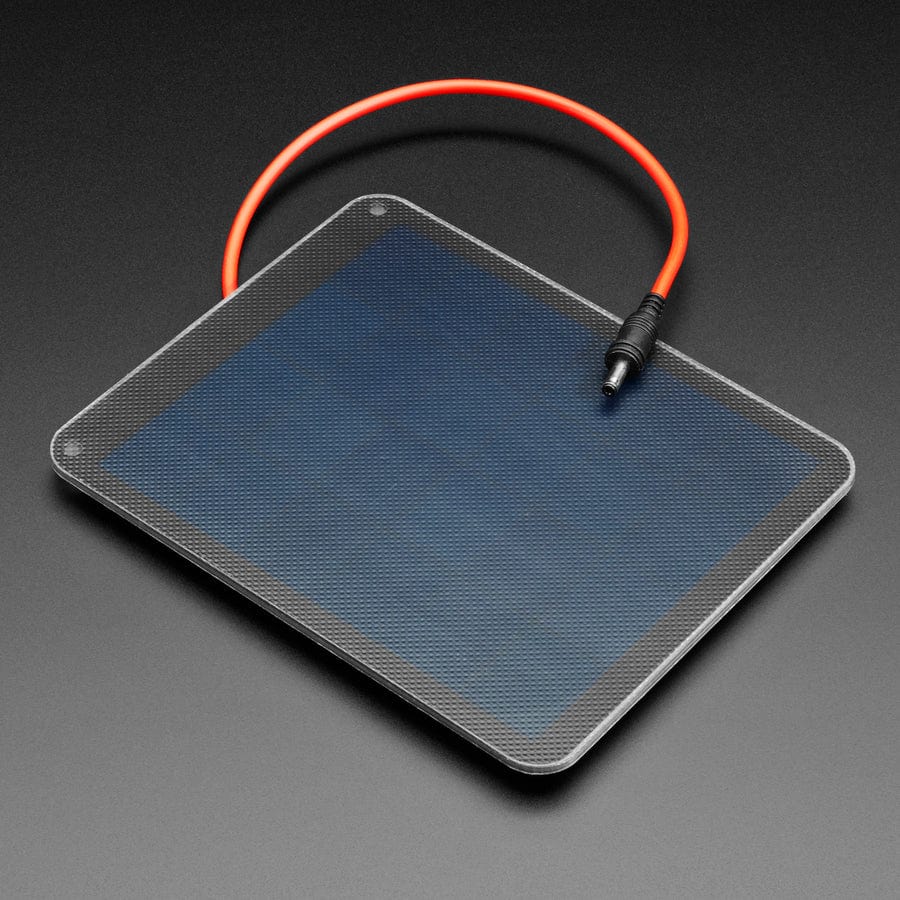

6V 2W Solar Panel - ETFE (Voltaic P126)
These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV resistant, and they use 12 high efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). Each cell has a nominal voltage of 0.5V so we call this a "6V" panel
They output a 'nominal' 6V at 330 mA peak via a 3.5mm x 1.1mm DC jack connector. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.
To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug
Features
- Waterproof (IP67)
- UV resistant (5-7 year life)
- Durable and lightweight
- High-efficiency monocrystalline SunPower cells:
Specifications
-
Size and Weight
- 112 x 136 x 2.7mm / ~5.25" x 4.4" x 0.4"
- 79 grams
-
Output
- Open Circuit Voltage: 8.51V
- Peak Voltage: 7.28V
- Peak Current: 330mA
- Peak Power: 2.37W
- Power Tolerance: +/-10%
- For maximum power output, orient the panel towards the sun
-
Construction
- Matte ETFE coating
- 1.5mm double-sided PCB
-
Warranty
- 2-year warranty on solar panels
- For more warranty information, see the warranty guide
Resources
