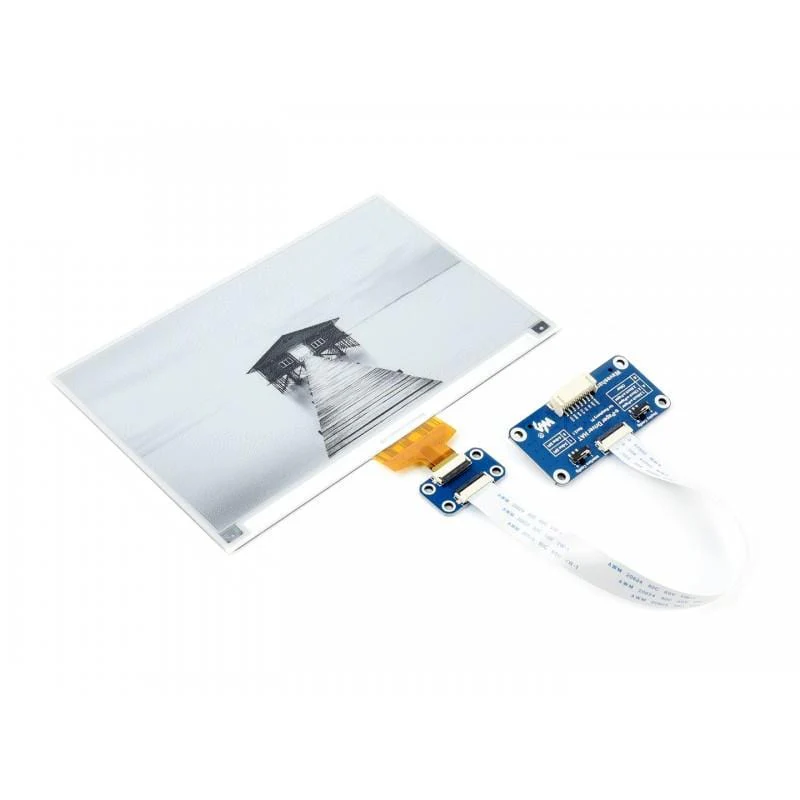

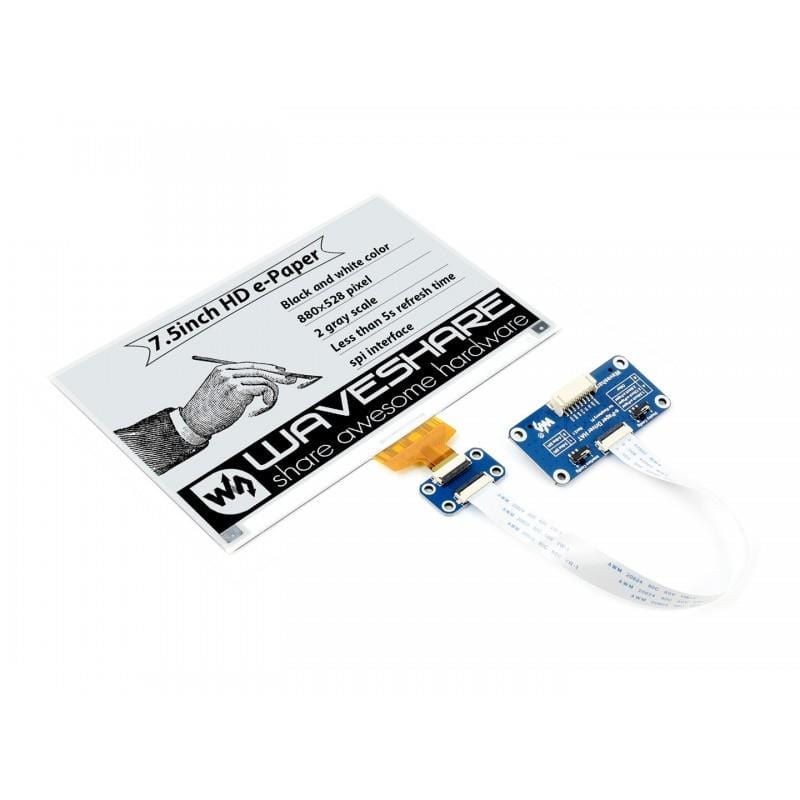

Want to take your Raspberry Pi project to the next level? This large 2-colour, low-power, 7.5-inch e-Paper E-Ink Display will definitely add a cool factor to your project that only E-Ink displays can! Not only will it look cool, but as with all E-Ink displays, your project will consume less power than it would with a typical LCD. This is a 2-colour display (black and white) and features a resolution of 880 x 528 pixels.

E-paper display utilizes microcapsule electrophoretic technology to display text and images. E-Ink displays work by applying an electrical charge to tiny coloured particles that are suspended in a clear fluid which move to different sides of a microcapsule when an electric field is applied. This causes the microcapsule to become visible by reflecting ambient light, giving it that printed paper-like feel. Another advantage of E-Ink displays is that they feature nearly up to 180° viewing angle. This display is what you would find in a typical e-reader due to its paper-like effect, and does require an external light source such as a lamp or daylight to view.

Online development resources are available, which include wiring guidance and example code, with additional information being found on the Waveshare Wiki.

Features

• No backlight & will display on-screen content continuously, even if powered down
• Ultra-low power consumption, power is only required when refreshing the on-screen content

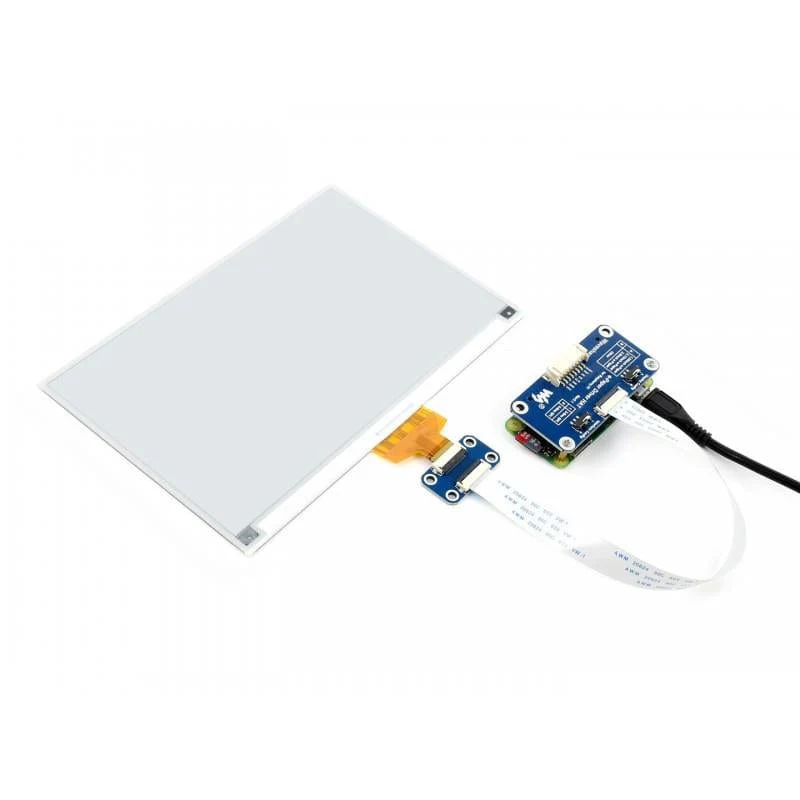

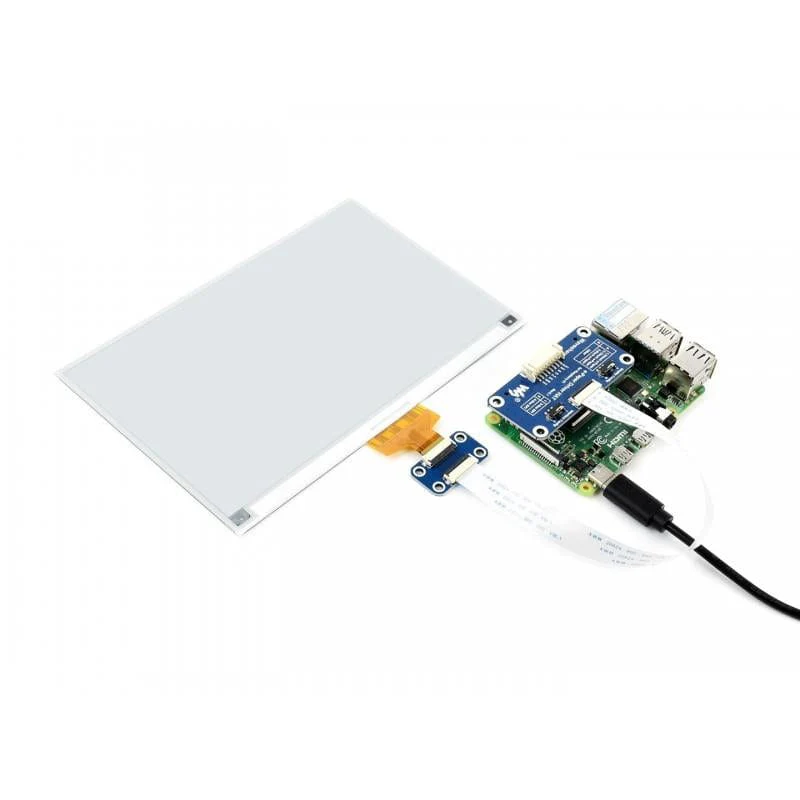

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, as well as the Jetson Nano
• SPI 3-wire and 4-wire interfaces for connecting with controller boards like Raspberry Pi, Jetson Nano, Arduino, STM32, etc.
• Onboard voltage converter makes this display compatible with 3.3V / 5V MCUs
• Comes with development resources as well as a user manual that includes examples for Raspberry Pi, Jetson Nano, Arduino, and STM32

Specifications

• Operating voltage: 3.3V / 5V
• Interface: 3-Wire SPI, 4-Wire SPI
• Overall Dimensions: 170.2 x 111.2 x 1.25mm
• Display Size: 163.24 x 97.94mm
• Dot Pitch: 0.1855 x 0.1855mm
• Resolution: 880 x 528 pixels
• Display Colours: Black & White
• Grey Scale: 2
• Full Refresh Time: 5-Seconds
• Refresh Power: 50mW (typical)
• Standby Current: <0.01uA (almost none)
• Viewing Angle: >170°

Package Contents

• 7.5inch HD e-Paper x1
• e-Paper Driver HAT x1
• RPi screws pack (2pcs) x1
• PH2.0 20cm 8Pin x1

Resources

• Waveshare Wiki

Onboard SPI Control Interface

For Use With other Controller Boards Like Arduino or STM32

VCC	3.3V/5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data / Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, high active
