Air Quality Kit for micro:bit [Discontinued]
The MonkMakes Air Quality Kit for the BBC micro:bit is based around the MonkMakes Air Quality Sensor. This add-on for the BBC micro:bit measures the quality of the air in a room - how stale the air is!
The outputs of the Air Quality Sensor board are analogue: one for temperature and one for eCO2 (estimated carbon dioxide). These outputs can be read by a micro:bit and either displayed, for instance, as an air quality meter or logged over a period of time for all sorts of interesting experiments.

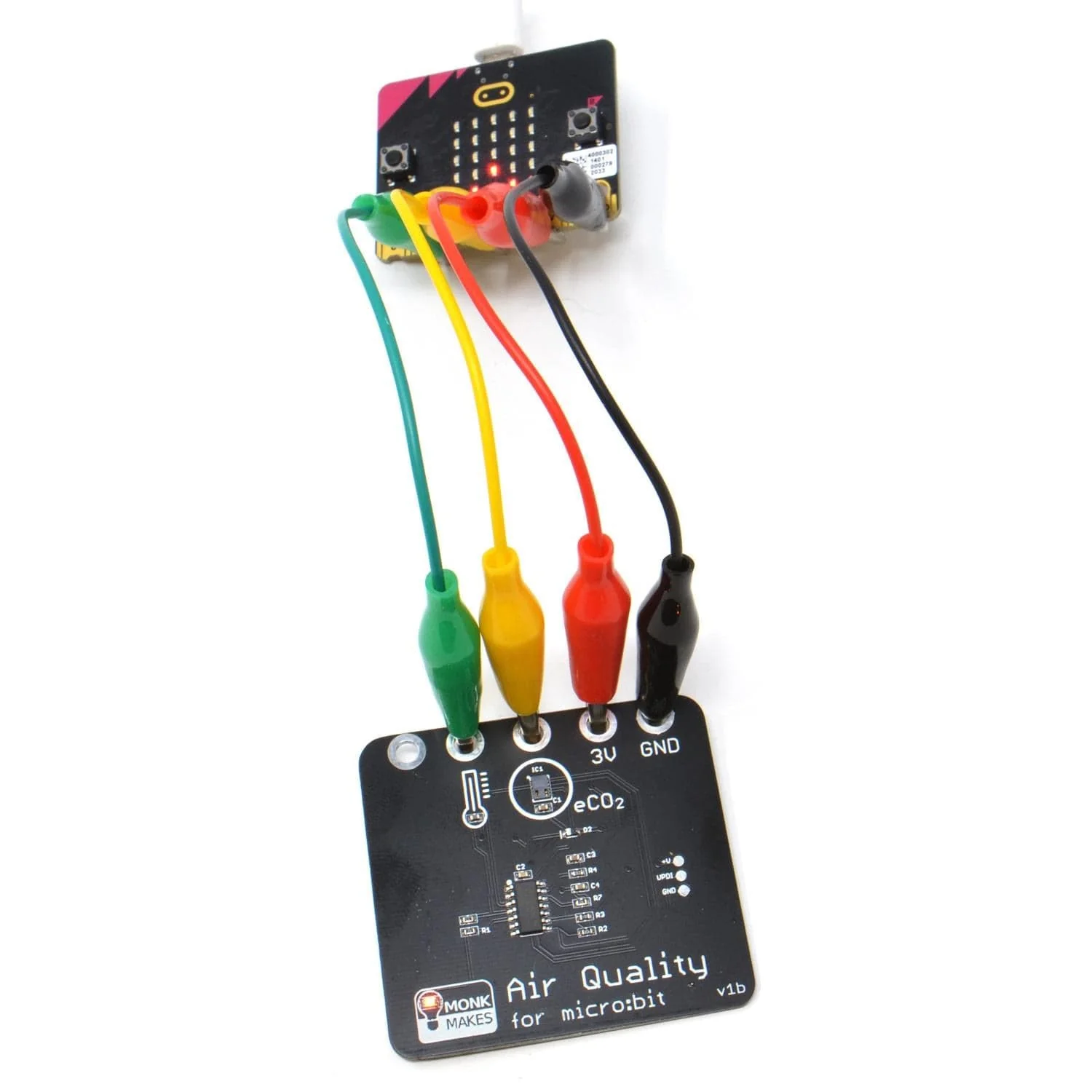

As well as the Air Quality Sensor itself, the kit also includes a set of alligator clip leads to connect it to the micro:bit and also a Speaker for micro:bit that can be connected to provide a warning of low air quality. A full-colour 24-page booklet of instructions is also included.

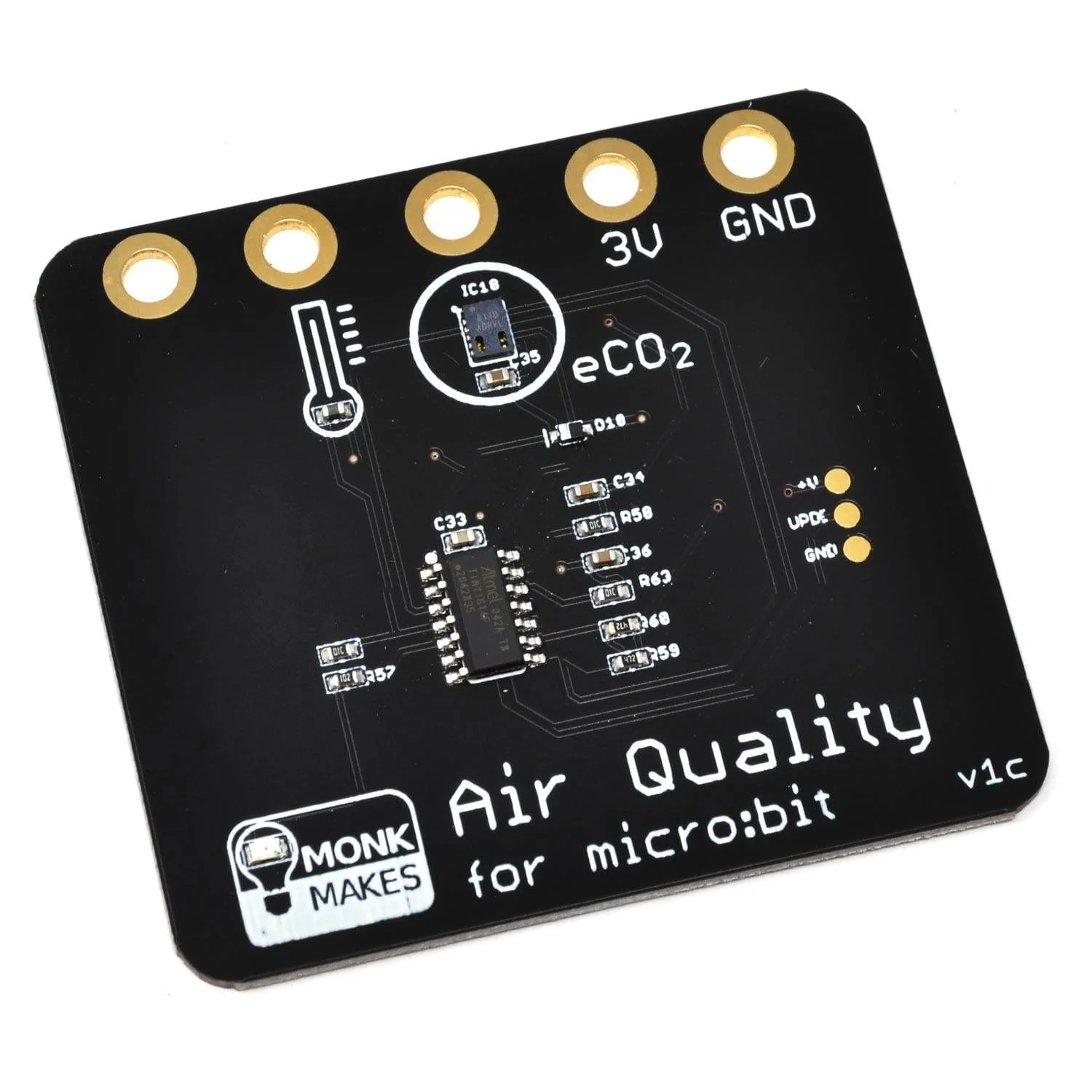

This board uses the CCS811 VOC sensor IC and a thermistor. It provides analog outputs for temperature and eCO2 level using 10 bit PWM and an ATTiny microcontroller.
Note: micro:bit not included

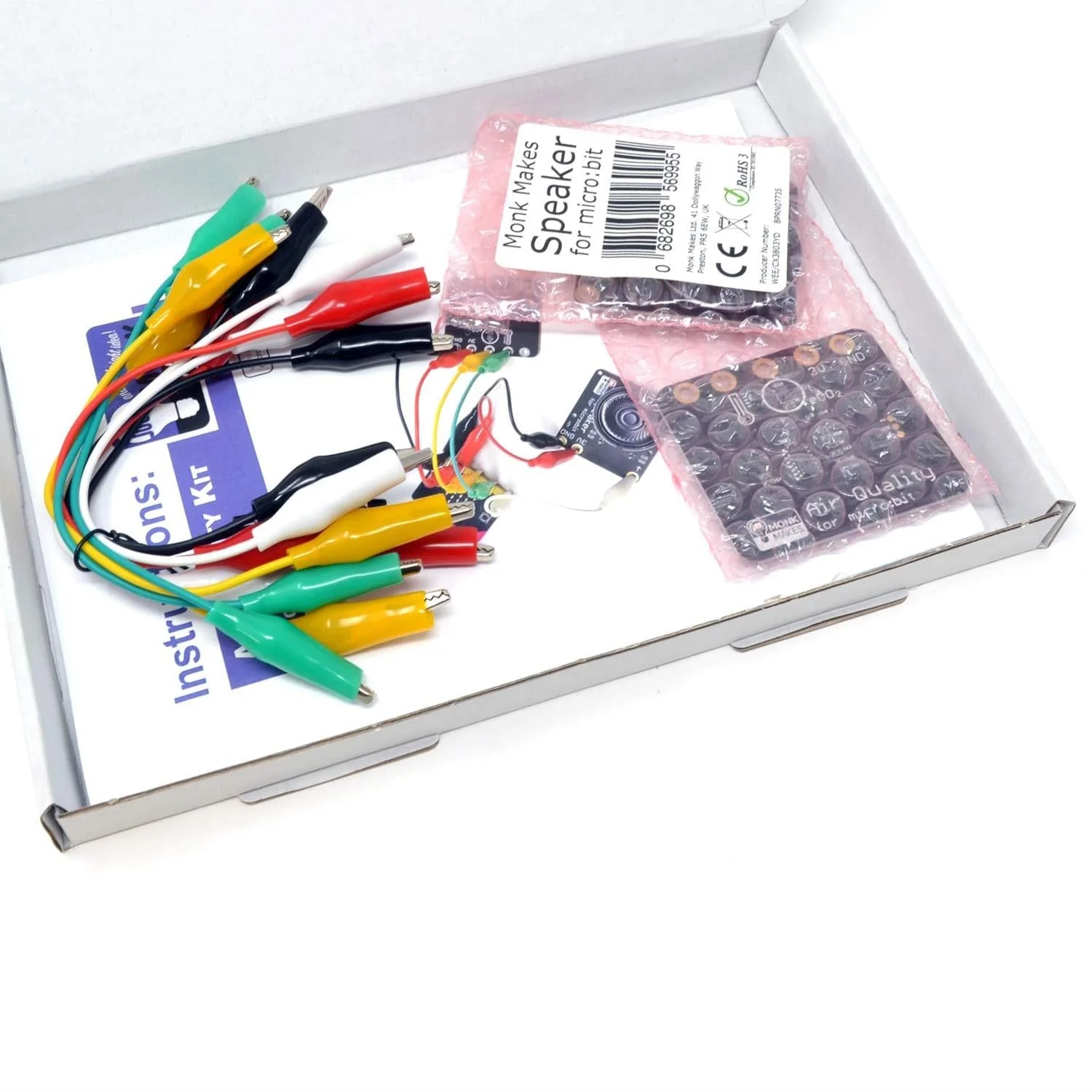

Kit Contents
- 1x Air Quality Sensor for micro:bit
- 1x Speaker for micro:bit
- 10x Alligator Clips
- 1x full-colour 24-page booklet of instructions
Resources
- Instructions
- Lesson Plans (Google Drive Share)
- Datasheet
The MonkMakes Air Quality Kit for the BBC micro:bit is based around the MonkMakes Air Quality Sensor. This add-on for the BBC micro:bit measures the quality of the air in a room - how stale the air is!
The outputs of the Air Quality Sensor board are analogue: one for temperature and one for eCO2 (estimated carbon dioxide). These outputs can be read by a micro:bit and either displayed, for instance, as an air quality meter or logged over a period of time for all sorts of interesting experiments.
As well as the Air Quality Sensor itself, the kit also includes a set of alligator clip leads to connect it to the micro:bit and also a Speaker for micro:bit that can be connected to provide a warning of low air quality. A full-colour 24-page booklet of instructions is also included.
This board uses the CCS811 VOC sensor IC and a thermistor. It provides analog outputs for temperature and eCO2 level using 10 bit PWM and an ATTiny microcontroller.
Note: micro:bit not included
Kit Contents
- 1x Air Quality Sensor for micro:bit
- 1x Speaker for micro:bit
- 10x Alligator Clips
- 1x full-colour 24-page booklet of instructions
Resources
- Instructions
- Lesson Plans (Google Drive Share)
- Datasheet
Original: $45.00
-65%$45.00
$15.75Description
The MonkMakes Air Quality Kit for the BBC micro:bit is based around the MonkMakes Air Quality Sensor. This add-on for the BBC micro:bit measures the quality of the air in a room - how stale the air is!
The outputs of the Air Quality Sensor board are analogue: one for temperature and one for eCO2 (estimated carbon dioxide). These outputs can be read by a micro:bit and either displayed, for instance, as an air quality meter or logged over a period of time for all sorts of interesting experiments.
As well as the Air Quality Sensor itself, the kit also includes a set of alligator clip leads to connect it to the micro:bit and also a Speaker for micro:bit that can be connected to provide a warning of low air quality. A full-colour 24-page booklet of instructions is also included.
This board uses the CCS811 VOC sensor IC and a thermistor. It provides analog outputs for temperature and eCO2 level using 10 bit PWM and an ATTiny microcontroller.
Note: micro:bit not included
Kit Contents
- 1x Air Quality Sensor for micro:bit
- 1x Speaker for micro:bit
- 10x Alligator Clips
- 1x full-colour 24-page booklet of instructions
Resources
- Instructions
- Lesson Plans (Google Drive Share)
- Datasheet
