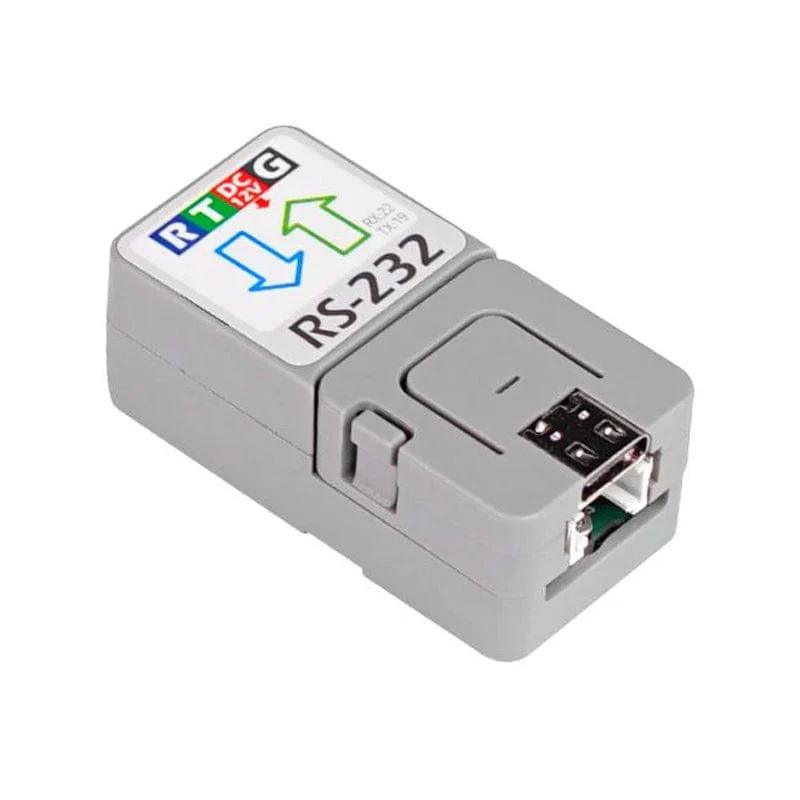

M5Stack ATOM RS232 Voltage Converter Development Kit (MAX232) [Discontinued]
The ATOM RS-232 is a TTL-RS232 level-converter designed for use with the M5Atomic module. RS232 is a full-duplex communication protocol standard, which defines the electrical characteristics of the serial communication system. A MAX232 chip is in the module, which supports bidirectional conversion between TTL level and RS232 level. A DC/DC voltage regulator chip is integrated in the ATOM RS-232, which can directly convert the 12V voltage of the RS232 hub to 5V to supply power for ATOM.
Features
- Compatible ATOM Matrix/ATOM Lite
- Built-in DC/DC
- Full-duplex communication
Package Contents
- 1x ATOM RS-232
- 1x ATOM Lite
- 1x Hex Key

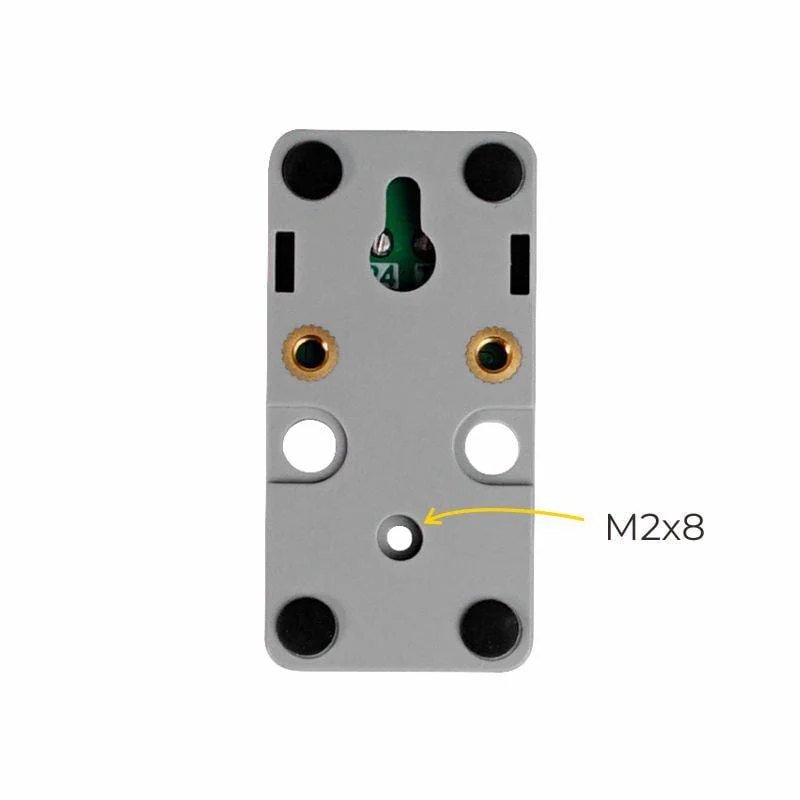

- 1x M2*8mm Hexagon socket cup head machine screw
- 1x 18cm TYPE-C Cable
Specifications
| Specification | Parameter |
|---|---|

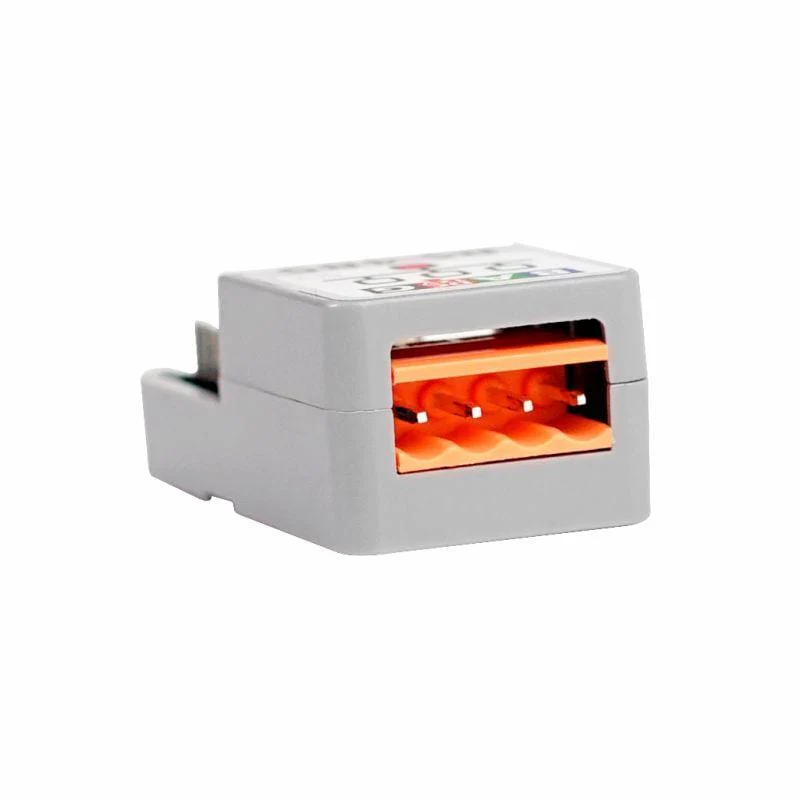

| External port | VH-3.96 4P |
| level-conversion IC | MAX232 |
| DC-DC | A0Z1282CI |
| Net weight | 26g |
| Gross weight | 36g |
| Product Size | 24 x 48 x 18mm |
| Package Size | 54 x 54 x 20mm |
| Case Material | Plastic (PC) |
