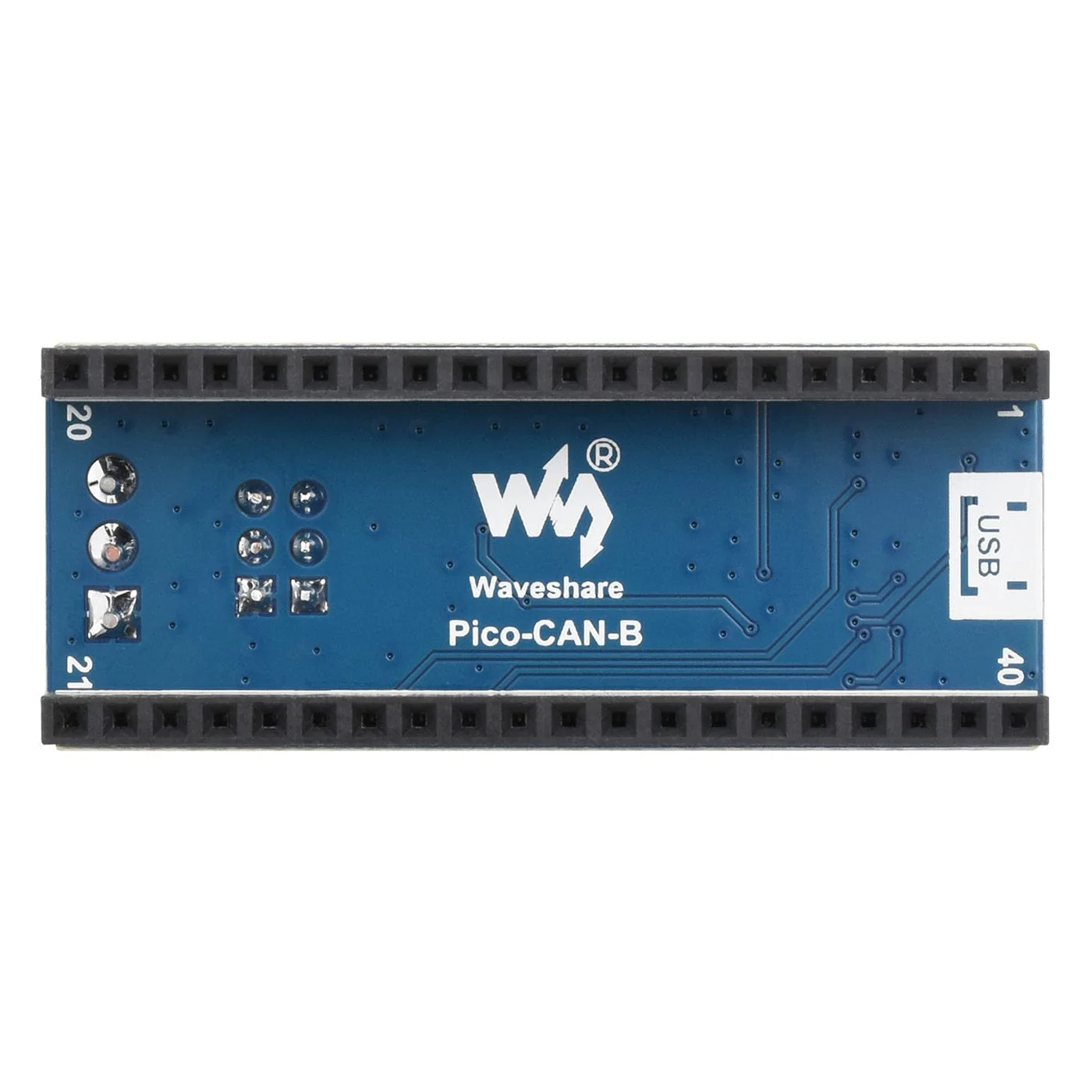

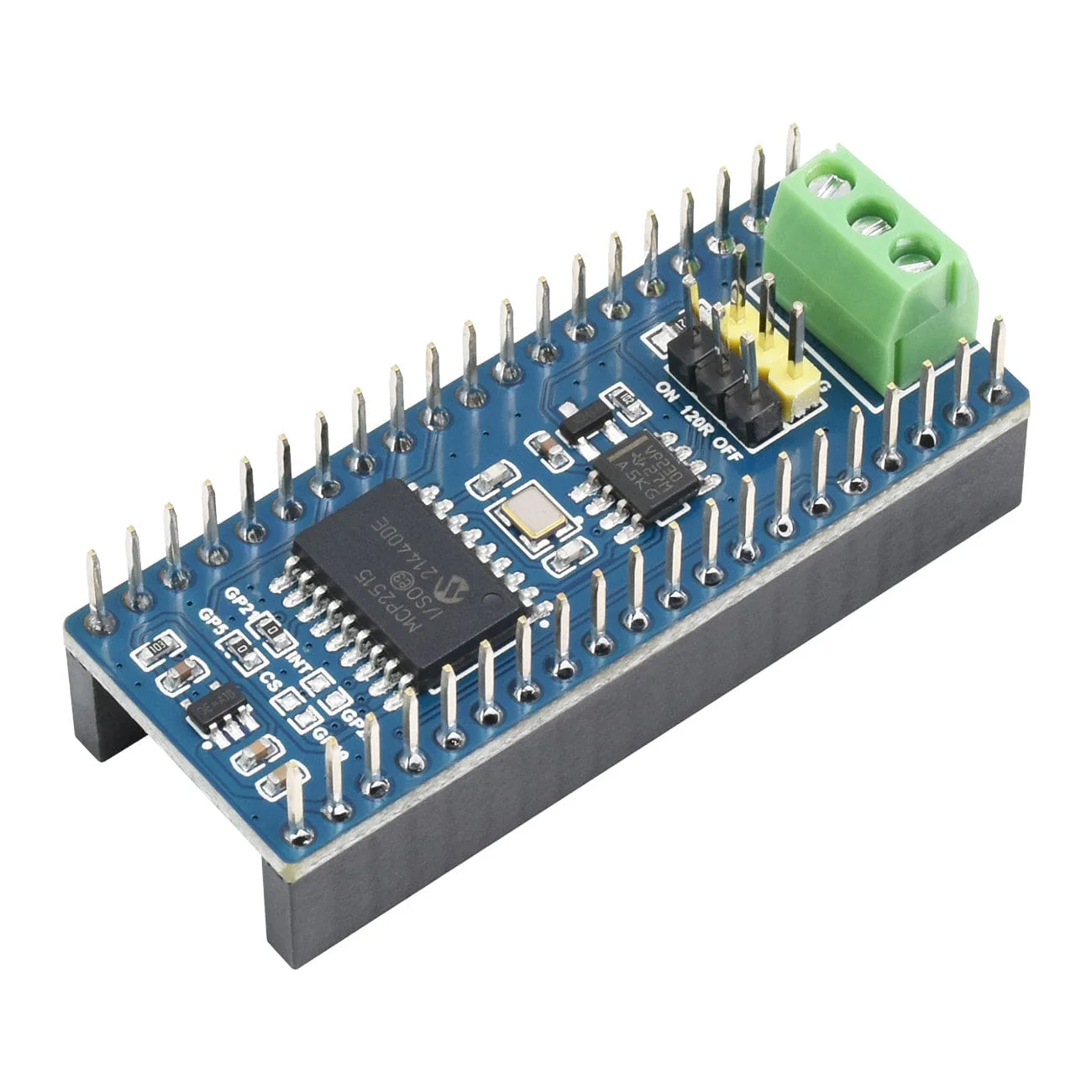

This CAN module for the Raspberry Pi Pico enables reliable long-range communication with other devices without a host computer. CAN is used in endless devices, commonly in vehicles.

The board utilises a second-generation MCP2515 CAN controller and a 3.3V SN65HVD230DR CAN transceiver. Onboard jumpers allow terminal resistor selection for the onboard 120-ohm resistor.

Online resources are available which include some demo code to get you started.

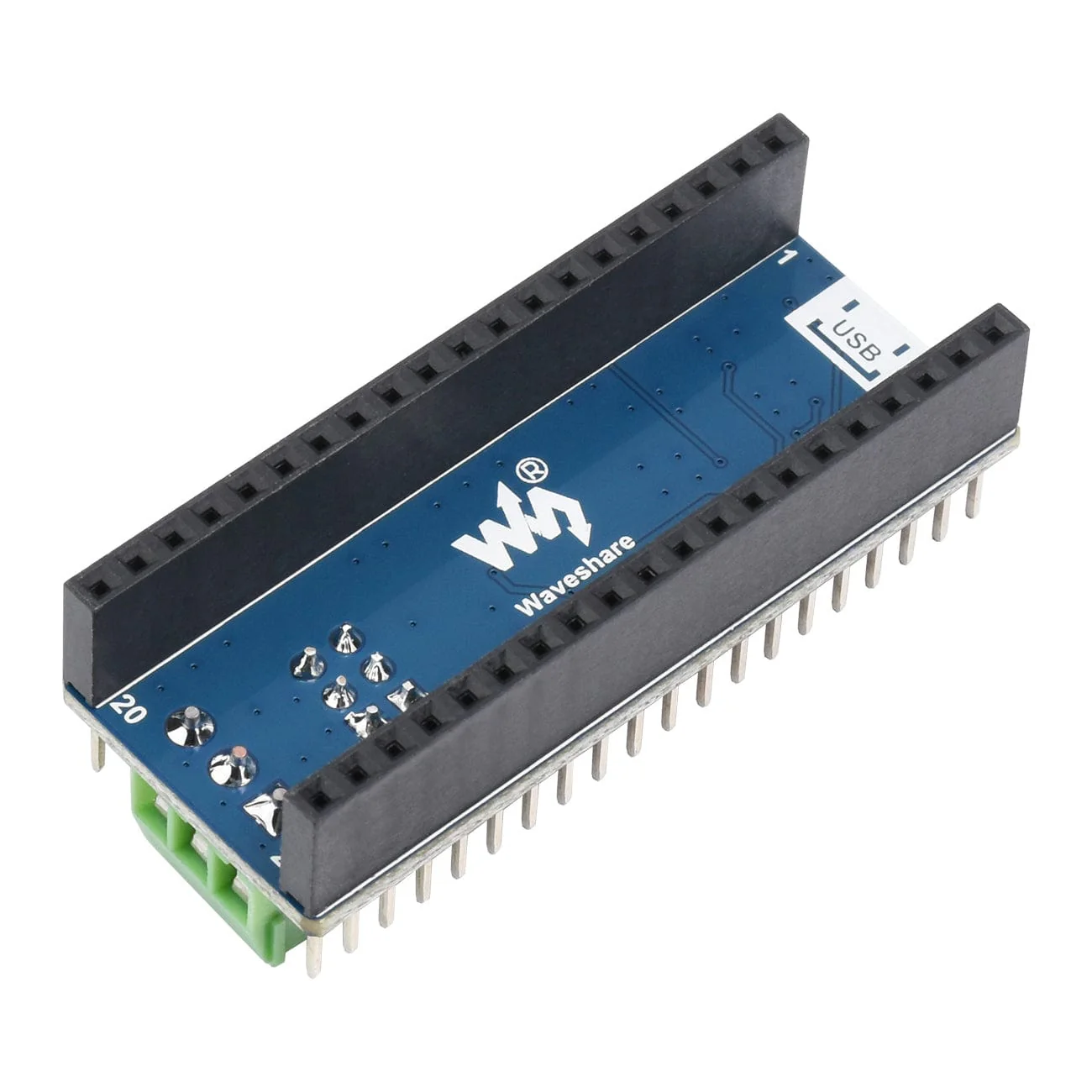

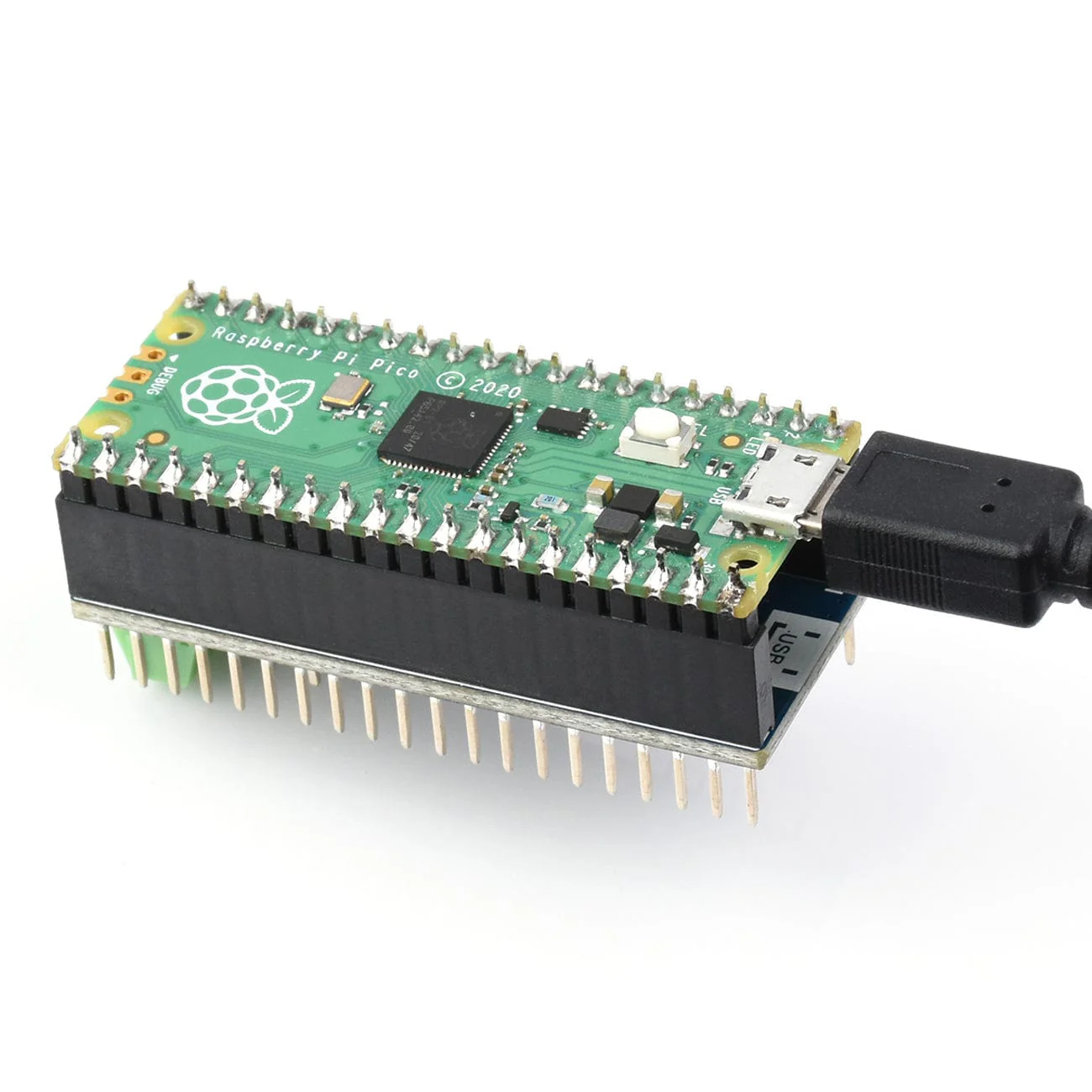

Raspberry Pi Pico is not included.

Features

• Compatible with Raspberry Pi Pico series and compatible boards
• CAN function
• SPI interface
• MCP2515 CAN controller
• SN65HVD230DR Transceiver
• Online development resources and manual

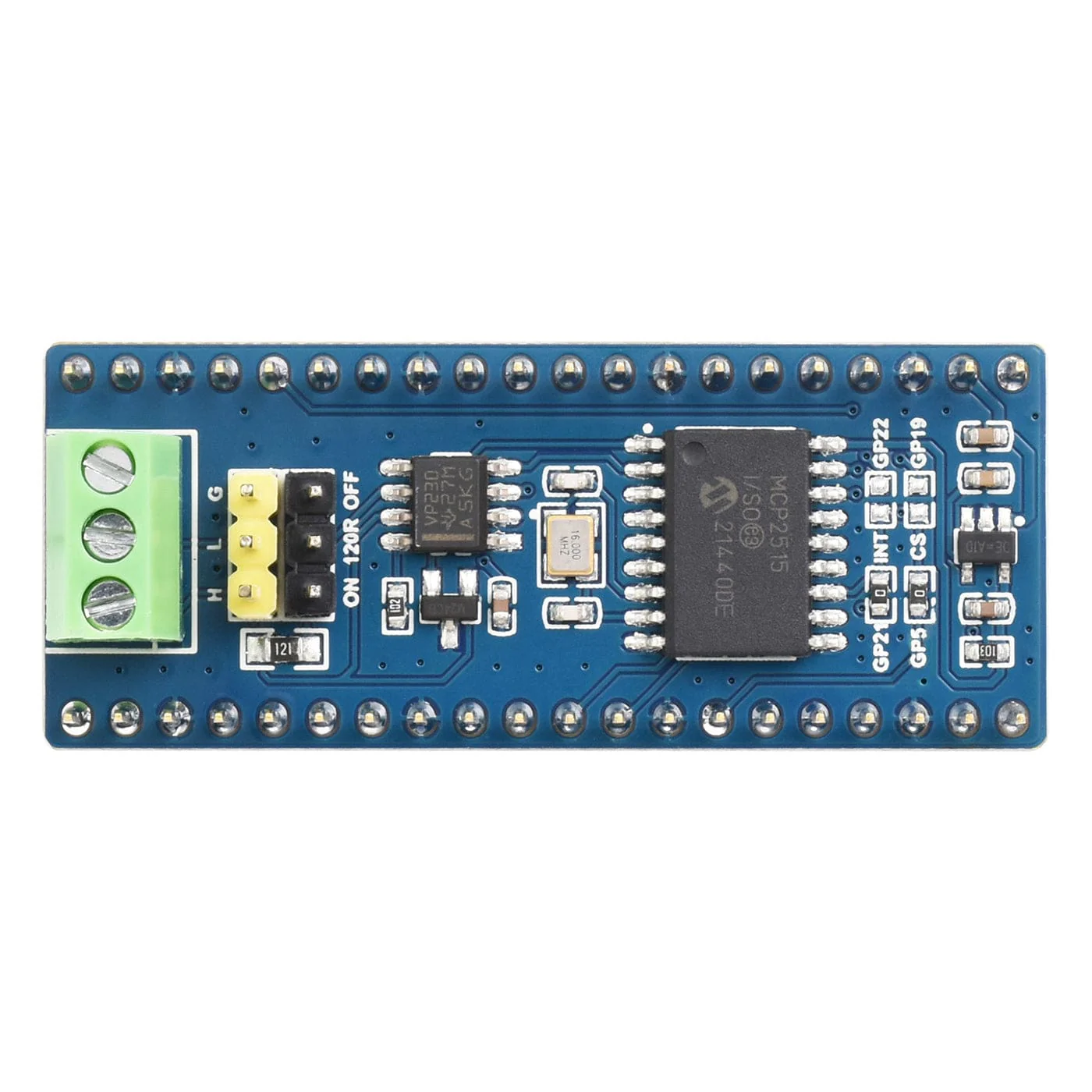

What's Onboard?

1) RT9013-33GB
 - 500mA low dropout, low noise, ultra-fast LDO
2) MCP2515
 - Second generation standalone CAN controller
3) SN65HVD230DR
 - 3.3V CAN transceiver
4) Terminal resistor selection
 - ON: connected to 120R matching resistor
 - OFF: disconnected from 120R matching resistor
5) CAN bus terminal

Specifications

Operating Voltage	3.3V~5V
Can Controller	MCP2515
Can Transceiver	SN65HVD230DR
Communication Bus	SPI
Baudrate	5K~1000Kbps
Dimensions	52 x 21mm

Package Contents

• 1x CAN Bus Module (B) for Raspberry Pi Pico

Raspberry Pi Pico not included.

Resources

• Product Wiki
• Schematic

Pinout
