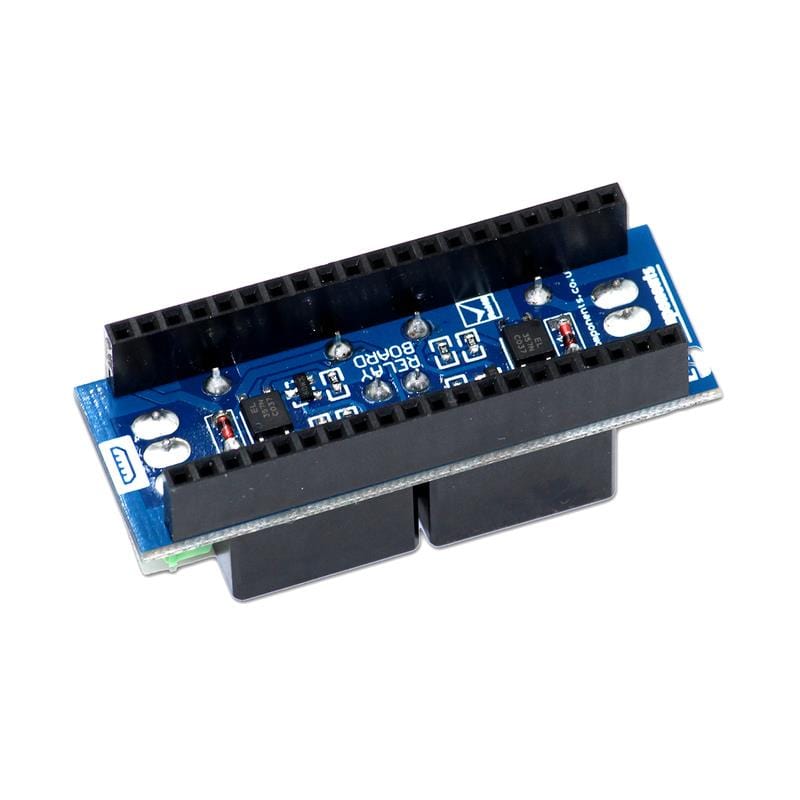

The Dual Channel Relay HAT for the Raspberry Pi Pico is a Two-Channel high-quality relay supporting loads of 7A/ 250 VAC and 10A/ 30 VAC with a switching voltage of (VAC) 10A/ 250V and (VDC) 10A/ 30V.

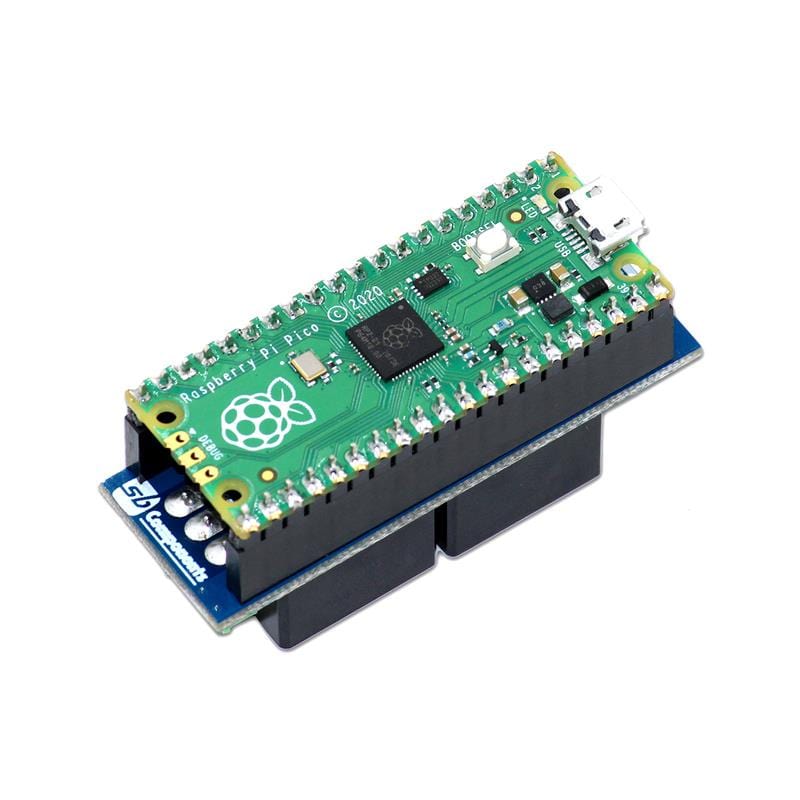

The Pico HAT comes with a female pin header to easily connect with Raspberry Pi Pico (your Pico will need male headers). The high-quality components combined with an OptoIsolated outputs make the Dual-Channel Relay HAT a reliable and efficient solution to switching loads in your Pico projects.

The design is compact with clear pin labelling and additional functional information. Single relay version also available!

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our pre-soldered Picos).

Features

• Two high-quality relays supporting loads of 7A/ 250 VAC and 10A/ 30 VAC
• Standard Pico 40-pin header layout (female)
• Compatible with Raspberry Pi Pico
• Indication LED for relay on/off status
• Optoisolated

Resources

• Product GitHub
• User Manual
• Beer brewing Pico project, using this board to control a heater and cooler/fan!(thanks to Paulo for the link and interesting project example)

Pinout

Specifications

• Channels: 2
• Operating Voltage: 5V
• Switching Voltage (VAC): 7A / 250V
• Switching Voltage (VDC): 10A / 30V
• Dimensions: 21mm x 58mm
