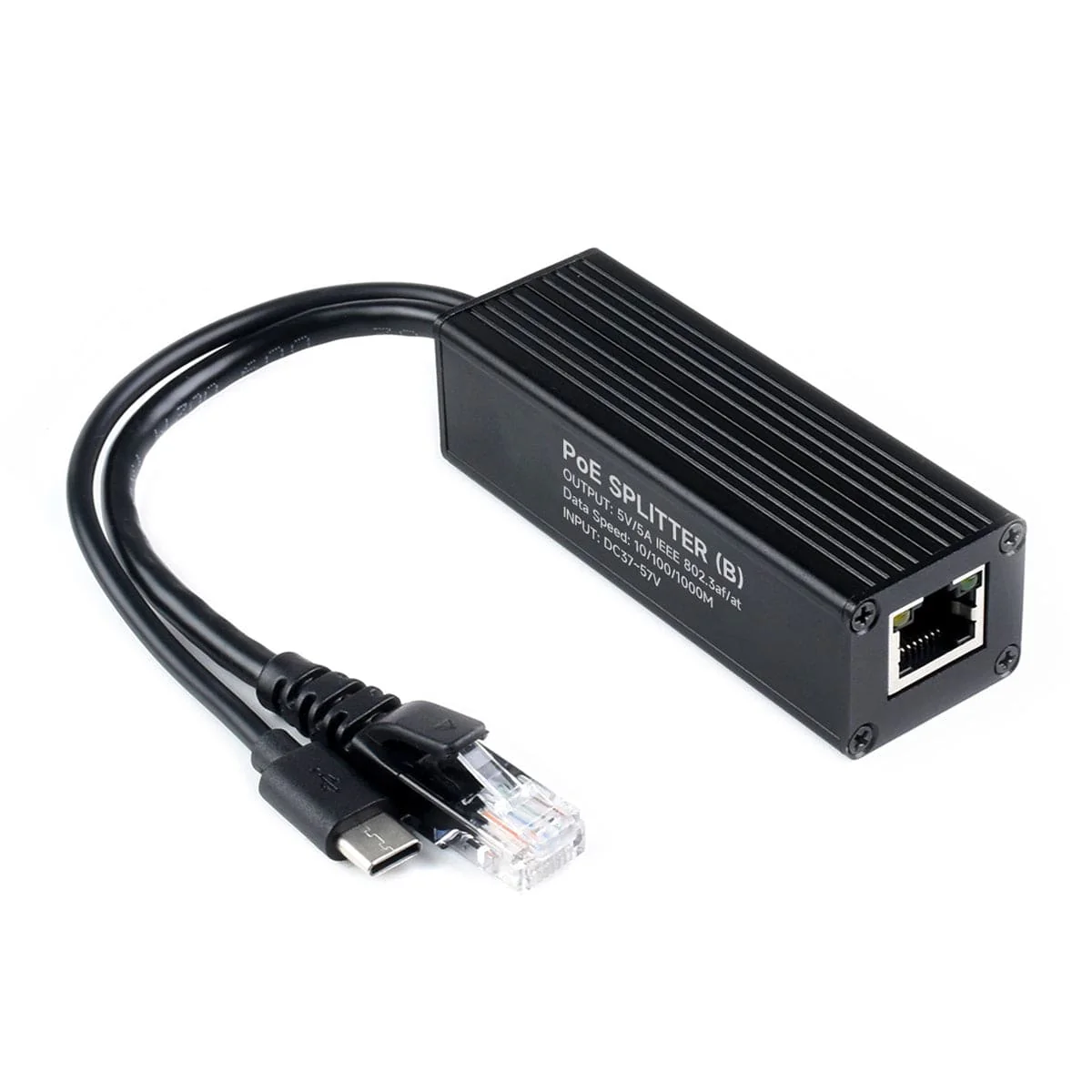

This PoE Splitter provides both power and data connectivity over a single ethernet cable. There's a 5V 5A (25W) USB Type-C power output for powering 5V devices such as Raspberry Pi 5 and it supports 10/100/1000Mbps auto-negotiation ethernet.

The splitter has an MPS control chip and an isolated Switching Mode Power Supply (SMPS) to protect the device from power fluctuations. It also has an aluminium alloy case for protection and provides heat dissipation.

The adapter is IEEE802.3af/at compliant and accepts 37V ~ 57V via a power-injected Ethernet cable.

Features

• MPS control chip solution, high-efficiency, high-safety, stable-performance

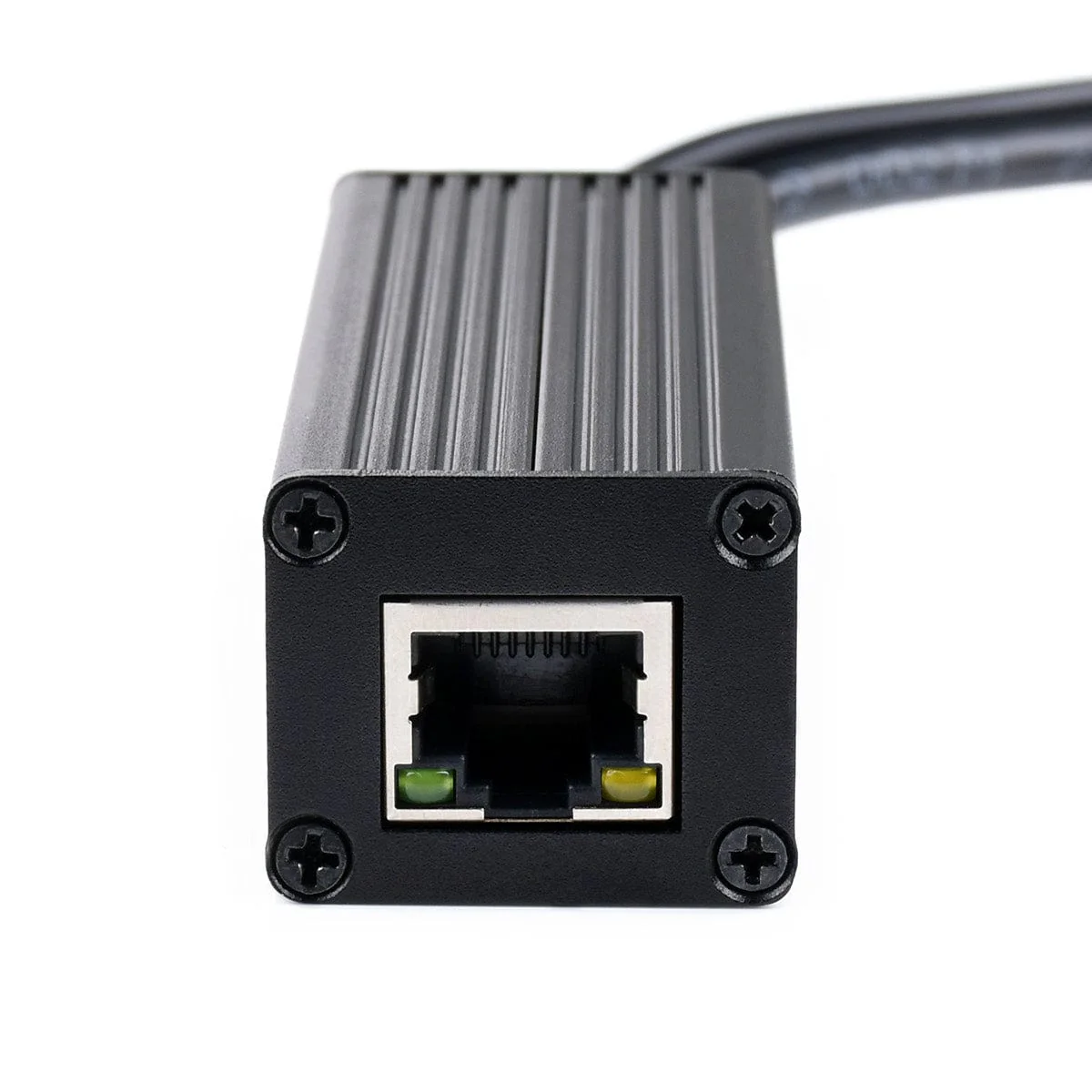

• 10/100/1000Mbps auto-negotiation Ethernet port
• Supports 802.3af/at-compliant PoE standard
  • Compatible with Raspberry Pi PoE+ Injector
• Adopts isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
• 5V DC output, suitable for powering and networking Raspberry Pi and other small-scale network devices
• Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation

Specifications

Power Supply	Supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
PoE Input Voltage	37V ~ 57V
Power Output	5V 5A (MAX)
Cable	Cat-5 UTP
Standard	IEEE 802.3 af/at PoE Ethernet
Data Rate	10/100/1000Mbps
LED Indicator	PoE power input indicator
Dimensions	102.5 x 29.6 x 24.8mm (L x W x H)
Operating Temperature	-40℃ ~ 85℃

Connection Example - Raspberry Pi and Switch

Note: Raspberry Pi and Switch are NOT included

Package Contents

• 1x USB-C Gigabit PoE Splitter
