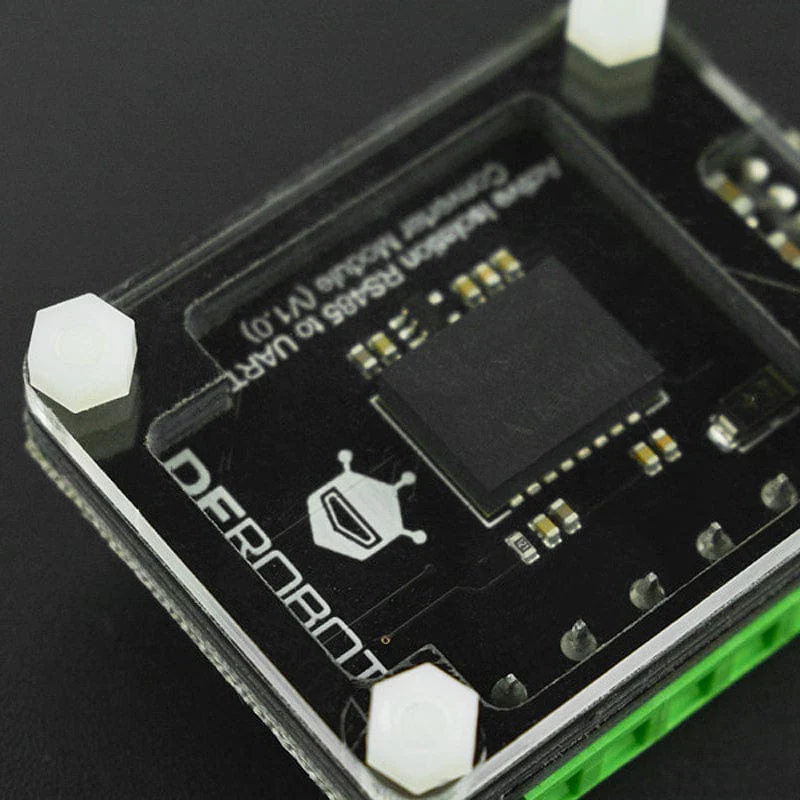

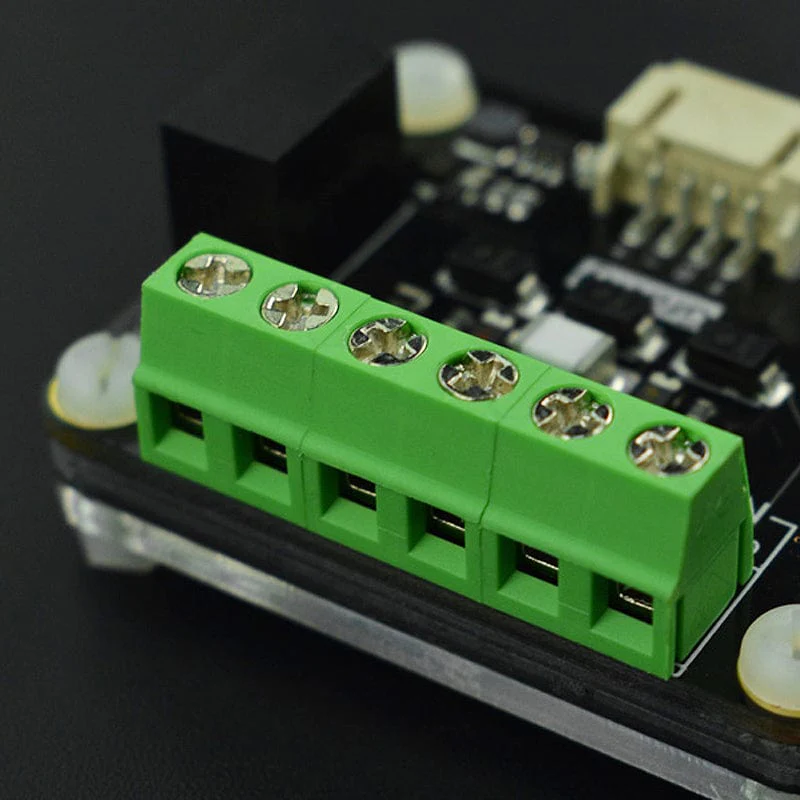

Gravity: Active Isolated RS485 to UART Signal Converter Module
This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS.
Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety, etc.
It can be applied to various industrial sensors, industrial control equipment or applications that require RS485 signal conversion.
Features
- Fast communication speed
- Stable and reliable performance
- High safety
Specifications
- Power Supply Voltage: 3.3~5V
- Communication baud rate up to 1M bps
- Up to 12V-2W power output (output current is about 160mA)
- Isolation voltage 3000 VDC
- Bus electrostatic protection capacity is up to 15kV
- 1/8 unit load, bus load capacity up to 256 nodes
- Bus fail protection and bus drive short circuit protection
- Operating temperature range: -40°C to +105°C
Resources
Package Contents
- 1x Gravity: Active Isolated RS485 to UART Signal Converter Module
- 1x Gravity-4pin UART Cable
This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS.
Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety, etc.
It can be applied to various industrial sensors, industrial control equipment or applications that require RS485 signal conversion.
Features
- Fast communication speed
- Stable and reliable performance
- High safety
Specifications
- Power Supply Voltage: 3.3~5V
- Communication baud rate up to 1M bps
- Up to 12V-2W power output (output current is about 160mA)
- Isolation voltage 3000 VDC
- Bus electrostatic protection capacity is up to 15kV
- 1/8 unit load, bus load capacity up to 256 nodes
- Bus fail protection and bus drive short circuit protection
- Operating temperature range: -40°C to +105°C
Resources
Package Contents
- 1x Gravity: Active Isolated RS485 to UART Signal Converter Module
- 1x Gravity-4pin UART Cable
Original: $19.20
-65%$19.20
$6.72Description
