The microwave sensor applies the Doppler effect to detect moving objects using microwaves. This differs from the method used by a regular infrared (IR) sensor as microwave is sensitive to a variety of objects that are microwave-reflective, and its sensor readings are not affected by the ambient temperature.

This type of microwave sensor is widely used in industrial, transportation and civil applications such as measuring vehicle speed, liquid levels, automatic door motion detection, automatic washing, production line material detection and car reversing sensors etc.

The microwave detection method has the following advantages compared to other methods:

1. Non-contact detection
2. Readings not affected by temperature, humidity, noise, air, dust or light - suitable for harsh environments
3. Strong resistance to radio frequency interference
4. Low output, unharmful to human
5. Wide detection range and high velocity
6. Supports non-living object detection

Connection Example - DFRduino UNO R3

• Working Voltage: 5V + 0.25V
• Working Current (CW): 60mA max., 37mA typical

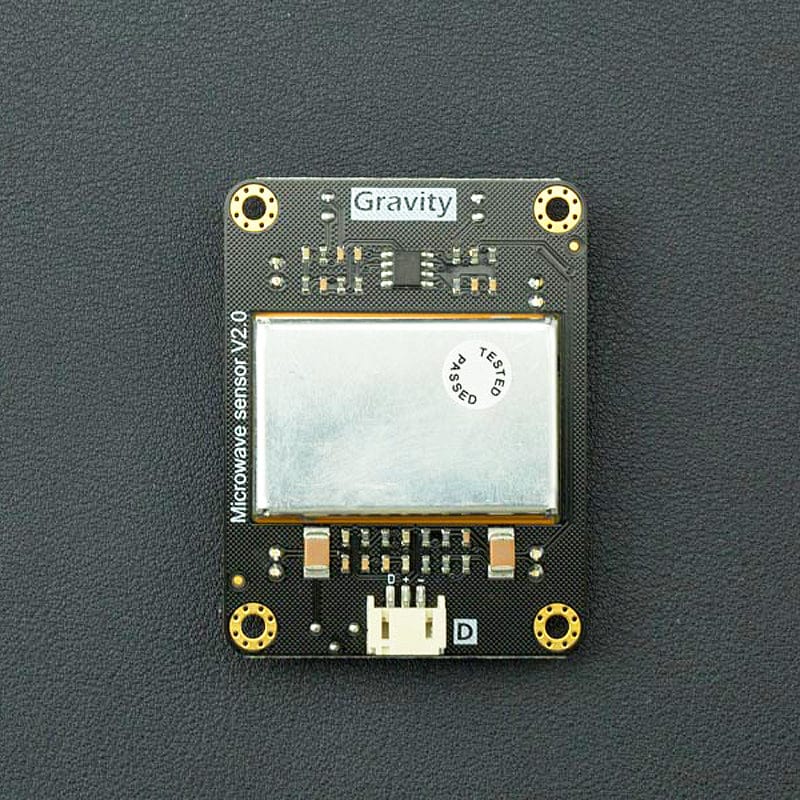

• Interface: Gravity 3-Pin interface（Digital）

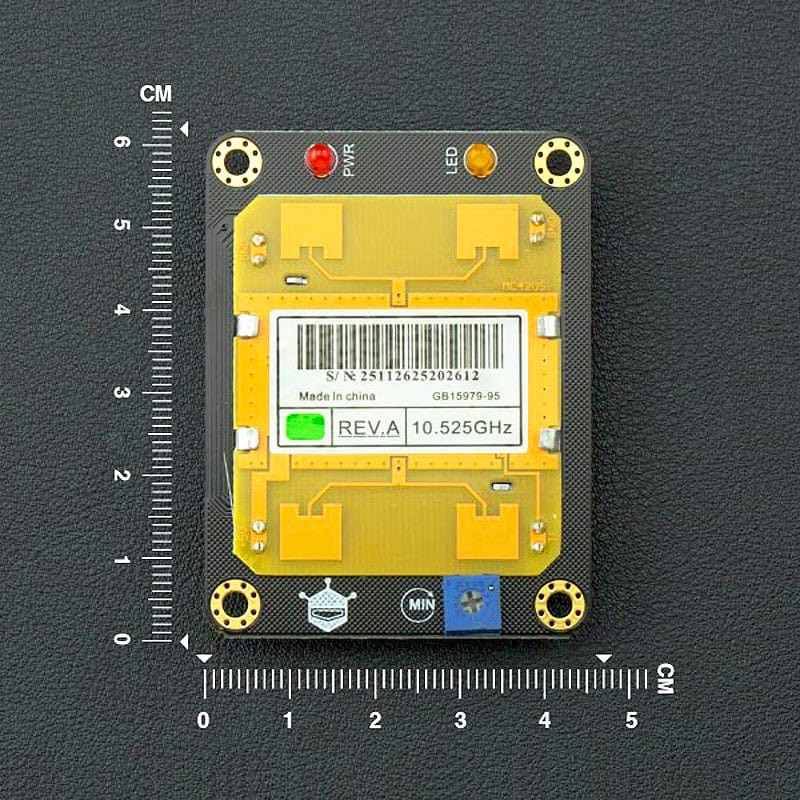

• Size: 48.5 x 63mm
• Emission parameters:
  • Detection Distance: 2-16M continuously adjustable
  • Emission Frequency: 10.525 GHz
  • Precision Frequency Setting: 3MHz
  • Output Power (minimum): 13dBm EIRP
  • Harmonic Emission: < -10dBm
  • Average Current (5%DC): 2mA typ
  • Pulse Width (Min.): 5uSec
  • Load Cycle (Min.): 1%
• Reception Parameters:
  • Sensitivity:(10dB S/N ratio) 3Hz to 80Hz
  • Bandwidth: -86dBm
  • 3Hz to 80Hz Bandwidth Clutter: 10uV
  • Antenna Gain: 8dBi
  • Vertical 3dB Beam Width: 36 degrees
  • Level 3dB Beam Width: 72 degrees

• Product Wiki

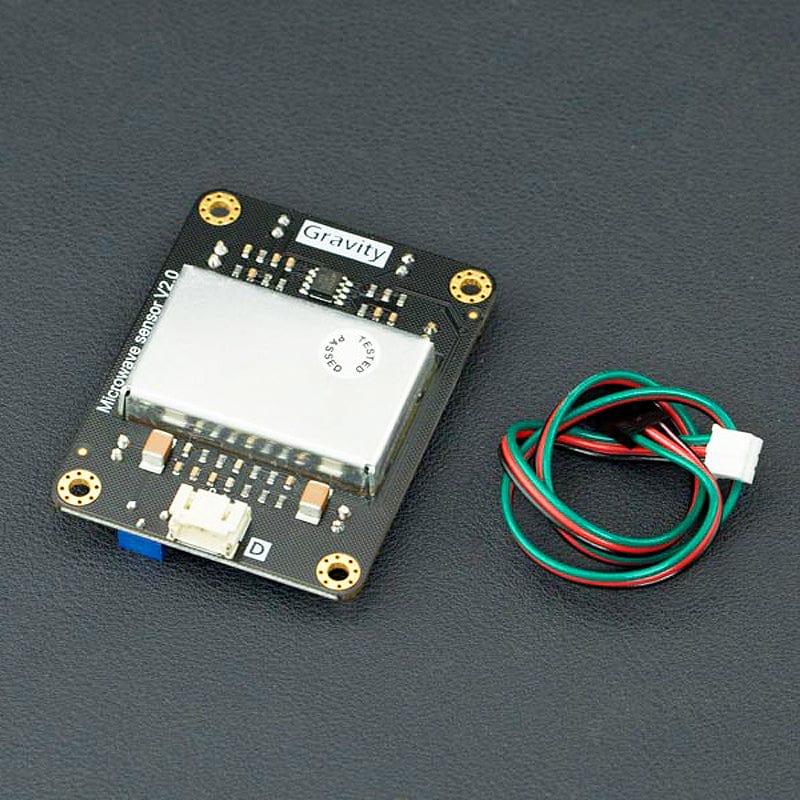

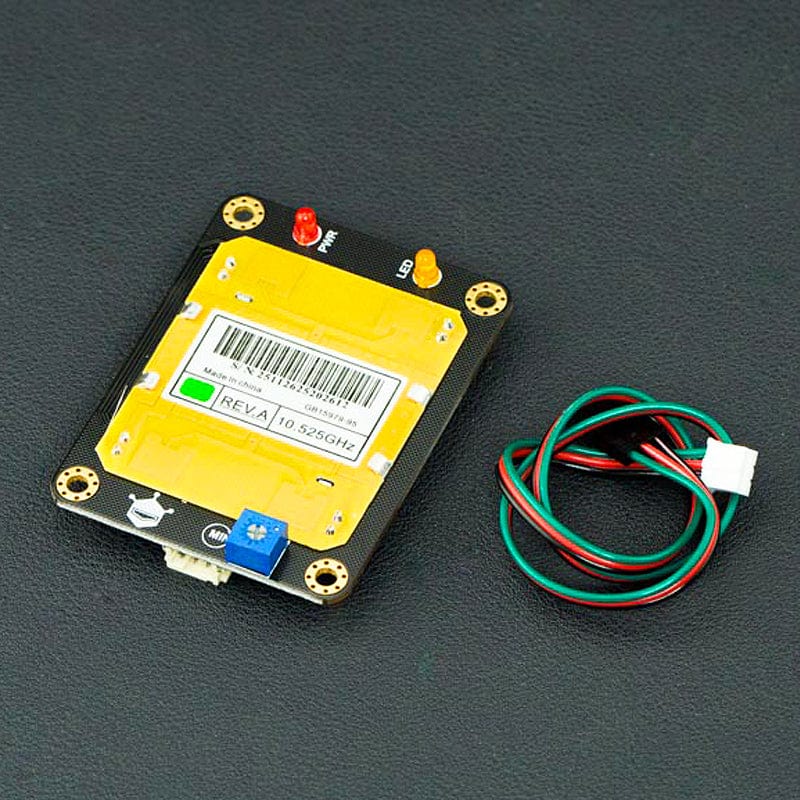

• 1x Microwave Sensor

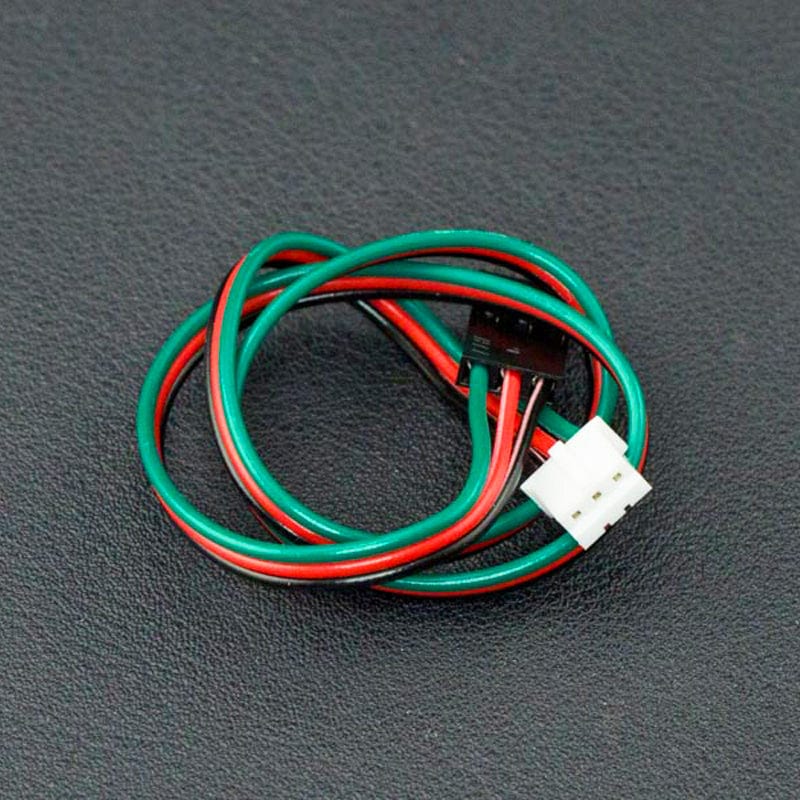

• 1x Digital Sensor Cable
