Gravity: TCS3430 Tristimulus Color Sensor
TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company. It features advanced digital ambient light sensing (ALS) and CIE 1931 tristimulus color sensing (XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense color. These measurements are used to calculate chromaticity, illuminance, and colour temperature, all of which are used to support various potential applications.
You can learn more about the CIE 1931-XYZ system here: https://en.wikipedia.org/wiki/CIE_1931_color_space
Features
- XYZ Tristimulus Filter
- Capable of ±10% illuminance and correlated color temperature accuracy
- Wide dynamic range and high sensitivity
- Programmable gain and integration time
Specifications
- Power Supply: 3.3V~5V
- Operating Current: ＜5mA
- LED Operating Current: ＜15mA
- I2C Address: 0x39
- Operating Temperature Range: -30°C~85°C

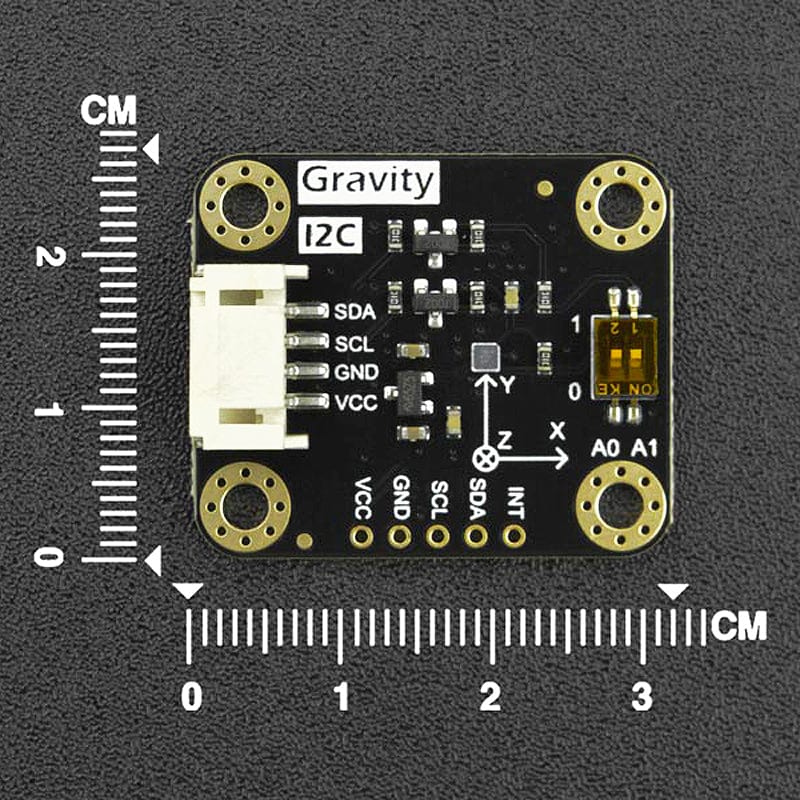

- Dimension: 22 x 27mm
Resources
Package Contents
- 1x Gravity: TCS3430 Tristimulus Colour Sensor

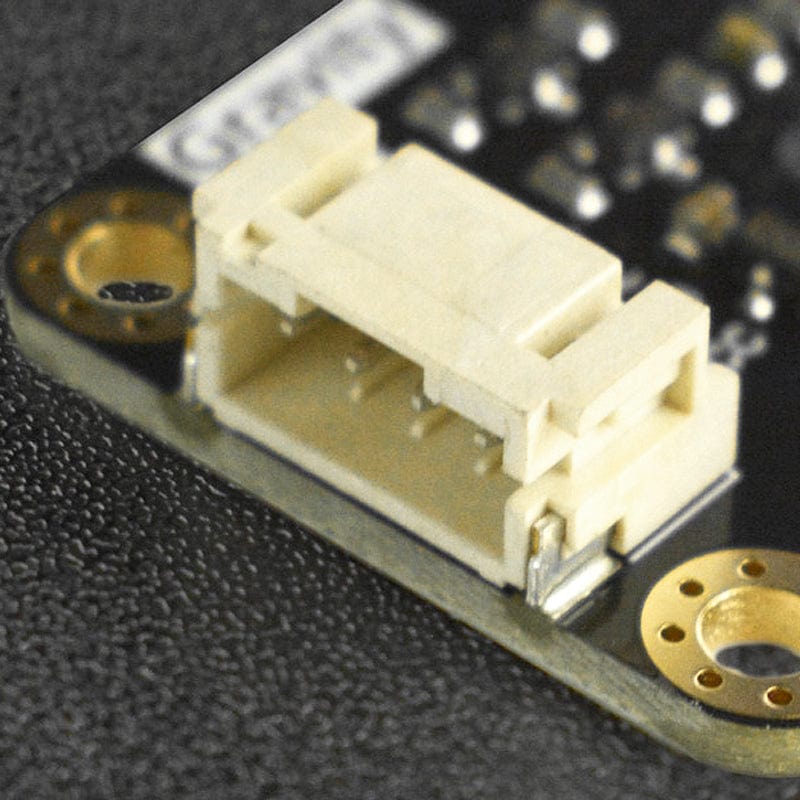

- 1x Gravity-4P I2C/UART Sensor Connector
