Gravity: Voice Recorder Module

Product image 1
1 / 5

Gravity: Voice Recorder Module

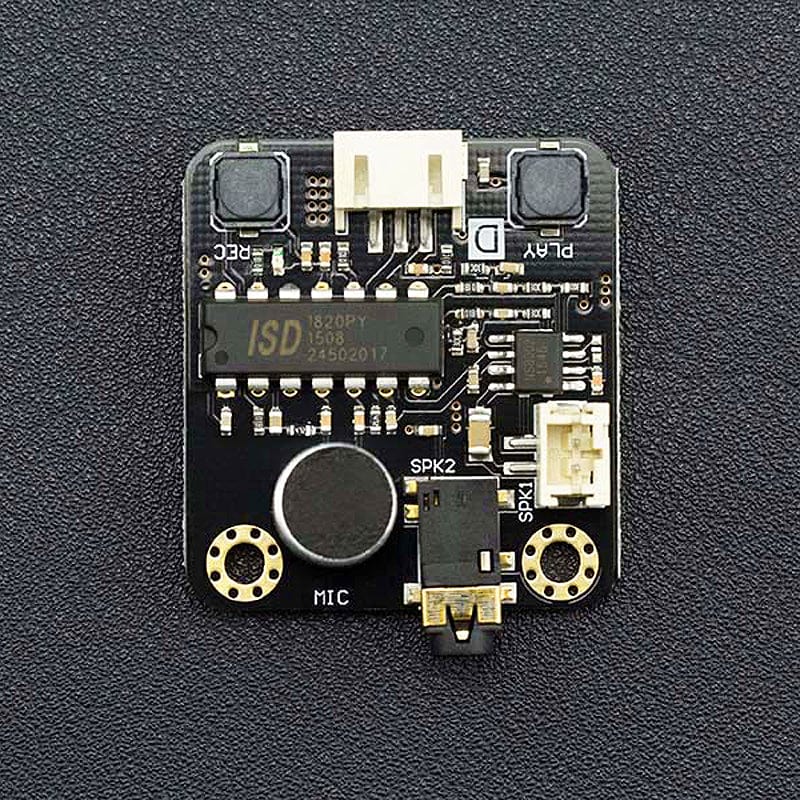

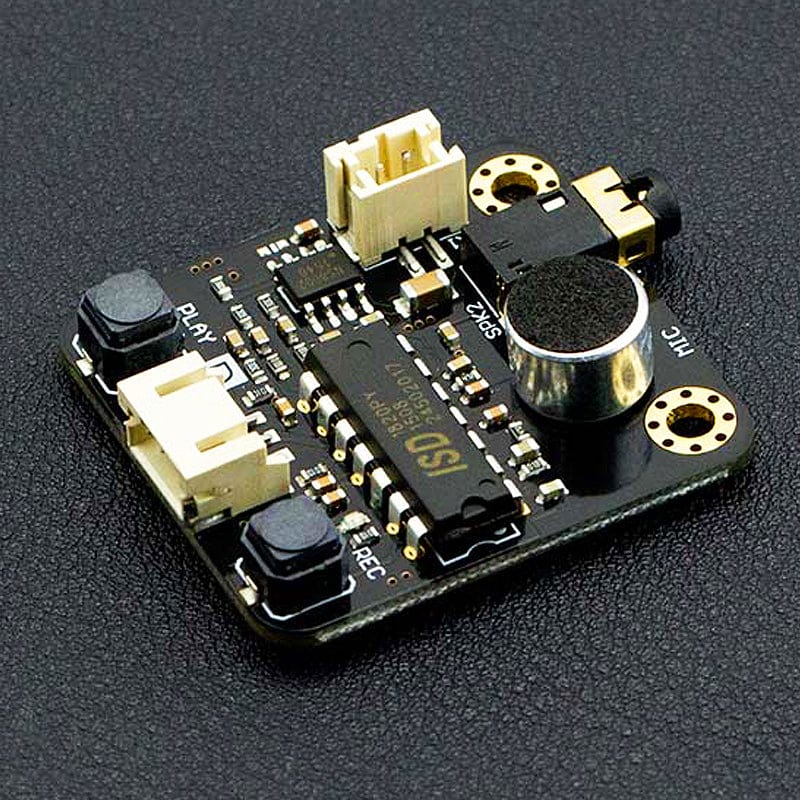

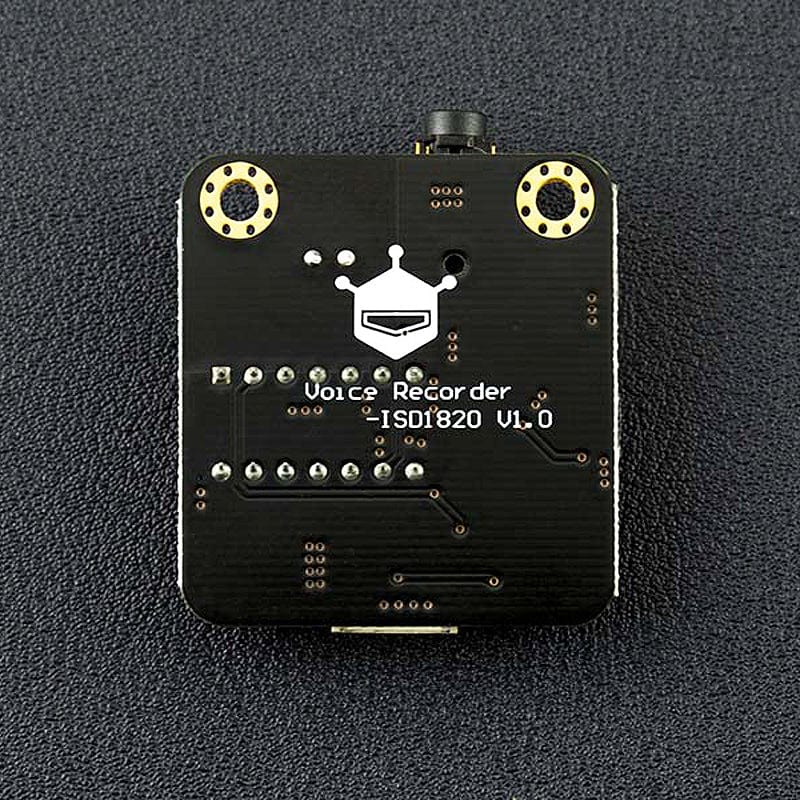

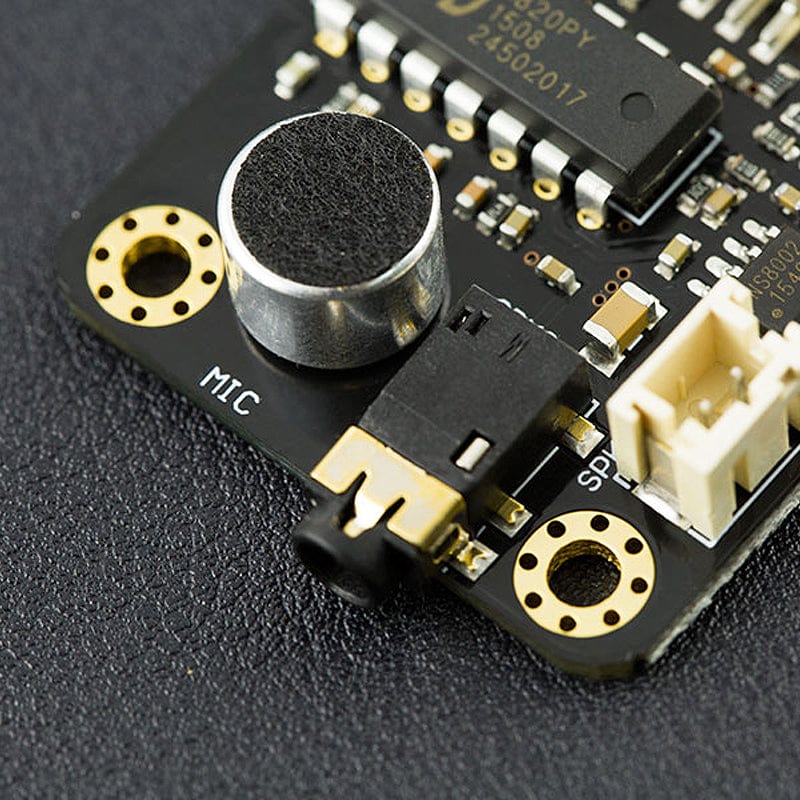

This is the latest voice recorder module with integrated record and play functions. Easily record your voice by pressing the record button, speaking and then releasing the button when finished. The module is able to playback 10 seconds in total. Connect an 8Ω 3W speaker or an external active speaker for voice output. The module also has a 3 pin digital interface so you can connect it to an Arduino compatible microcontroller as a playback trigger.

Connection Example - I/O Expansion Shield V7

Specifications

  • Operating voltage: 5V
  • Recording time: 10 seconds
  • Sampling frequency: 6.4KHz
  • Repeatable recording times: 100,000
  • Dimensions: 37 x 35 mm

Resources

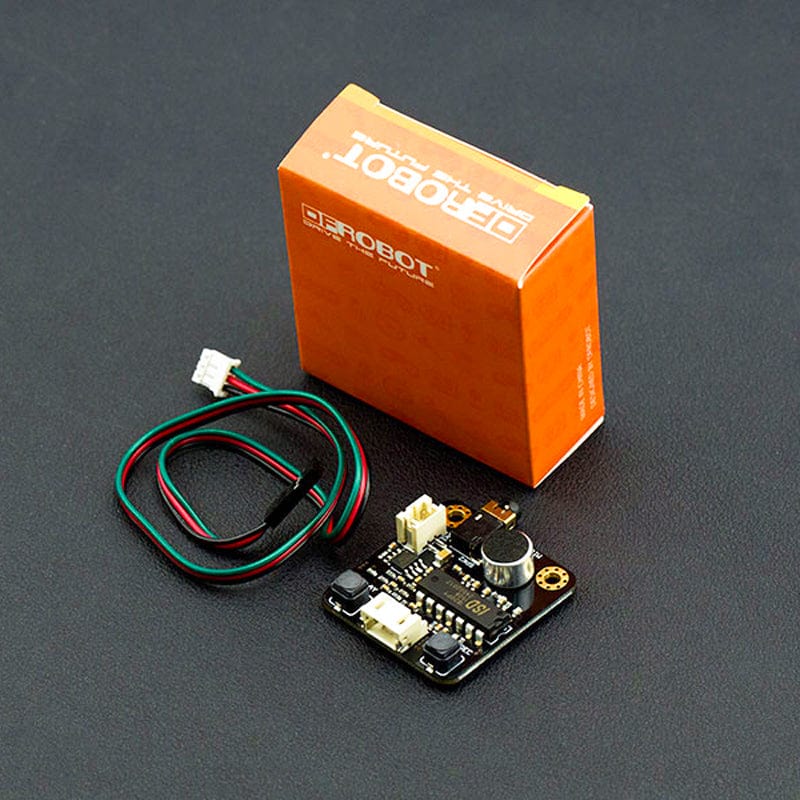

Package Contents

  • 1x Voice Recorder Module
  • 1x Gravity digital cable
This is the latest voice recorder module with integrated record and play functions. Easily record your voice by pressing the record button, speaking and then releasing the button when finished. The module is able to playback 10 seconds in total. Connect an 8Ω 3W speaker or an external active speaker for voice output. The module also has a 3 pin digital interface so you can connect it to an Arduino compatible microcontroller as a playback trigger.

Connection Example - I/O Expansion Shield V7

Specifications

  • Operating voltage: 5V
  • Recording time: 10 seconds
  • Sampling frequency: 6.4KHz
  • Repeatable recording times: 100,000
  • Dimensions: 37 x 35 mm

Resources

Package Contents

  • 1x Voice Recorder Module
  • 1x Gravity digital cable
$1.68

Original: $4.80

-65%
Gravity: Voice Recorder Module

$4.80

$1.68

Description

This is the latest voice recorder module with integrated record and play functions. Easily record your voice by pressing the record button, speaking and then releasing the button when finished. The module is able to playback 10 seconds in total. Connect an 8Ω 3W speaker or an external active speaker for voice output. The module also has a 3 pin digital interface so you can connect it to an Arduino compatible microcontroller as a playback trigger.

Connection Example - I/O Expansion Shield V7

Specifications

  • Operating voltage: 5V
  • Recording time: 10 seconds
  • Sampling frequency: 6.4KHz
  • Repeatable recording times: 100,000
  • Dimensions: 37 x 35 mm

Resources

Package Contents

  • 1x Voice Recorder Module
  • 1x Gravity digital cable
