HANNspree HC225HFB 21.45" Full HD Monitor [Discontinued]
This is a great-value full HD LED monitor for getting the full desktop experience out of your Raspberry Pi.
The 21.45", 16:9 full-HD (1920x1080) screen is LED-backlit, lowering power consumption and your energy bill at the same time.

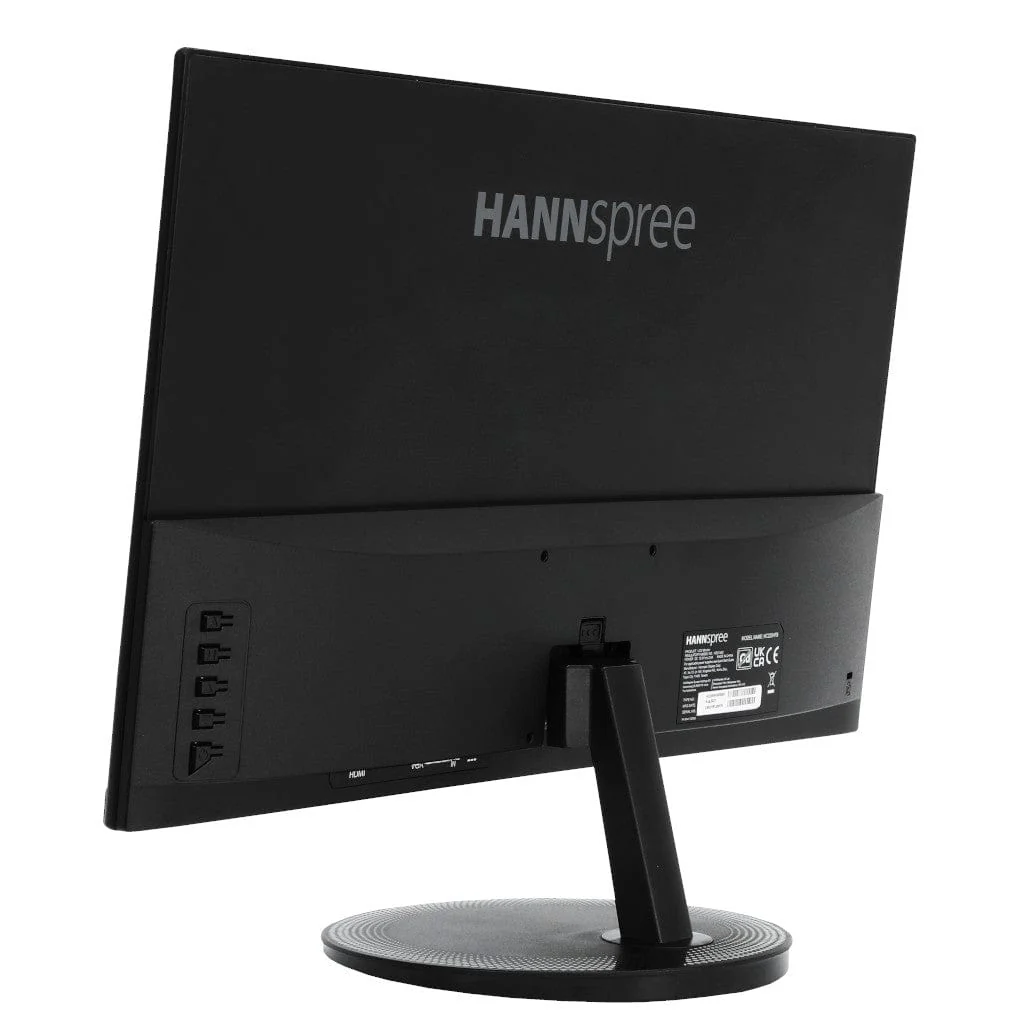

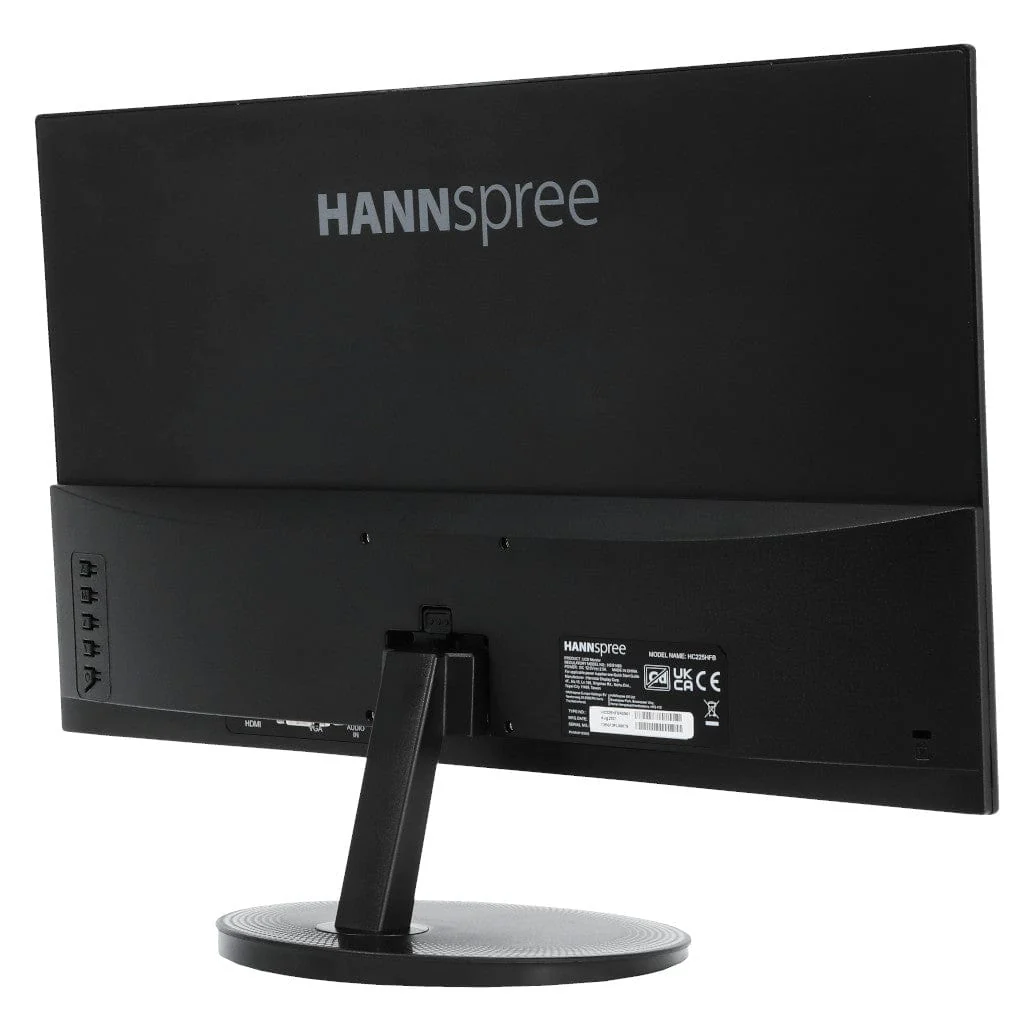

The monitor features built-in stereo speakers, an HDMI and VGA port to the rear, 3.5mm line-in jack and 75mm VESA mounting points - great for our laser-cut cases used with our VESA plate.
A 1.5m HDMI cable is included in the box which will plug straight into a Raspberry Pi 3/3A+. Combine with a mini-HDMI adapter to use with a Raspberry Pi Zero. To use this screen with a Raspberry Pi 4 or Raspberry Pi 5, you'll need a micro-HDMI cable - available here.
Model Change
This 21.45" screen has now changed model to the HC225HFB as the previously stocked HL225HPB and HE225HPB is no longer manufactured.
There is a very slight difference in screen colour between the monitor versions. If you have a HE225HPB or HL225HPB and are coming back for a second monitor, we do not recommend using the previous model alongside the new model.
Features
- 21.45” 16:9 LED Backlight Monitor
- 1920 x 1080 Full HD 1080P
- 178°/178° (H/V) Ultra-Wide Viewing Angle
- Input: HDMI x1, VGA x1, Audio line-in x1
- Built-in Stereo Speakers
- Tilt and Wall-Mountable (75mm VESA)
- Low Power Consumption
- Multi-Video Modes
- Eco-Friendly
- Flicker-Free
Specification
| Display Size | 54.48cm / 21.45″ Diagonal |
| Panel Type | TFT – LED Backlight |
| Aspect Ratio | 16:9 |
| Resolution (H x V) | 1920 x 1080 Full HD |
| Brightness | 300cd/m² |
| Contrast (Typ.) | 3.000:1 (Typical) |
| Contrast (Active) | 10.000.000:1 (Active) |
| Viewing Angle L/R; U/D | 178°H / 178°V (CR > 10) |
| Response time | 5 msec (with OD) |
| Pixel Pitch | 0,2493 (H) x 0,241 (V) mm |
| Panel Surface | Anti-Glare, Haze level 25%, Hard coating 3H |
| Display Colors | 16.7M Colors |
| Horizontal Frequency | 30 ~ 83 kHz |
| Vertical Frequency | 56 ~ 75 kHz |
| Max Display Frequency | 1920 x 1080 @ 60Hz |
| Input 1 | D-Sub (VGA) |
| Input 2 | HDMI (v1.4) |
| Input 3 | Audio In |
| Speakers | 2W x 2 |
| Power Consumption | On: 12W; Stand-by: 0,5W; Off: 0,3W |
| AC Power Range | AC 100 ~ 240 Volt; 50 ~ 65 Hz |
| Product Dimensions | 494 x 198 x 360 mm (W x D x H) - with stand |
| 494 x 31.8 x 286 mm (W x D x H) - without stand | |
| Packing Dimensions | 516 x 96 x 345 mm (W x D x H) |
| Net / Gross Weight | 2.23 Kg / 3.15 Kg |
| VESA Mounting | 75 x 75 mm |
| Monitor Stand | Fixed Stand |
| Tilt / Kensington Lock | -5° ~ +15° / Yes |
| Pivot / Swivel | No / No |
| Controls | Auto (Input) / Menu (Enter) / ^ (Bri) / v (Vol) / Power |
| Colour | Normal, Cool, Warm, User Modes |
| Preset Mode | PC, Movie, Game, Eco Modes |
| On-Screen Display | 7 OSD Languages |
| Flicker-Free | Yes + Blue light mode |
| Accessory | External power supply, HDMI Cable (1.5m); Warranty Card; Quick Start Guide |
Resources
Revision History
- As of 10/01/2024 we are now shipping a revised model number, HC225HFB
