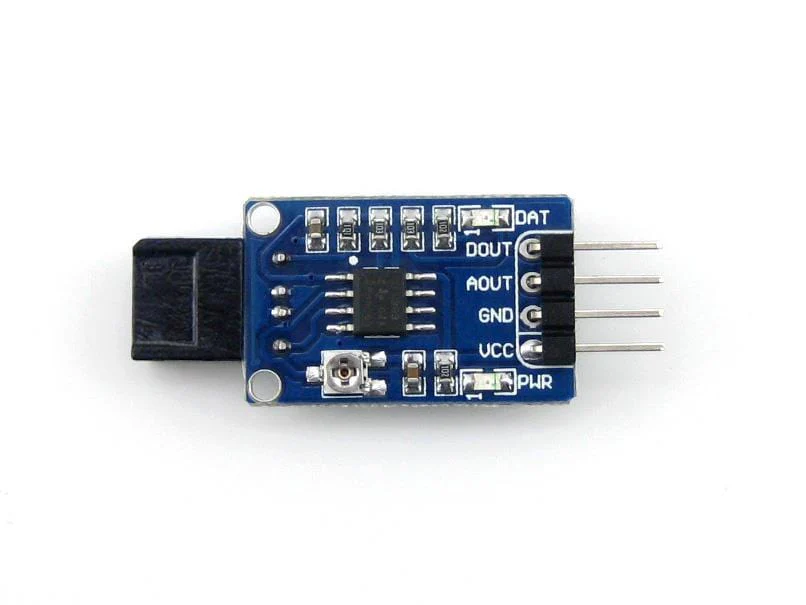

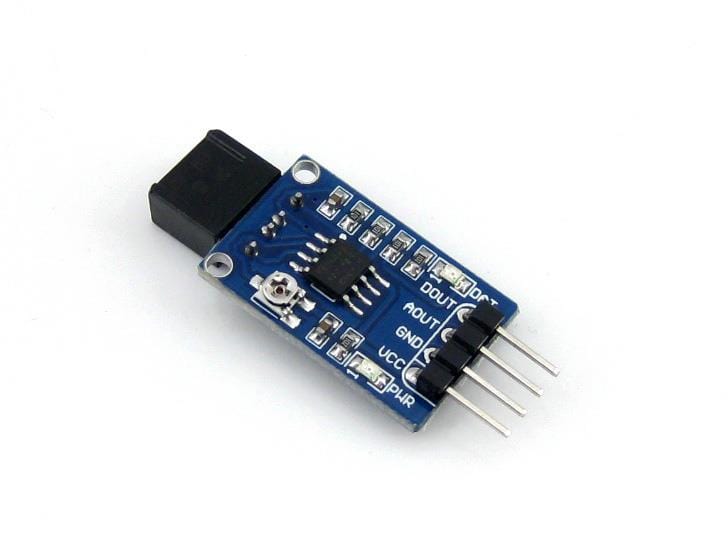

Infrared Reflective Sensor
Detect lines and other objects with this infrared reflective sensor from Waveshare!
Features
- Reflective infrared Transceiver
- Features wide-range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
- Sensor only - no cable
Specifications
- Power: 3.0V ~ 5.3V
- Dimension: 25mm * 15.9mm
- Mounting hole size: 2.0mm
Resources
In the case of working with an MCU:
- VCC ↔ 3.0V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Detect lines and other objects with this infrared reflective sensor from Waveshare!
Features
- Reflective infrared Transceiver
- Features wide-range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
- Sensor only - no cable
Specifications
- Power: 3.0V ~ 5.3V
- Dimension: 25mm * 15.9mm
- Mounting hole size: 2.0mm
Resources
In the case of working with an MCU:
- VCC ↔ 3.0V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
$3.80
