Intelligent Rain Detection Module
This smart rain sensor offers a fast way to detect rainfall changes on glass in real-time free from effects like sunlight, dust, leaves etc, and feeds back information (no rain, light rain, moderate rain, or heavy rain) to users.

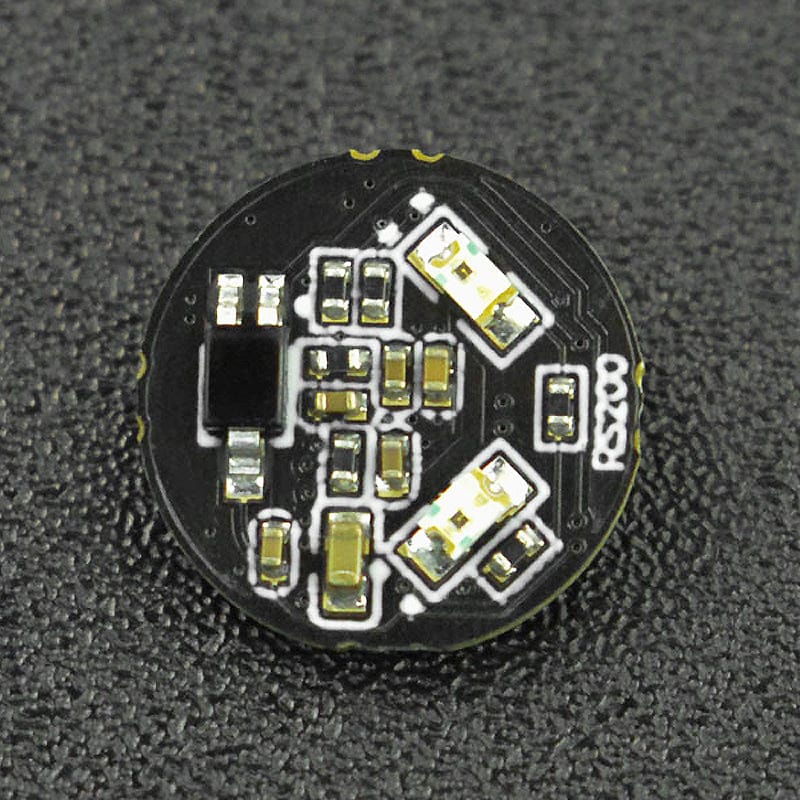

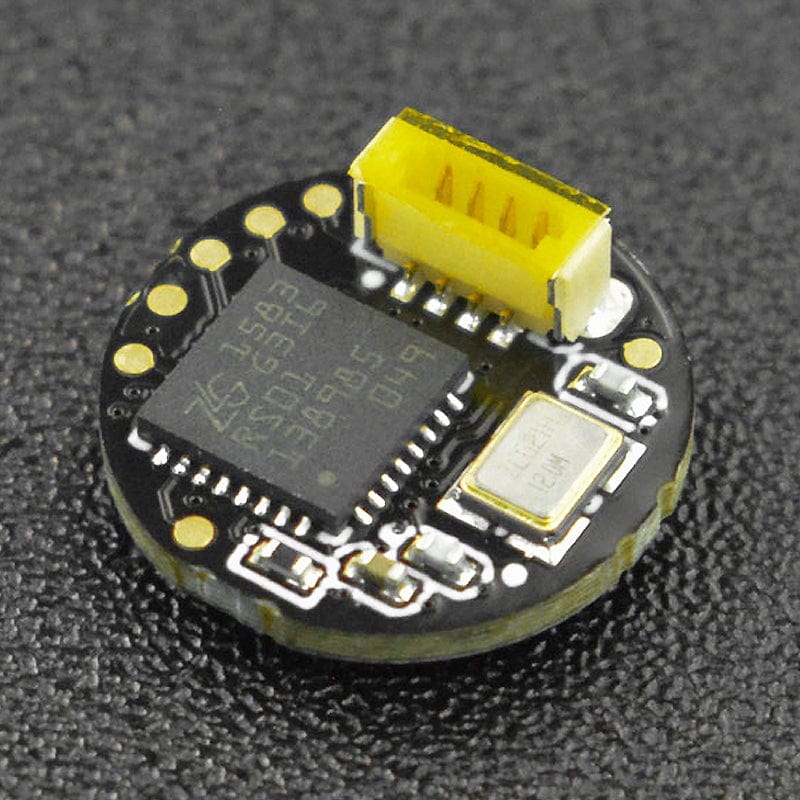

The module comes with a tiny body with a diameter of about 12.5mm. It can be used in security monitoring, smart home, smart agriculture and so on. This small sensor can be easily embedded in projects even with strict space limits like box cameras and speed dome cameras.
The sensor can achieve accurate real-time rainfall detection in any rainfall environment, and its built-in optical algorithm can intelligently filter ambient factors like sunlight, dust, leaves, etc., to ensure precise rainfall data collection in complex conditions. It gives feedback about rainfall changes like light, moderate or heavy rain.
It is equipped with functions like ambient light detection and temperature detection that can monitor internal device temperature. With the combination of rainfall, ambient and internal temperature, this sensor helps users build up smart, comprehensive, and cost-effective rainfall detection applications.
The sensor supports rainfall detection sensitivity adjustment for use in different rainfall and environments. Also, it has a low power mode that reduces power consumption, greatly extending module service life.
This module is mainly used to detect rainfall on the surface of windshield glass and send rainfall information (no rain, light rain, moderate rain, and heavy rain) to the camera host. Then camera host can control wipers to get rid of the raindrops on the windshield to ensure a clear view for the camera in rainy conditions. So, these smart rain detection modules are very suitable for smart doors or windows, smart windshield wipers, and so on.
Features
- Can achieve accurate real-time rainfall detection in any rainfall environment
- Equipped with functions like ambient light detection and temperature detection
- Supports rainfall detection sensitivity
Specifications
- Communication: UART
- Serial Communication Rate: 115200 bps
- Voltage: 3.3V
- Operating Current: ＜50mA
- Temperature Range: -40℃~85℃
- Dimension: diameter about 12.5±0.15mm
Package Contents
- 1x Intelligent Rain Detection Module
- 1x Adapter Cable
Resources
Revision History
As of 21/08/2024 you may receive a version with a change to the components on the PCB, however DFRobot have confirmed this has no impact on functionality and performance.
This smart rain sensor offers a fast way to detect rainfall changes on glass in real-time free from effects like sunlight, dust, leaves etc, and feeds back information (no rain, light rain, moderate rain, or heavy rain) to users.
The module comes with a tiny body with a diameter of about 12.5mm. It can be used in security monitoring, smart home, smart agriculture and so on. This small sensor can be easily embedded in projects even with strict space limits like box cameras and speed dome cameras.
The sensor can achieve accurate real-time rainfall detection in any rainfall environment, and its built-in optical algorithm can intelligently filter ambient factors like sunlight, dust, leaves, etc., to ensure precise rainfall data collection in complex conditions. It gives feedback about rainfall changes like light, moderate or heavy rain.
It is equipped with functions like ambient light detection and temperature detection that can monitor internal device temperature. With the combination of rainfall, ambient and internal temperature, this sensor helps users build up smart, comprehensive, and cost-effective rainfall detection applications.
The sensor supports rainfall detection sensitivity adjustment for use in different rainfall and environments. Also, it has a low power mode that reduces power consumption, greatly extending module service life.
This module is mainly used to detect rainfall on the surface of windshield glass and send rainfall information (no rain, light rain, moderate rain, and heavy rain) to the camera host. Then camera host can control wipers to get rid of the raindrops on the windshield to ensure a clear view for the camera in rainy conditions. So, these smart rain detection modules are very suitable for smart doors or windows, smart windshield wipers, and so on.
Features
- Can achieve accurate real-time rainfall detection in any rainfall environment
- Equipped with functions like ambient light detection and temperature detection
- Supports rainfall detection sensitivity
Specifications
- Communication: UART
- Serial Communication Rate: 115200 bps
- Voltage: 3.3V
- Operating Current: ＜50mA
- Temperature Range: -40℃~85℃
- Dimension: diameter about 12.5±0.15mm
Package Contents
- 1x Intelligent Rain Detection Module
- 1x Adapter Cable
Resources
Revision History
As of 21/08/2024 you may receive a version with a change to the components on the PCB, however DFRobot have confirmed this has no impact on functionality and performance.
