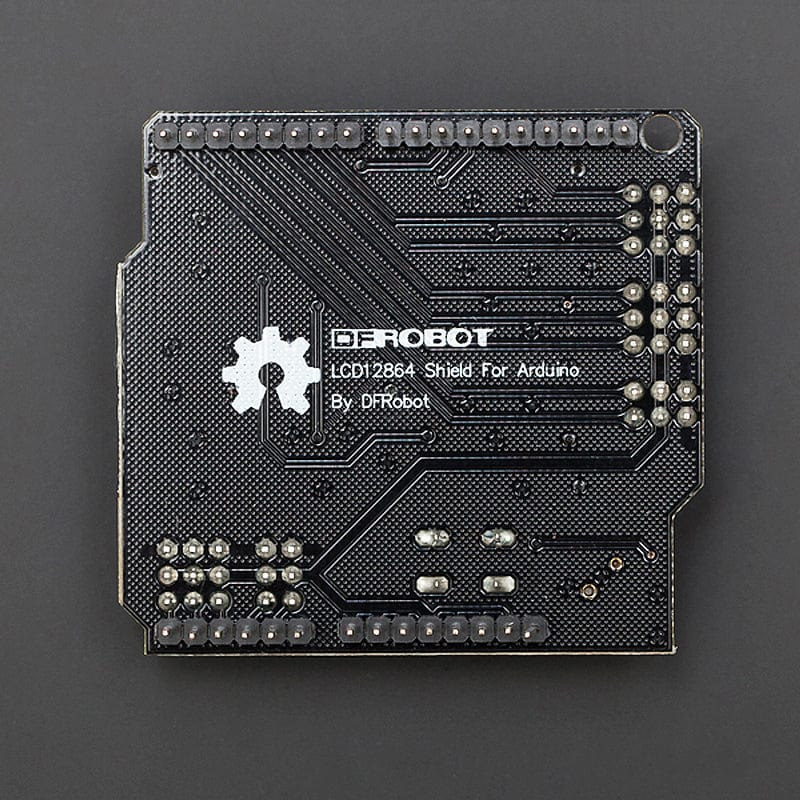

Gravity: LCD12864 Shield
This framed LCD12864 Shield with LED backlight is compatible with most Arduino Uno compatible controllers and supports English/Chinese and image display.
With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.
Specifications
- Power supply: 3.3V
- Pin used: D7, D8, D9, D10, D11, D13, A0
- Reset button
- 5-degree joystick (using Arduino Analog Pin 0)
- Backlit control (using Arduino Digital Pin 7)
- Extra 5 Analog pins & 8 Digital pins
- Size: 60 x 55 x 20mm
Resources
Tools
Package Contents
- 1x LCD12864 Shield
