LED Current Meter 10A (Red)

Product image 1
1 / 3

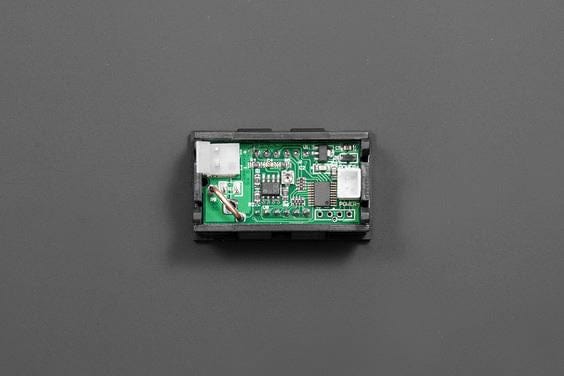

LED Current Meter 10A (Red)

This is a Red LED Current Meter capable of measuring and displaying current in a circuit up to 10A.

It measures 0-9.99A with 2% accuracy. Just apply four wires to your circuit and it will give you a current reading straight away. Easy to use and a good companion to any robot project.

Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter use a common-ground connection. So, the measurement must be cascaded after loads. It's better to isolate the power supply.

Specification

  • Measure Current: 0-9.99A DC
  • Power supply voltage: 4-30V DC
  • Display mode: 3-bit 0.56 Led digital tube
  • Accuracy:2%
  • Opening dimension: 45.5mm*26.5mm
  • Dimension: 48mm*29mm*21mm

Shipping List

  • 1x LED Current Meter 10A (Red)

This is a Red LED Current Meter capable of measuring and displaying current in a circuit up to 10A.

It measures 0-9.99A with 2% accuracy. Just apply four wires to your circuit and it will give you a current reading straight away. Easy to use and a good companion to any robot project.

Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter use a common-ground connection. So, the measurement must be cascaded after loads. It's better to isolate the power supply.

Specification

  • Measure Current: 0-9.99A DC
  • Power supply voltage: 4-30V DC
  • Display mode: 3-bit 0.56 Led digital tube
  • Accuracy:2%
  • Opening dimension: 45.5mm*26.5mm
  • Dimension: 48mm*29mm*21mm

Shipping List

  • 1x LED Current Meter 10A (Red)
$2.31

Original: $6.60

-65%
LED Current Meter 10A (Red)—

$6.60

$2.31

Description

This is a Red LED Current Meter capable of measuring and displaying current in a circuit up to 10A.

It measures 0-9.99A with 2% accuracy. Just apply four wires to your circuit and it will give you a current reading straight away. Easy to use and a good companion to any robot project.

Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter use a common-ground connection. So, the measurement must be cascaded after loads. It's better to isolate the power supply.

Specification

  • Measure Current: 0-9.99A DC
  • Power supply voltage: 4-30V DC
  • Display mode: 3-bit 0.56 Led digital tube
  • Accuracy:2%
  • Opening dimension: 45.5mm*26.5mm
  • Dimension: 48mm*29mm*21mm

Shipping List

  • 1x LED Current Meter 10A (Red)
