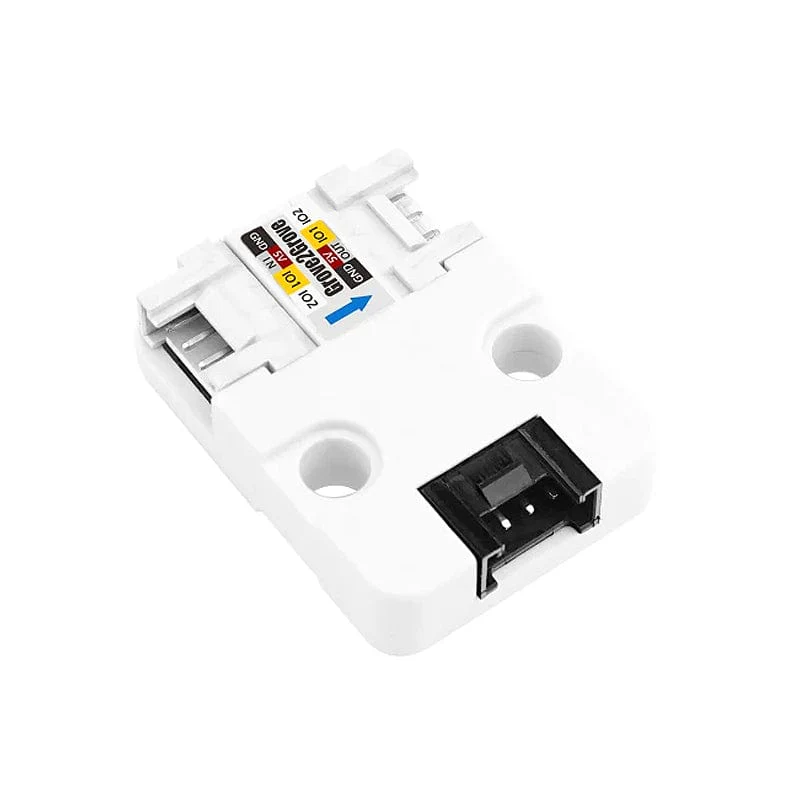

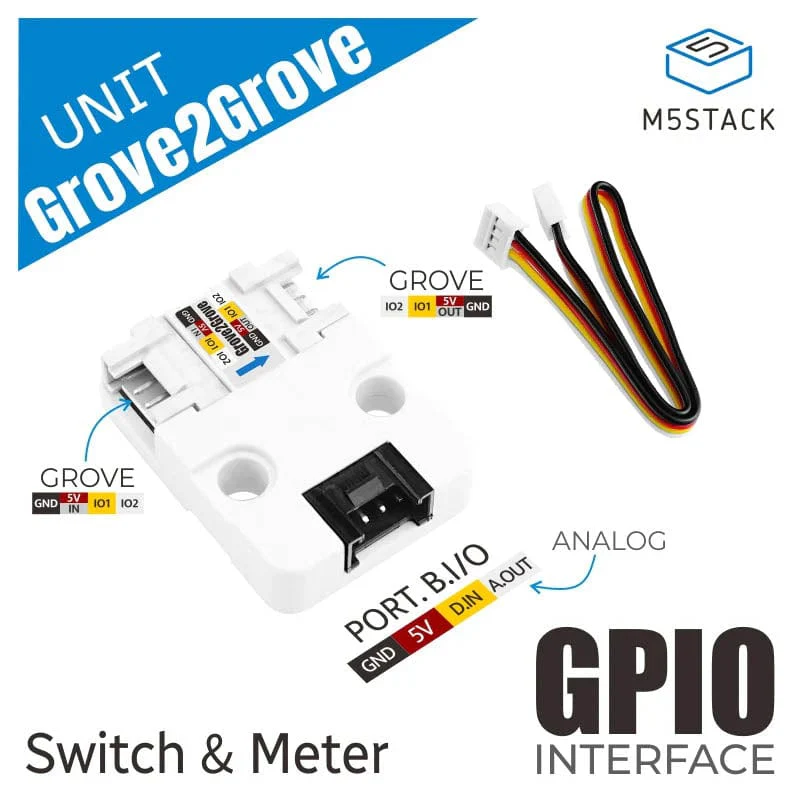

M5Stack Grove2Grove Expansion Unit
The Grove2Grove Expansion Unit from M5Stack is a Grove expansion Unit with On/Off Control + Current Meter functions. On/Off control adopts switch value, Current meter is 0 - 3.3V analog signal.
Features
- On/Off control: 5V/1A
- Current meter: 0~1000mA
Package Contents
- 1x Grove2Grove Expansion Unit
- 1x HY2.0 4-pin cable (20cm)
Specifications
| Net Weight | 5.0g |
| Gross Weight | 10.5g |
| Voltage | 5V |
| Switch Current | 1000mA |
| Circuit Voltage | 5V |
| Current Meter Range | 0~1000mA |
| Product Size | 32.04*24.01*8.05 mm |
| Package Size | 90*135mm |
Resources
The Grove2Grove Expansion Unit from M5Stack is a Grove expansion Unit with On/Off Control + Current Meter functions. On/Off control adopts switch value, Current meter is 0 - 3.3V analog signal.
Features
- On/Off control: 5V/1A
- Current meter: 0~1000mA
Package Contents
- 1x Grove2Grove Expansion Unit
- 1x HY2.0 4-pin cable (20cm)
Specifications
| Net Weight | 5.0g |
| Gross Weight | 10.5g |
| Voltage | 5V |
| Switch Current | 1000mA |
| Circuit Voltage | 5V |
| Current Meter Range | 0~1000mA |
| Product Size | 32.04*24.01*8.05 mm |
| Package Size | 90*135mm |
Resources
$1.54
Original: $4.40
-65%M5Stack Grove2Grove Expansion Unit—
$4.40
$1.54Description
The Grove2Grove Expansion Unit from M5Stack is a Grove expansion Unit with On/Off Control + Current Meter functions. On/Off control adopts switch value, Current meter is 0 - 3.3V analog signal.
Features
- On/Off control: 5V/1A
- Current meter: 0~1000mA
Package Contents
- 1x Grove2Grove Expansion Unit
- 1x HY2.0 4-pin cable (20cm)
Specifications
| Net Weight | 5.0g |
| Gross Weight | 10.5g |
| Voltage | 5V |
| Switch Current | 1000mA |
| Circuit Voltage | 5V |
| Current Meter Range | 0~1000mA |
| Product Size | 32.04*24.01*8.05 mm |
| Package Size | 90*135mm |
