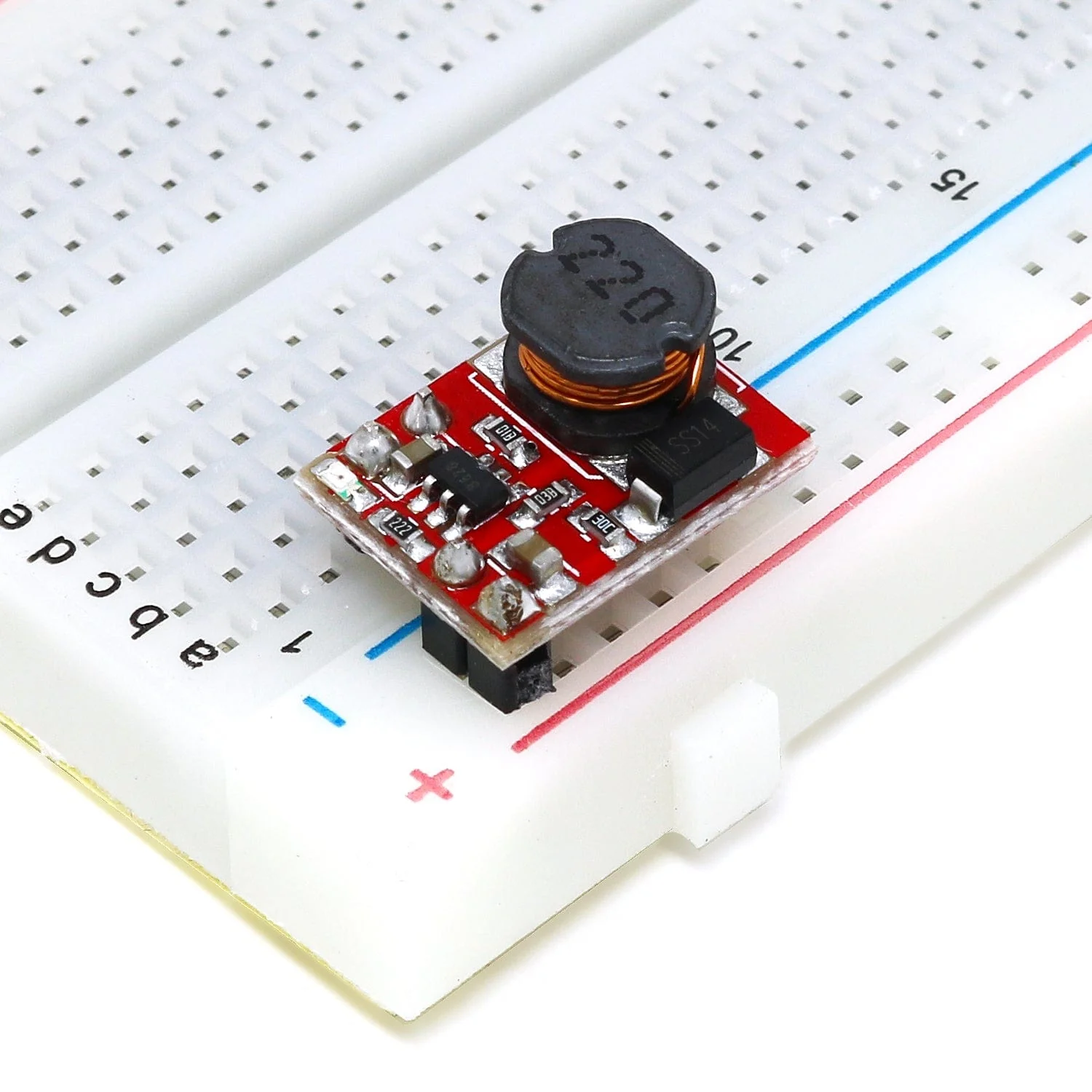

Olimex BB-PWR-3608 Breadboard Regulator (12V/24V)
Serious power for your breadboard! This breadboard rail-compatible regulator/boost module can input 5V (up to 4A) and output either 12V/1A or 24V/0.5A.

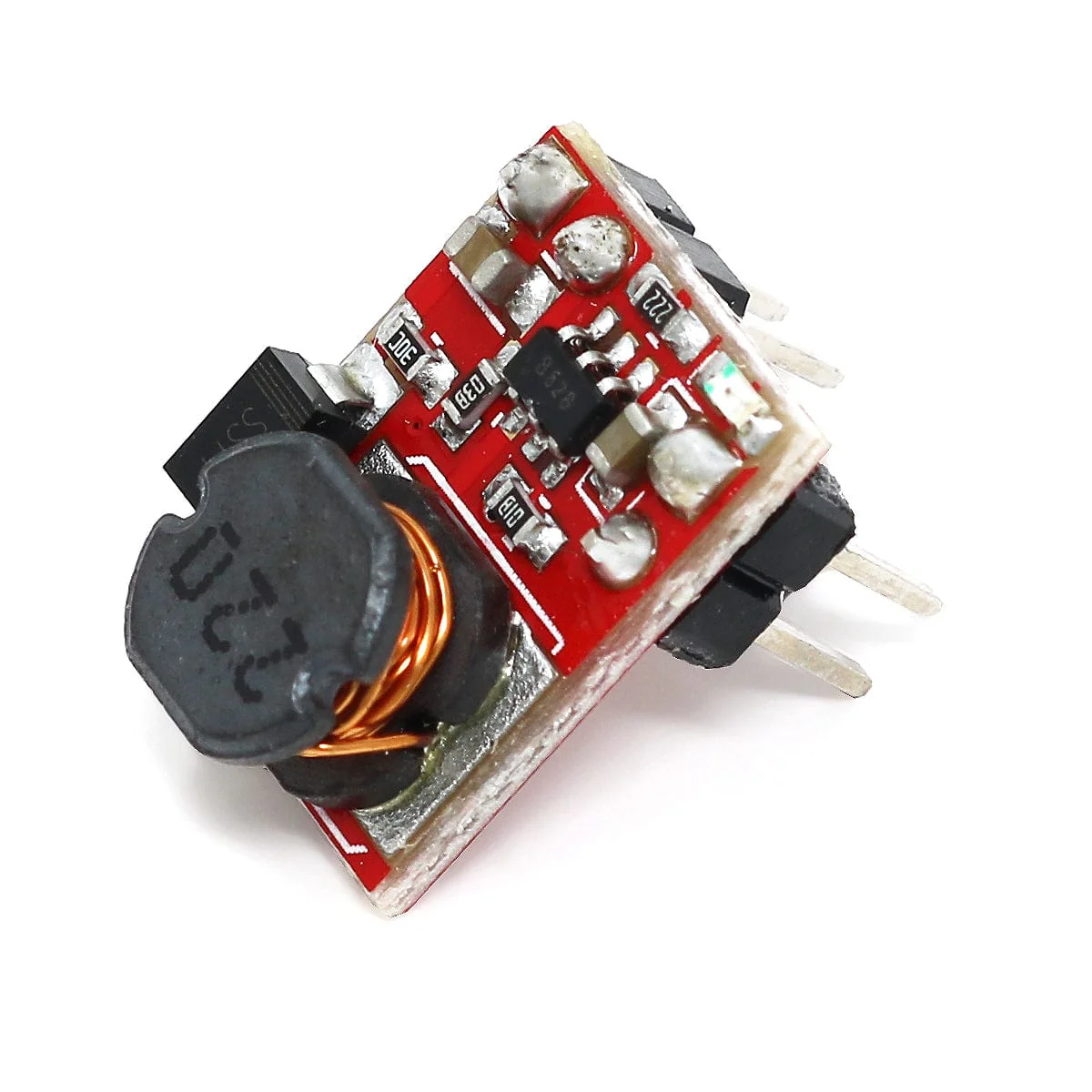

The Olimex BB-PWR-3608 is a high-efficiency, high-frequency synchronous step-up DC-DC regulator with up to 4A switching input current. It operates with a 5V input and has an efficiency of more than 90%.

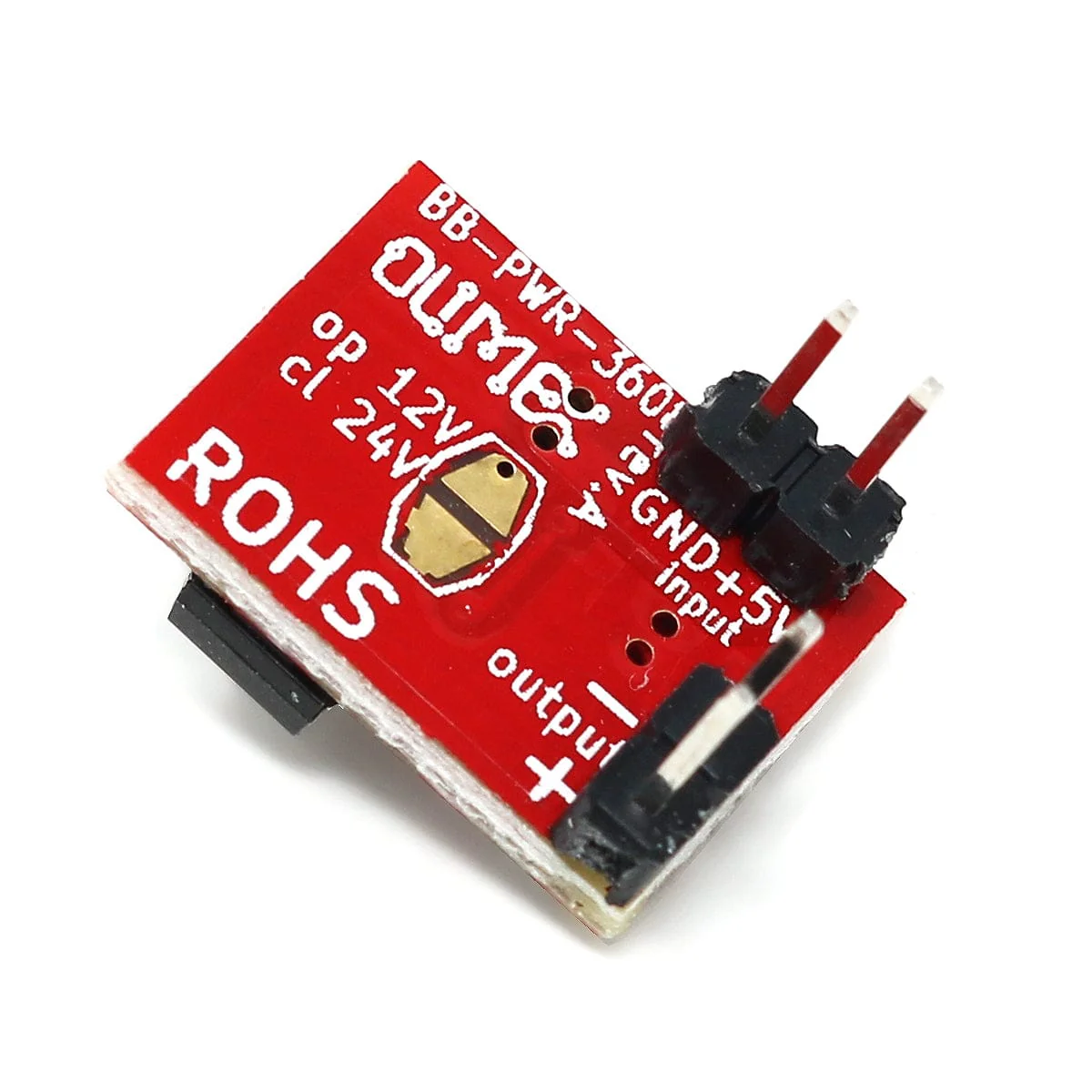

The output voltage is selectable via solder pads on the read - close (solder together) the pads for 24V, or leave them open (default) for 12V.
Notes

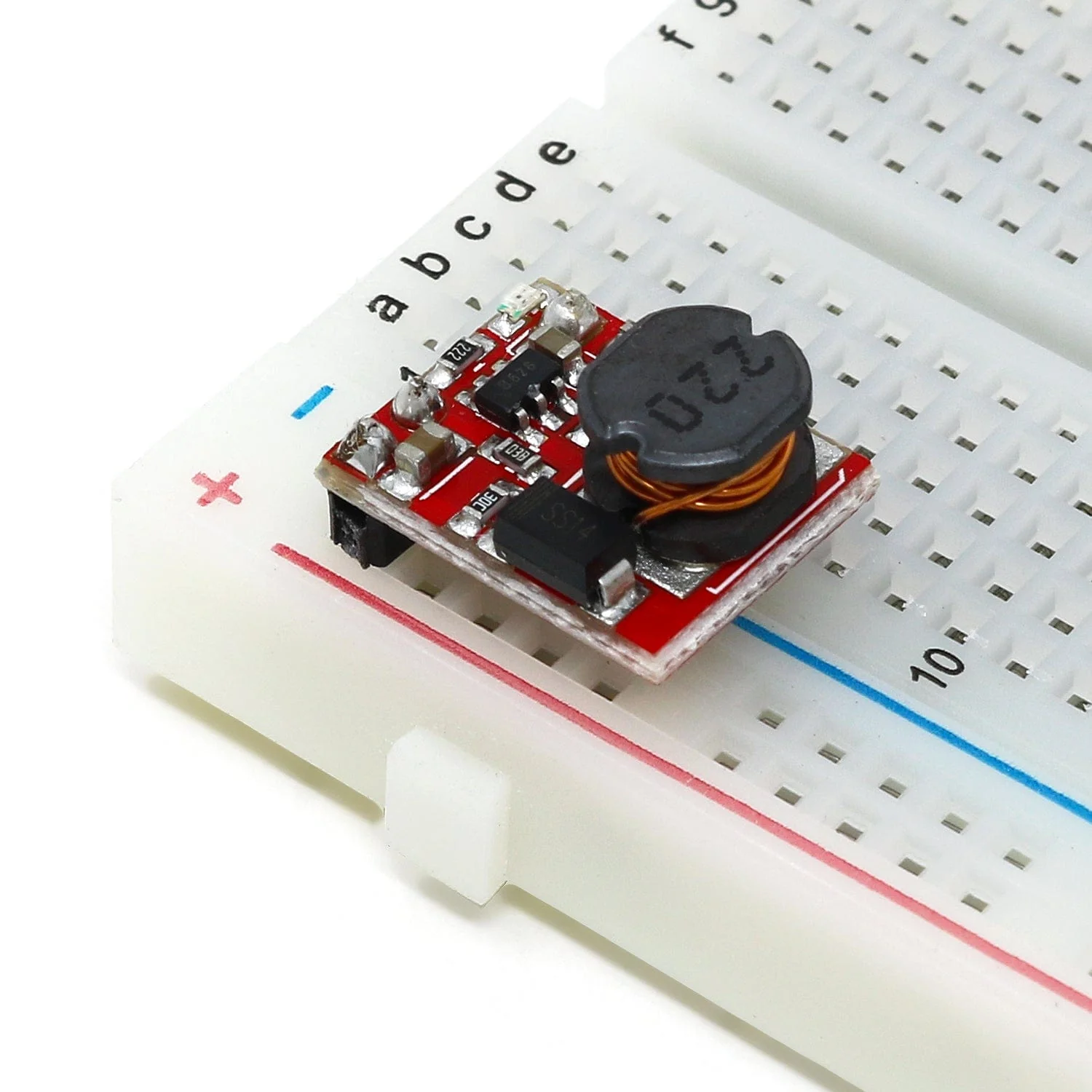

- Depending on the style and brand of breadboard, the regulator can sit a little wonky (it still works just fine)
- Breadboard not included
Features
- Breadboard rail compatible
- Input 5V up to 4A
- Output 12V / 1A or 24V / 0.5A
- Selectable via solder pads
- Quiescent current 200uA (if STATUS LED is off)
- Power efficiency >90%
- Operating temperature -40+85C
Resources
Documents
Hardware
Package Contents
- 1x BB-PWR-3608 Power Board
Breadboard not included
