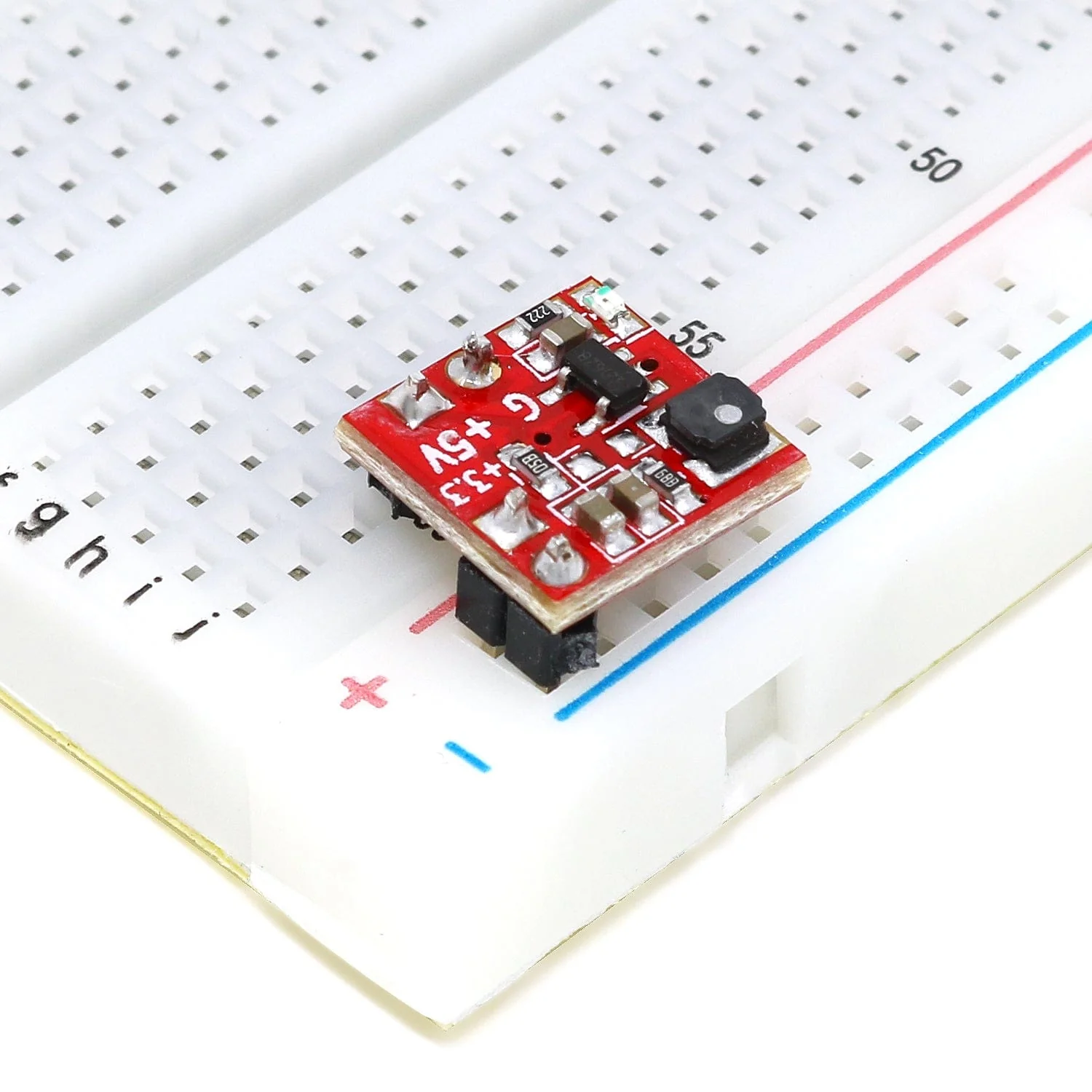

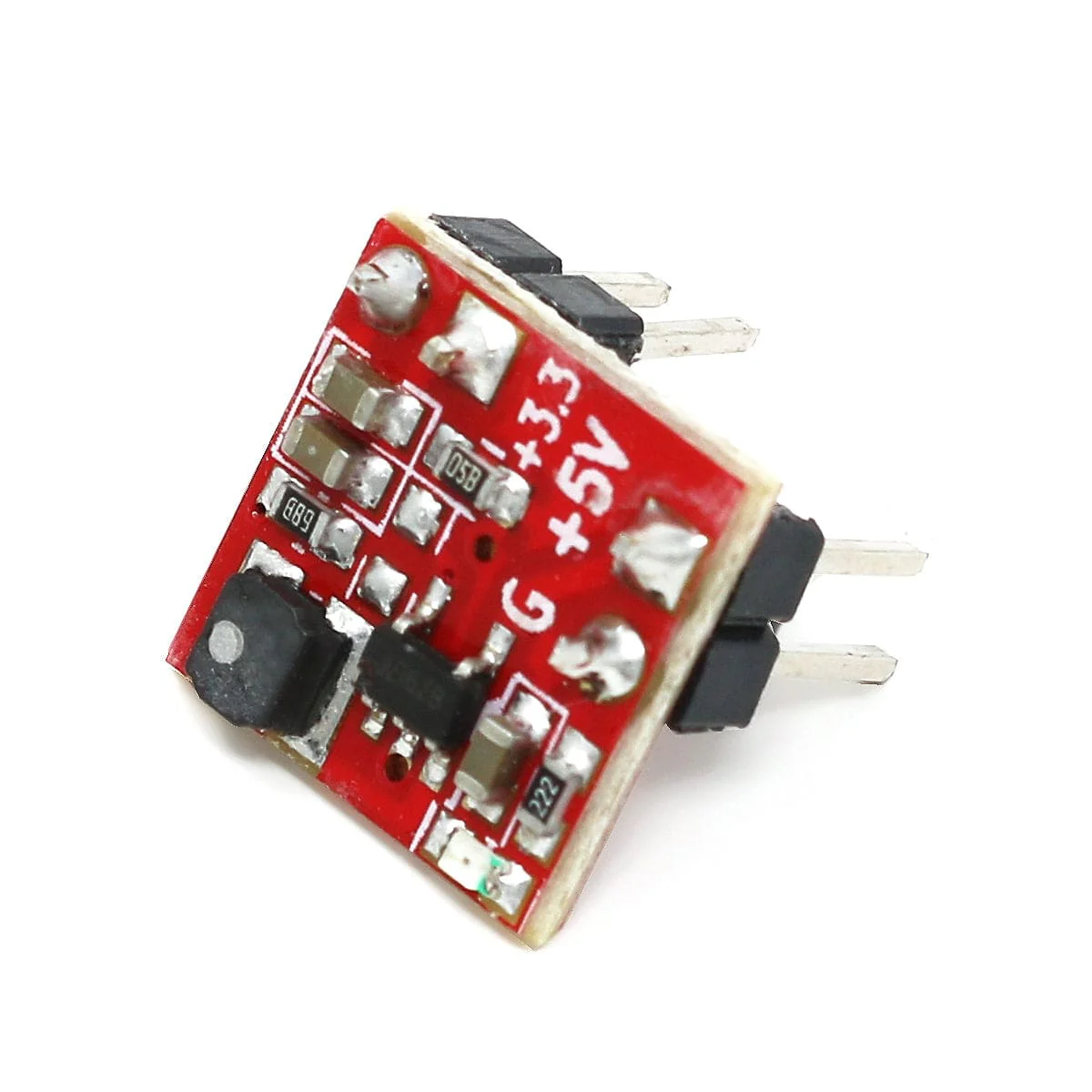

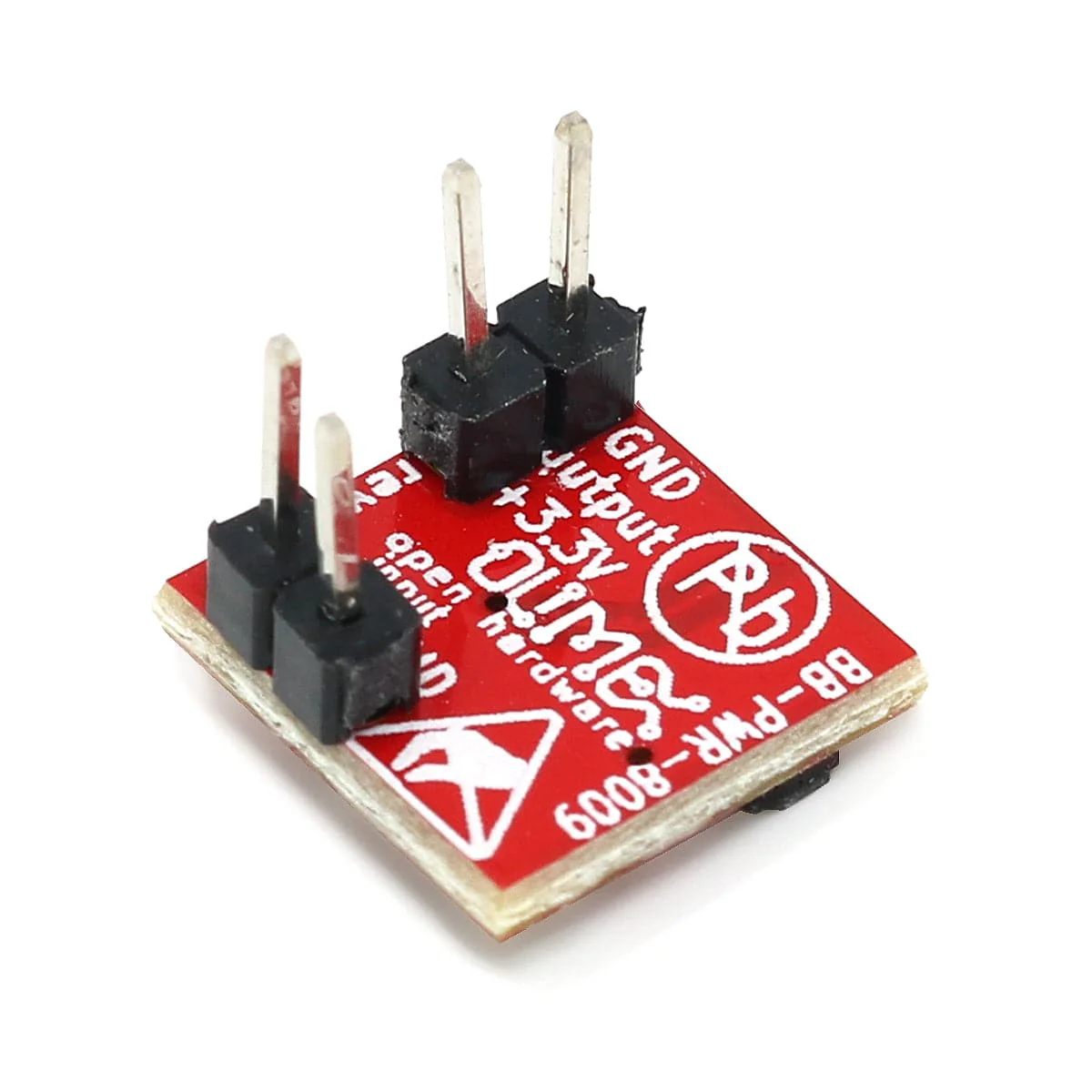

Serious power for your breadboard! This breadboard rail-compatible regulator module can input 3-5.5V and output 3.3V up to 1.5A.

The Olimex BB-PWR-8009 is a high-efficiency DC-DC regulator operating with a 3-5.5V input and has an efficiency of more than 90%.

The output voltage is fixed at 3.3V (up to 1.5A), perfect for powering many 3.3V microcontrollers!

Notes

• Depending on the style and brand of breadboard, the regulator can sit a little wonky (it still works just fine)
• Breadboard not included

Features

• Snaps to a Breadboard
• Input 3-5.5V
• Output 3.3V up to 1.5A
• Quiescent Current 80uA (If STATUS LED removed)
• Power efficiency >90%
• Operating temperature -40+85C

Resources

• Datasheet
• GitHub
• Schematic
• SY8009A datasheet
• EU Declaration of Conformity
• UKCA Declaration of Conformity

Package Contents

• 1x Olimex BB-PWR-8009 Module

Breadboard not included
