Panel Mount 100K potentiometer (Breadboard Friendly) (100KB)

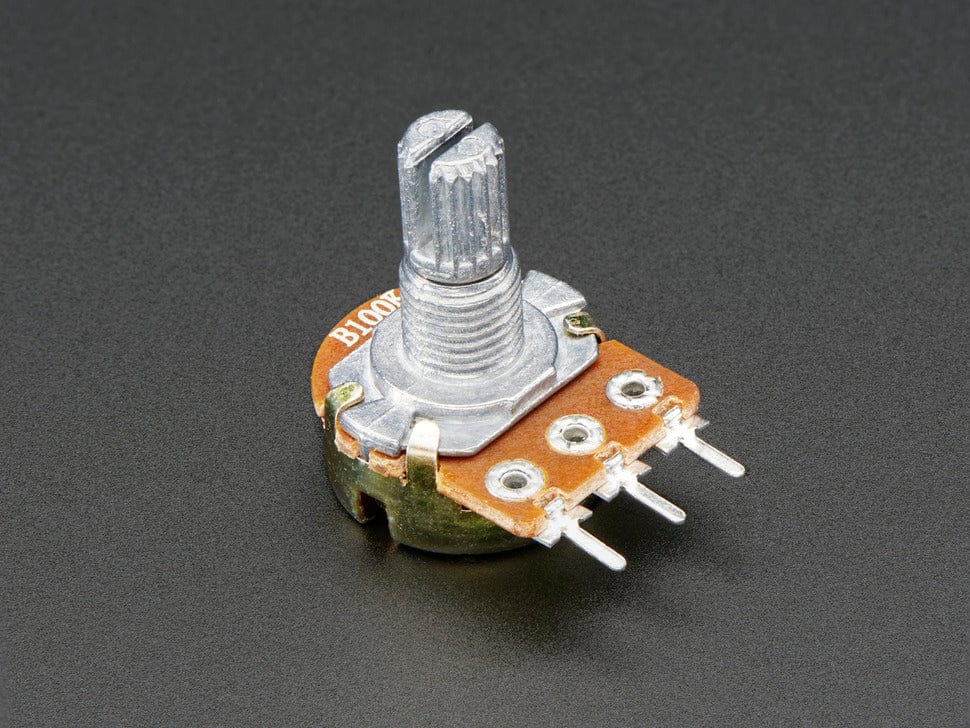

Product image 1
1 / 3

Panel Mount 100K potentiometer (Breadboard Friendly) (100KB)

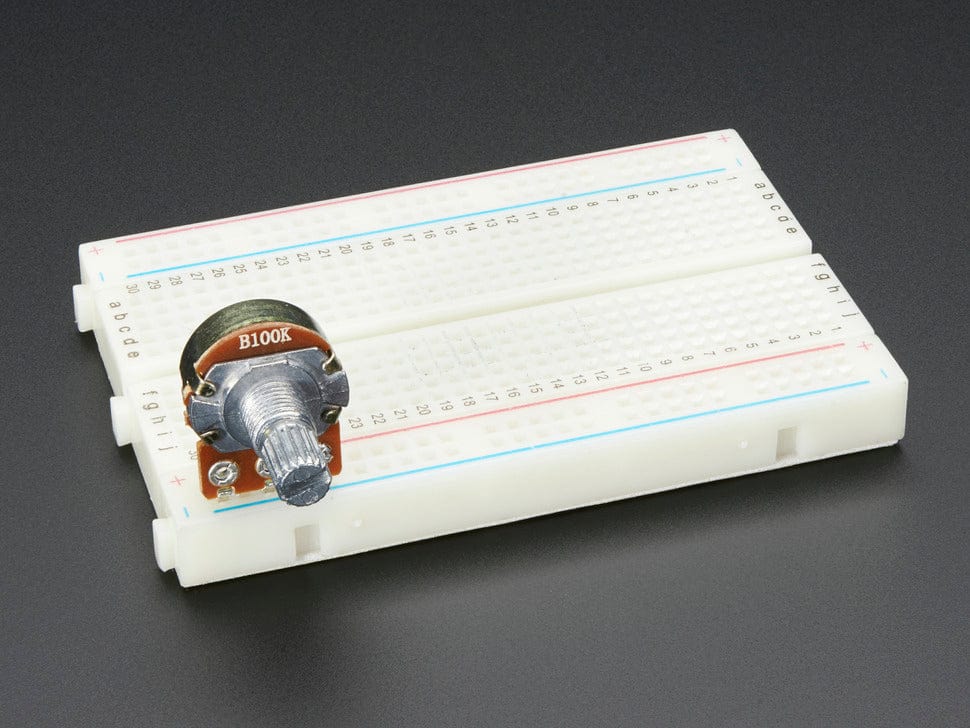

This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Technical details

Dimensions:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g

  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in
  • P160KN-0QC15B100K Datasheet

This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Technical details

Dimensions:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g

  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in
  • P160KN-0QC15B100K Datasheet

$0.80
Panel Mount 100K potentiometer (Breadboard Friendly) (100KB)
$0.80

Description

This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Technical details

Dimensions:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g

  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in
  • P160KN-0QC15B100K Datasheet
