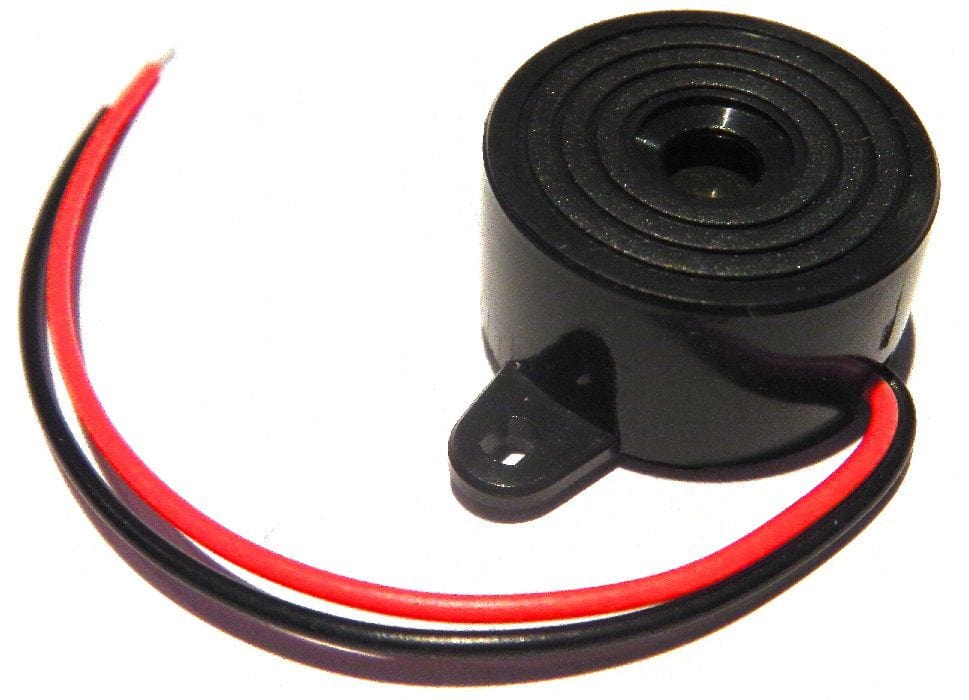

12V Piezo Buzzer (3300Hz) [Discontinued]
If you want to add beeps, tones or alerts to your Raspberry Pi project, you require a Piezo Buzzer!
This buzzer requires no external oscillation, simply place a voltage of between 1.5V & 15V DC, across the terminals and it will make noise!
This one comes with two wires attached and two screw mounting points, so it can easily be integrated onto a breadboard or into a circuit! To use you'll need a voltage source such as a battery; simply connect the black wire to the negative of the voltage source and the red wire to the positive point that voltage source.
This buzzer requires no external oscillation, simply place a voltage across the terminals and it will make noise!
Features
- 12V Piezo Buzzer
- PCB & Breadboard Mountable
- Low Power Consumption
- Sealed Base
Specification
- Rated Voltage 12V DC
- Operating Voltage 1.5V - 15V DC
- Max Rated Current 20mA
- Resonant Frequency 3300 ±500Hz
- Operating Temperature -20 to +60°C
- Overall Diameter: 35mm
- Fixing Centre Diameter: 30mm M2.5
- Centre Diameter: 22mm
- Height: 12mm
- Wire: 26AWG
- Housing: PC ABS Black
- Weight: 14g
- Model No: 41.P24L120A-LF
- Datasheet
