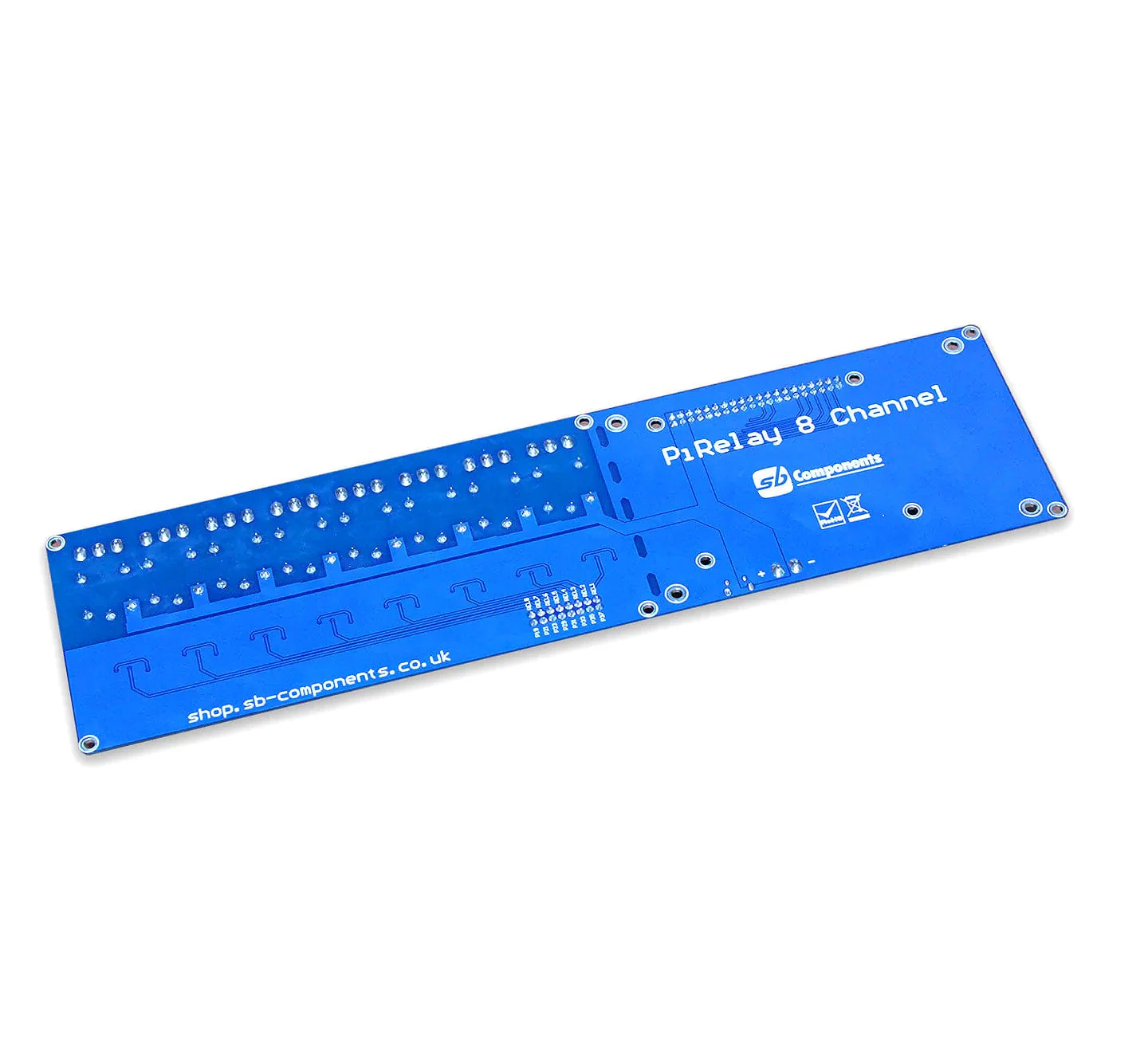

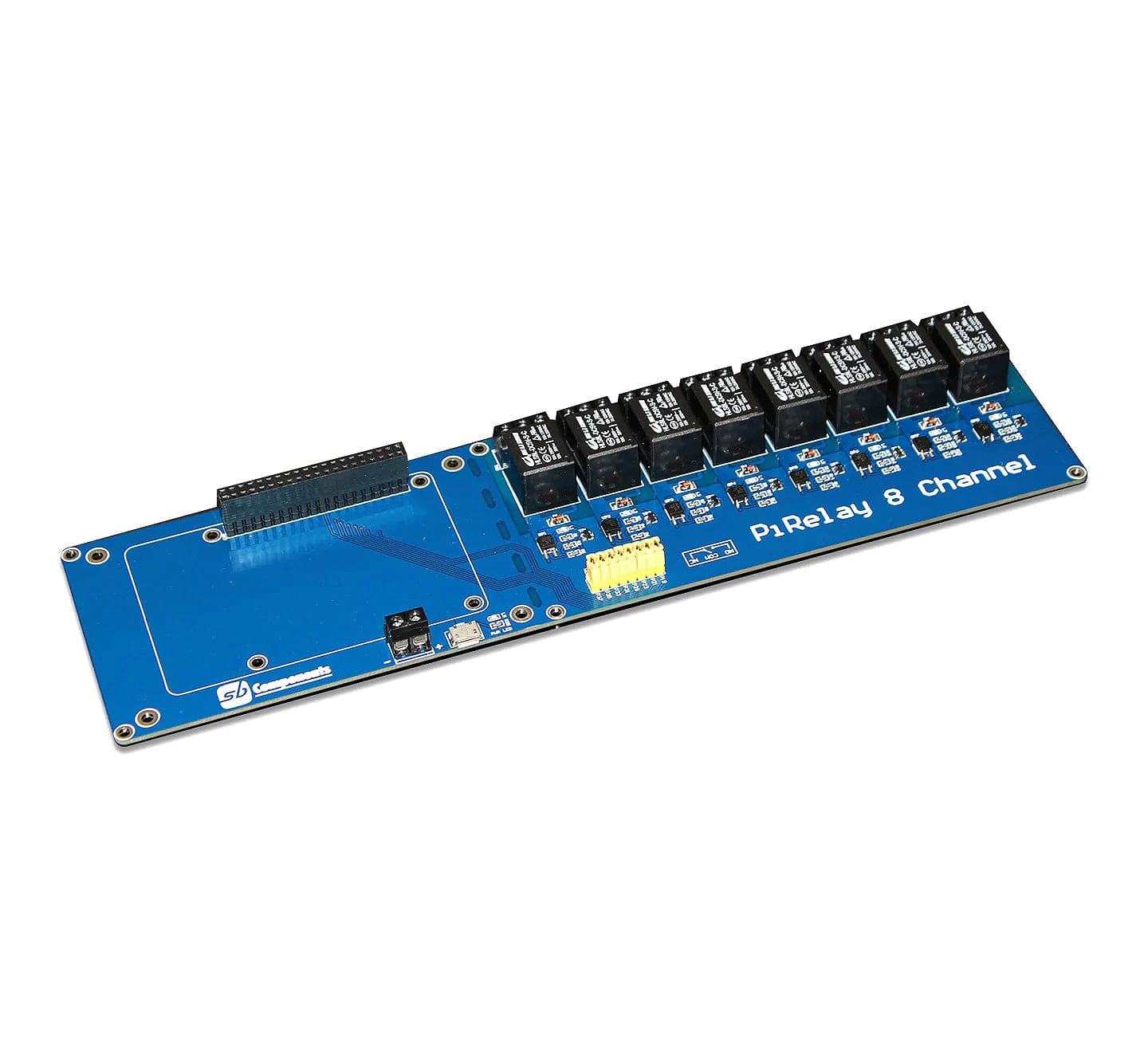

The PiRelay 8 is a relay expansion board for the Raspberry Pi that can control up to 8 devices with photo-coupling isolation, with loads up to 250V AC/7 A, 30V DC/10 A, and a trigger voltage of 3.3V. It allows you to safely control high voltages or high-current devices.

It has enough space for the 4.3" LCD to fit comfortably, allowing the user to operate the device with ease. One of the best features of the PiRelay 8 board is the 5 V/2A USB power port. It supplies power to the Raspberry Pi straight through the Pirelay 8 board.

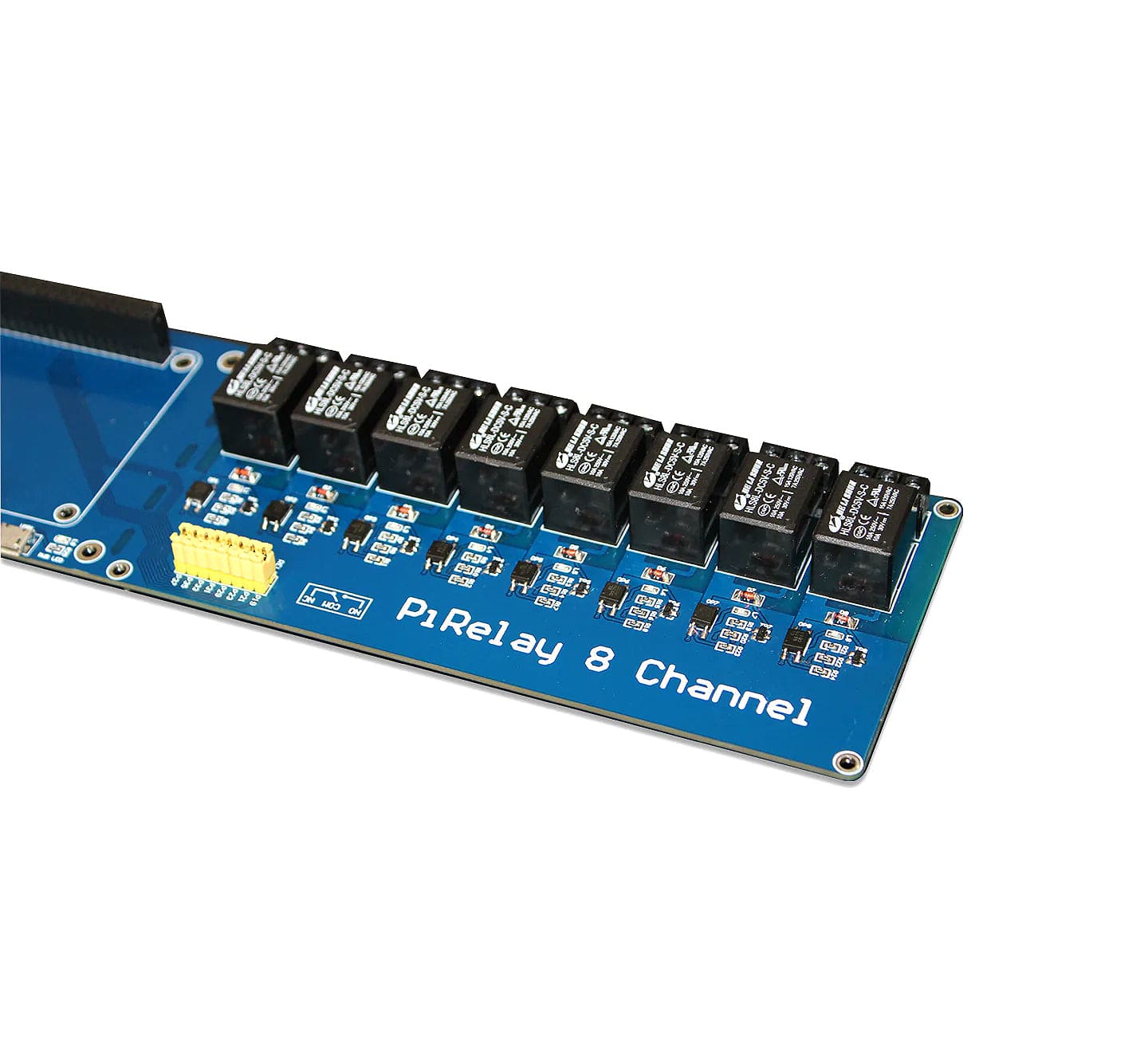

In a simplified way, PiRelay 8 channel is a set of eight relays with an optocoupler that uses light energy to safely send an electrical signal between two separated circuits.

If you're looking for a more compact solution or don't need this many relays, check out the PiRelay 6 or have a look through our relay HAT section.

Features

• Compatible with Raspberry Pi 4, 3B+, 3, 2, Zero
• Relay Status indicators
• Control through Android App
• Comes with development resources, including examples in python
• Connectivity of the Relay with Raspberry Pi
• Connectivity using the stack method
• Relay pins - COM, NO (Normally Open) and NC (Normally Closed) available
• Onboard power LED indicator
• Relay control pins selection jumper
• 5V / 2A USB Power Port

Specifications

Operating Voltage	5V/3A
External load	250VAC/7A, 30VDC/10A
Relay Channels	8 Ch
Trigger signal	3.3 / 5V
Optocouplers	(CTR: 50-600% at IF =5mA, VCE =5V)
External Power supply	USB / Terminal Block
GPIO	40-Pin Stacking Header
Connector	Screw Terminal Block(Output)

Resources

• Product Wiki
• GitHub

Pinout

Package Contents

• 1x PiRelay 8 Board

LCD Display NOT included
