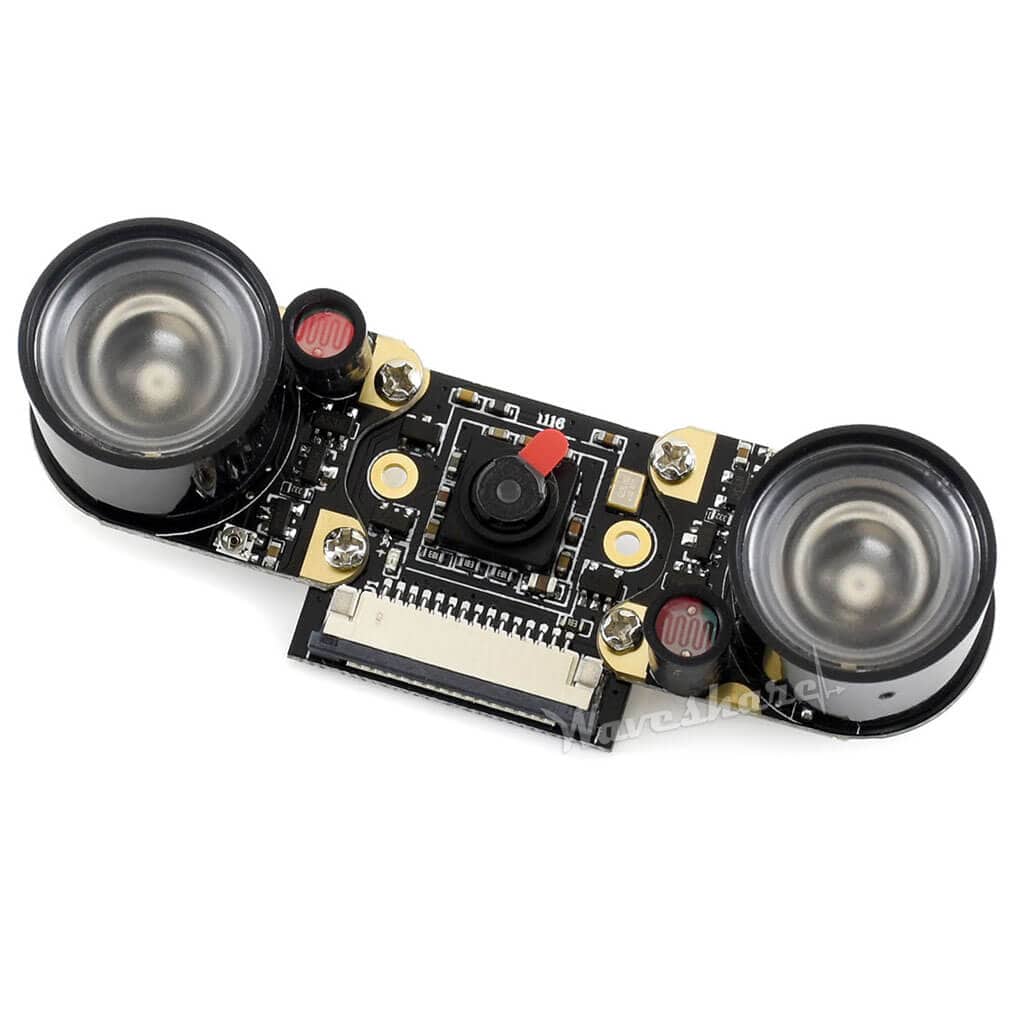

Our Night Vision Camera for the Raspberry Pi features two high-intensity Infrared LED spotlights for nighttime recording.

The IR LEDs are powered directly from the CSI port, and are capable of lighting an area at a distance of up to 8m! In testing, the best images were captured at a distance of 3m to 5m.

To use this camera with a Raspberry Pi 5, you will need to buy this adapter cable!

To use this camera with a Raspberry Pi Zero, you will need to buy this adapter cable!

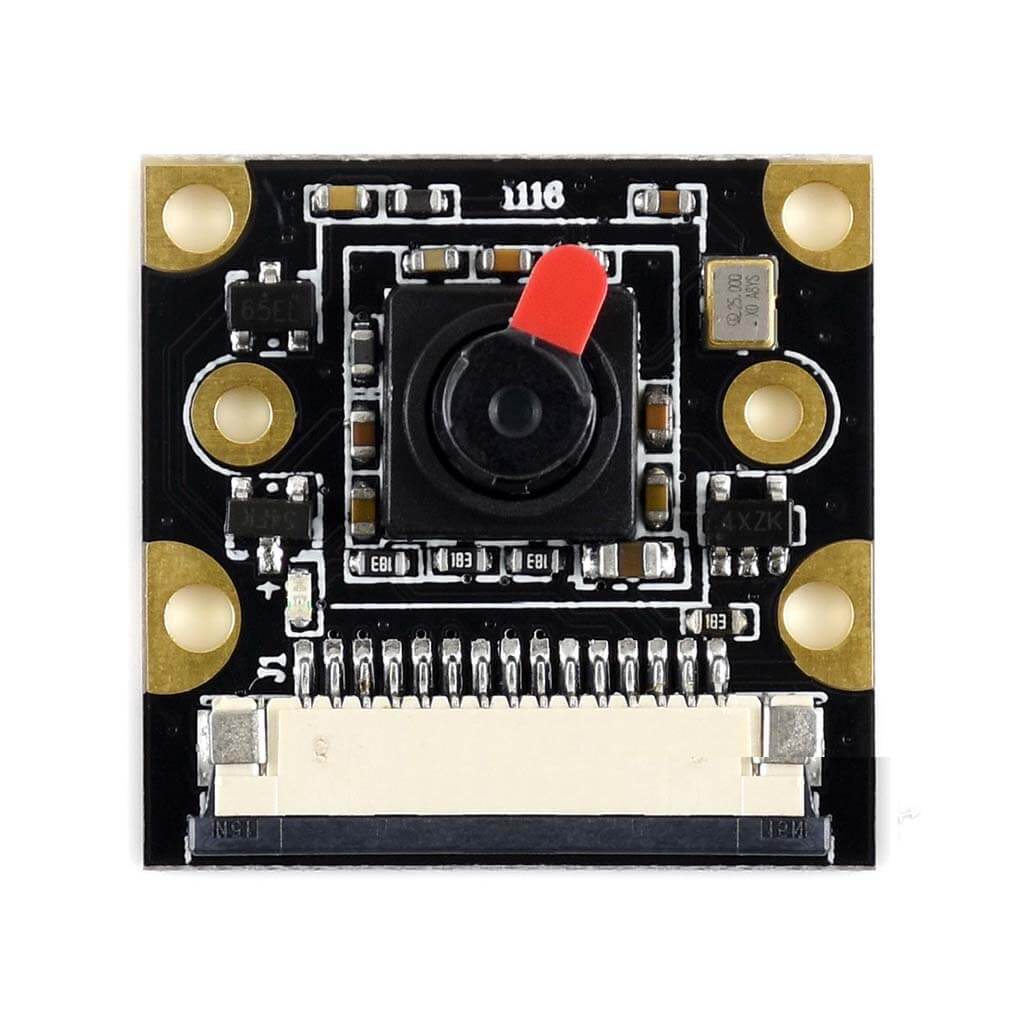

This Raspberry Pi night vision camera uses the same OV5647 as the original Raspberry Pi camera, and is able to deliver crystal clear 5MP resolution images or 1080p HD video recording at 30fps.

Features

• 5 Megapixel OV5647 Camera
• 2 x 3W high-power 850 infrared LEDs:
  • Onboard photoresistor to detect ambient light
  • Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED
• Camera specifications
  • CCD size: 1/4"
  • Aperture (F): 2.9
  • Focal Length: 3.29MM
  • Diagonal: 72.4 degree
  • Sensor best resolution: 1080p
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED
• Dimension : 25mm x 24mm x 6mm

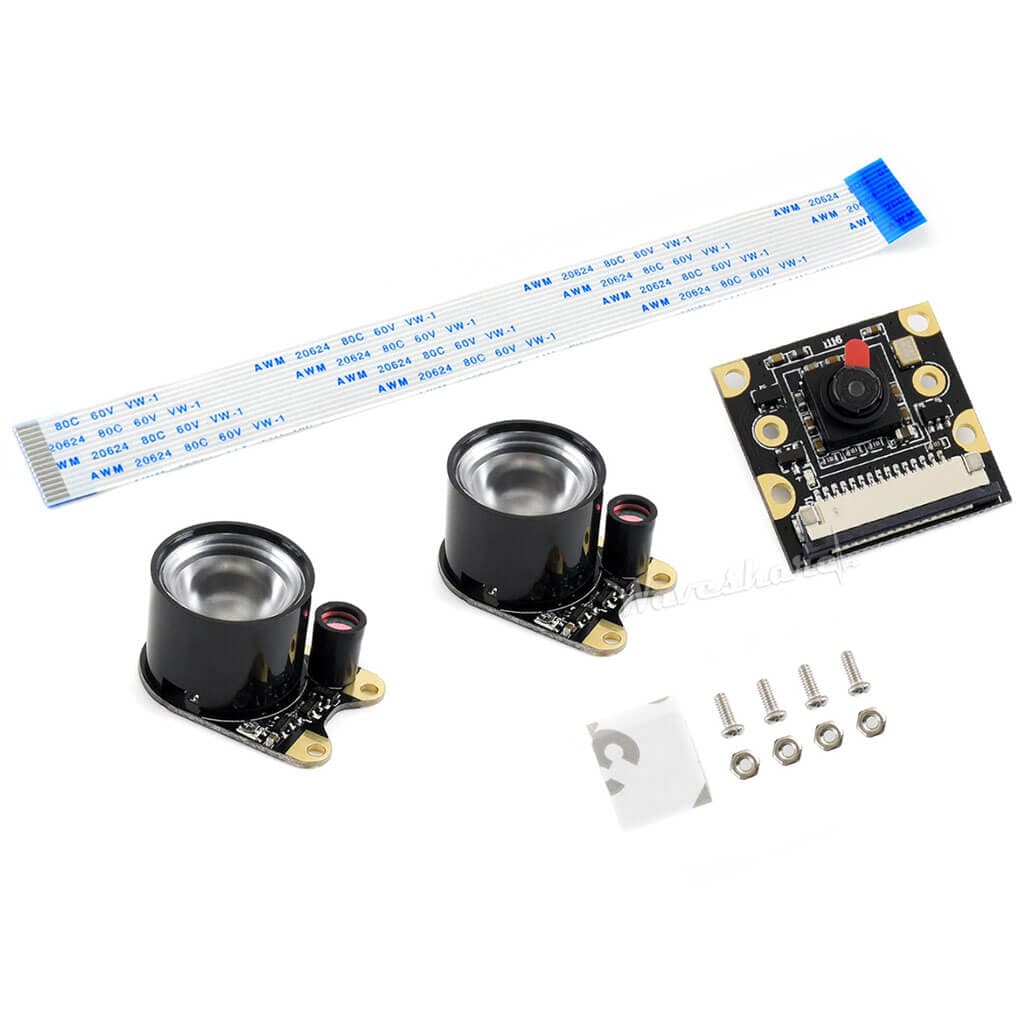

Package Contents

• 1x 5MP Night vision camera for Raspberry Pi (E)

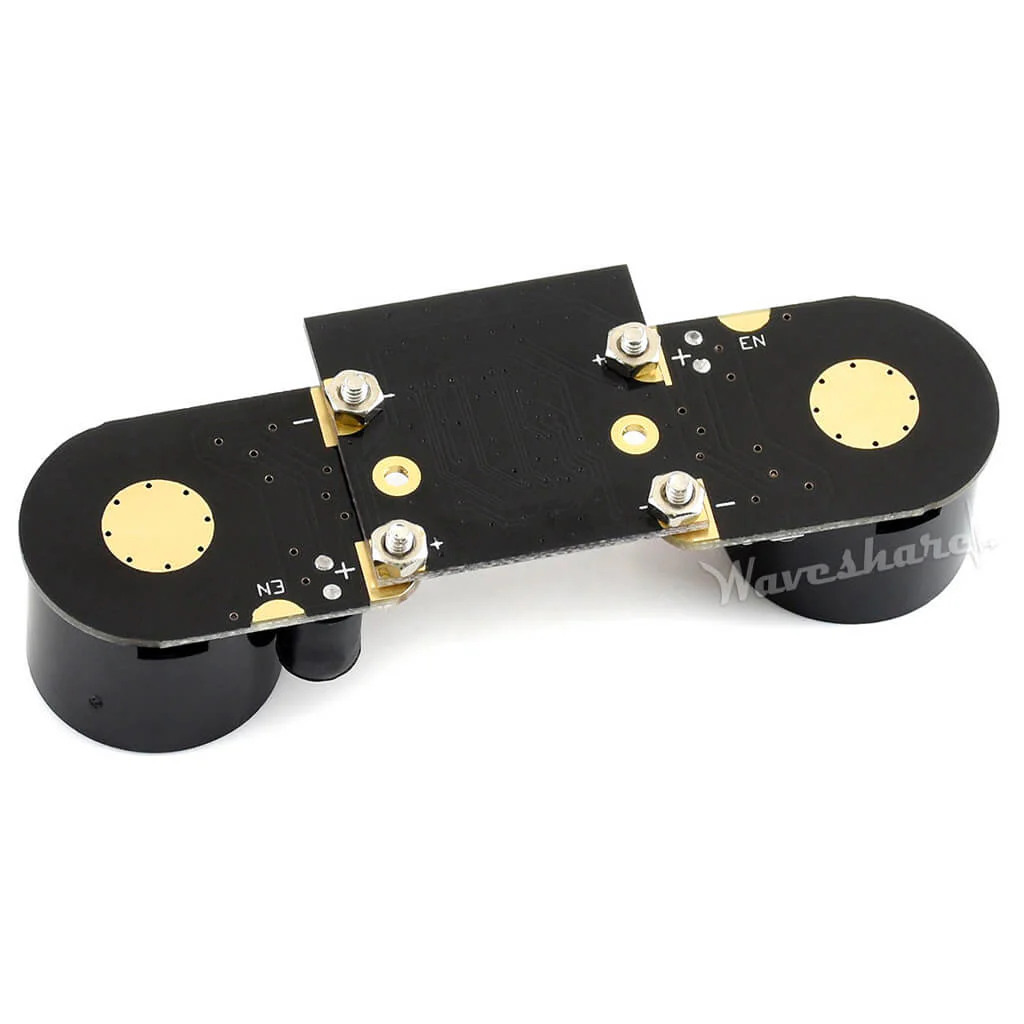

• 2x Infrared LED Board (B)
• 1x 15-pin camera cable

Resources

• Product Wiki
