The Raspberry Pi SSD Kit is a great-value way to grab both the Raspberry Pi NVMe SSD and Raspberry Pi M.2 HAT+ to unlock outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from the SSD.

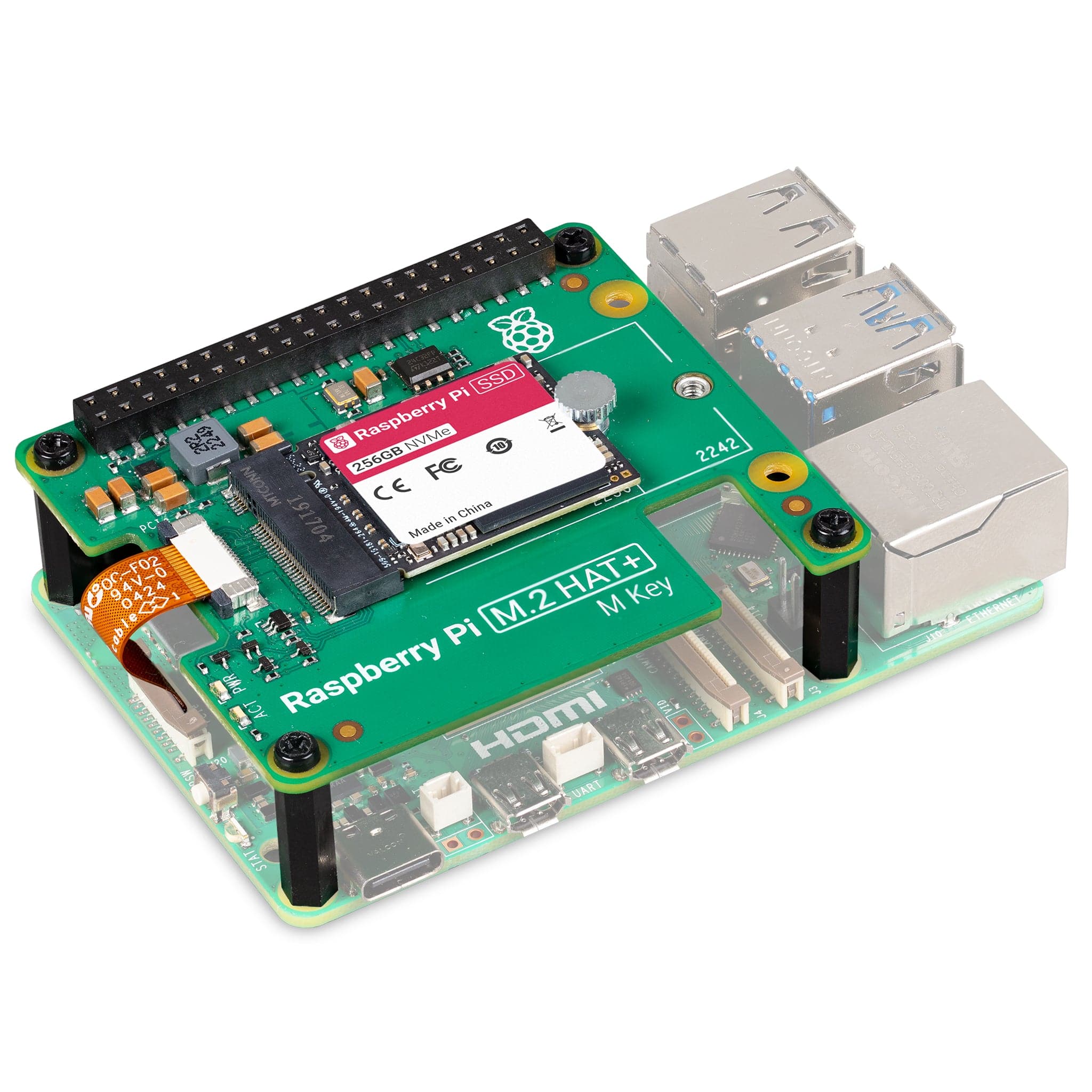

The kit comes pre-assembled with the SSD installed into the M.2 HAT+, ready out of the box to connect to your Raspberry Pi 5 (not included).

The kit includes a 16mm stacking header, spacers, and screws to secure to your Pi 5. A Raspberry Pi Active Cooler can also be used underneath the HAT at the same time when using these spacers.

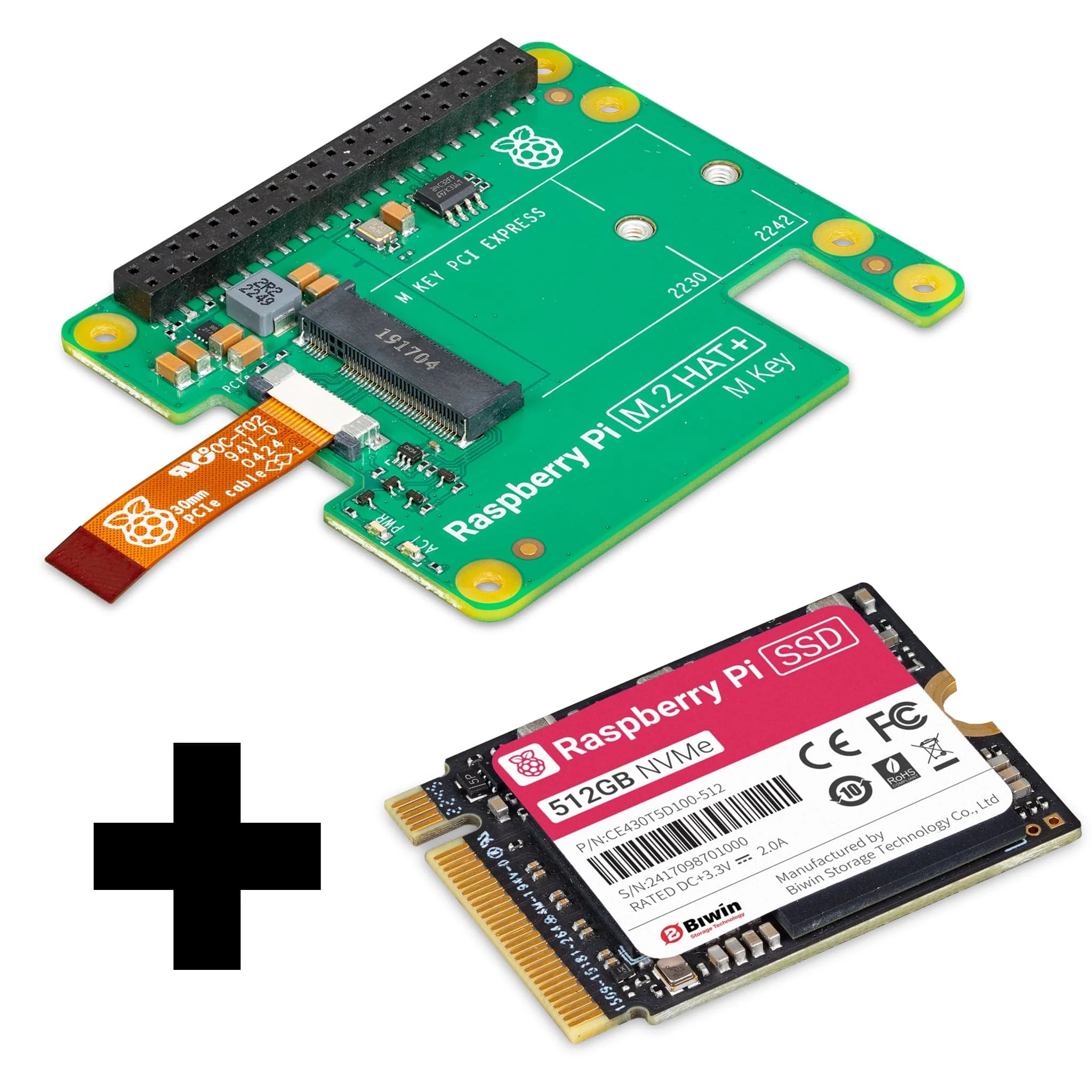

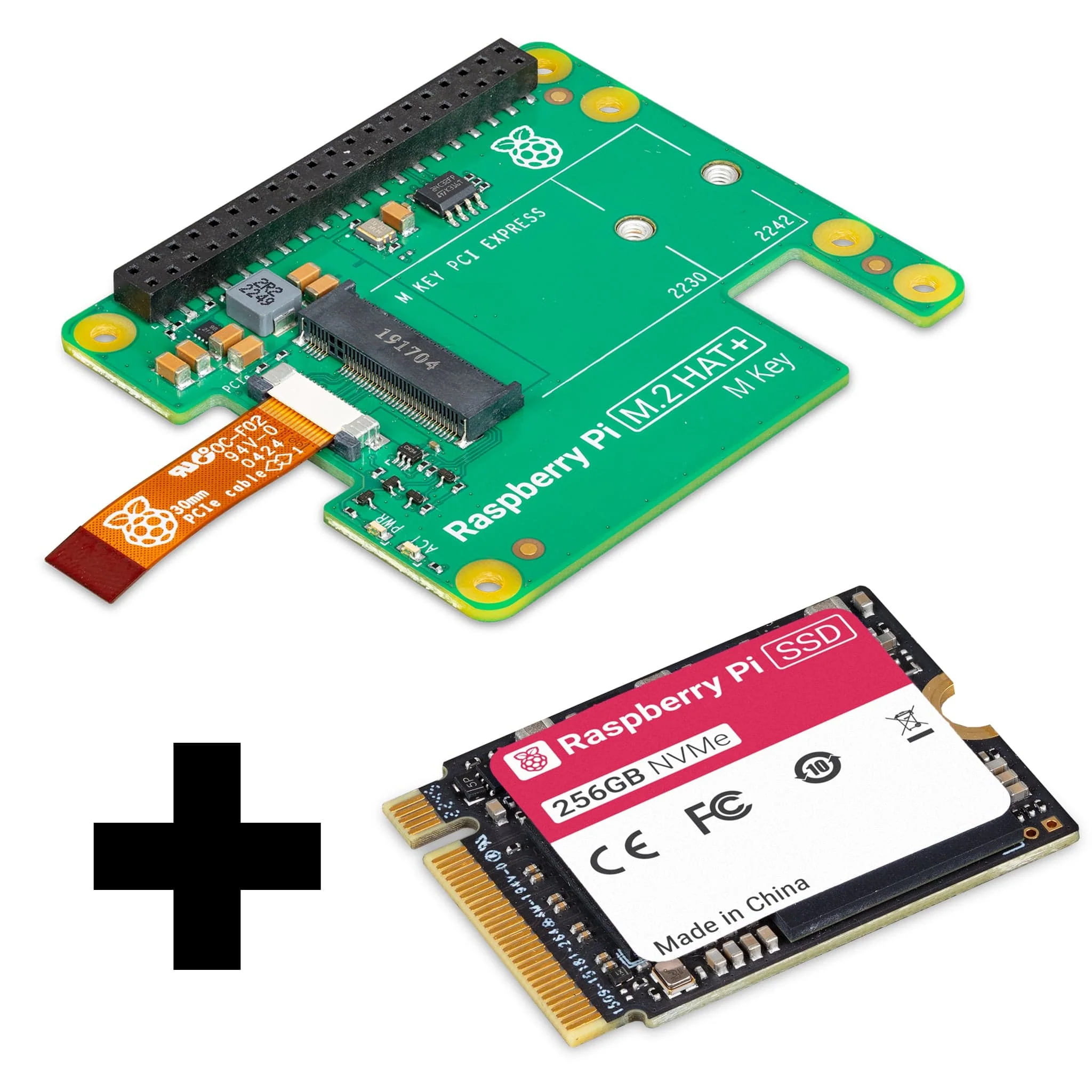

The kit comes with either a 256GB or 512GB SSD pre-installed (select before adding to cart), which offers the following performance when accessed using a 1-lane PCI Express 2.0 bus on Raspberry Pi 5:

Capacity	IOPS (4KB random read)	IOPS5 (4KB random write)
256GB	40k	70k
512GB	50k	90k

Raspberry Pi 5 and Active Cooler not included.

Features

• SSD + M.2 HAT+ Bundle for Raspberry Pi 5
• Great value when compared to buying the parts separately
• Choice of 256GB or 512GB SSD kits
• SSD Pre-assembled to the HAT+
• Standoffs/screws included
• Compatible with Raspberry Pi 5 only

Resources

• Raspberry Pi SSD Kit Product Brief
• Raspberry Pi SSD Kit Announcement Blog Post

• Raspberry Pi SSD Product Brief
• Raspberry Pi M.2 HAT+ product brief

• Raspberry Pi M.2 HAT+ schematics

• How to boot from NVMe with the Raspberry Pi M.2 HAT+
• Blog: Using the M.2 HAT+ with Raspberry Pi 5
• Product codes:
  • 256GB SSD Kit = Raspberry Pi SC1675 (EAN: 5056561805016)
  • 512GB SSD Kit = Raspberry Pi SC1676 (EAN: 5056561805023)

Package Contents

The kit comes with the HAT and SSD pre-assembled.

• 1x Raspberry Pi M.2 HAT+ (with PCI-E cable)
• 1x Raspberry Pi NVMe 2230 SSD (select capacity option before adding to cart)
• 1x GPIO Stacking Header
• 1x Nylon Standoff/Screw set
