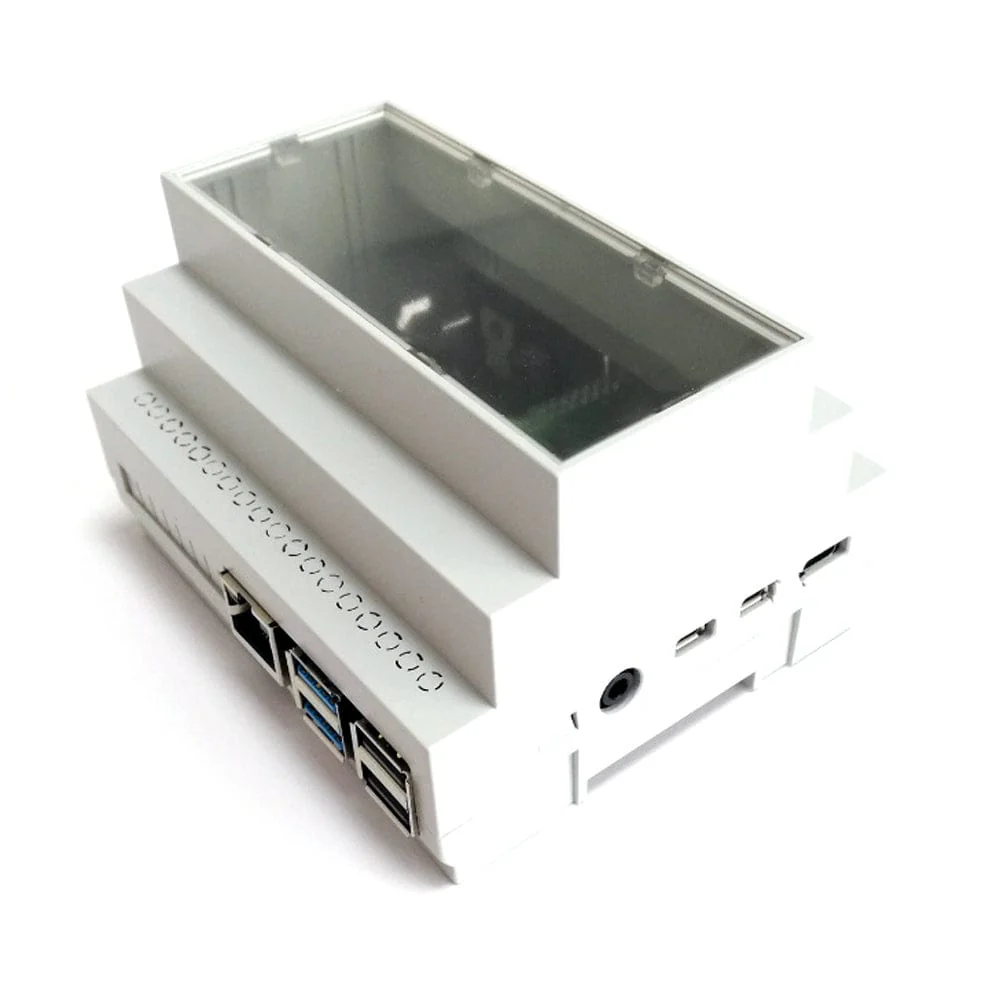

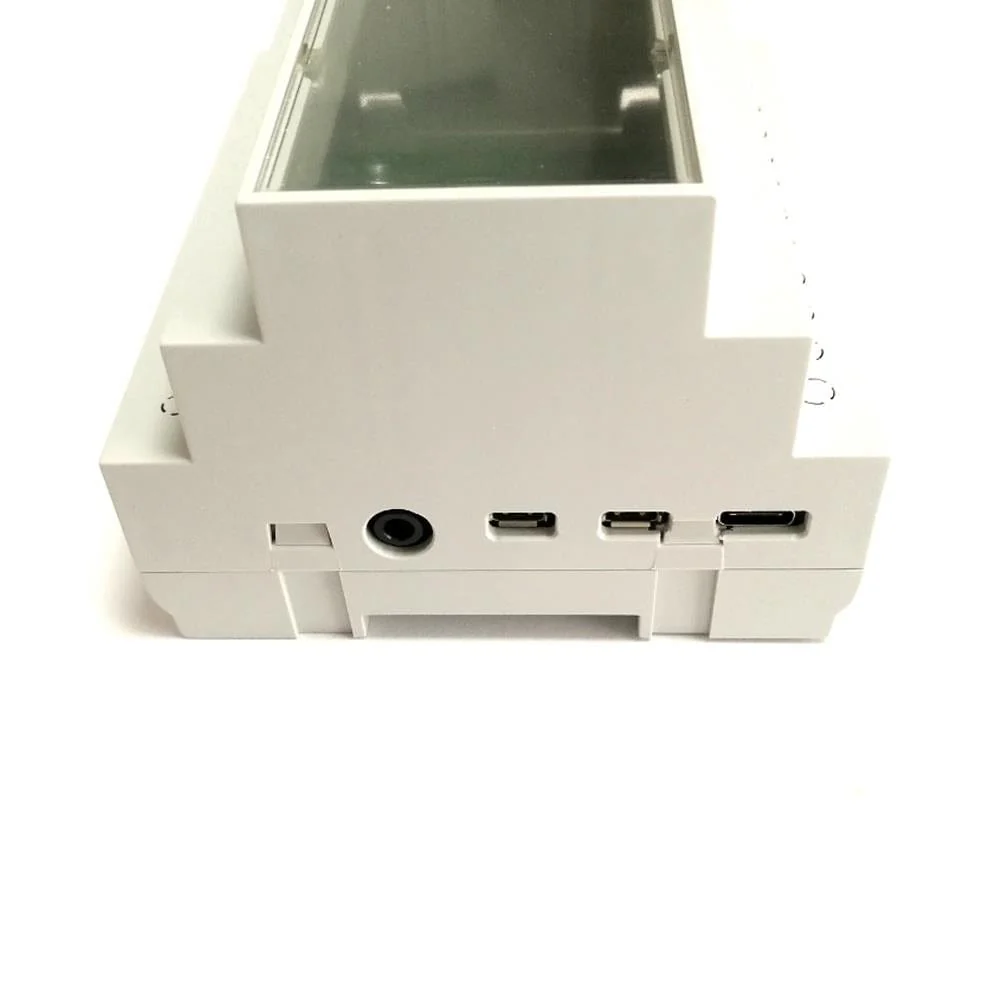

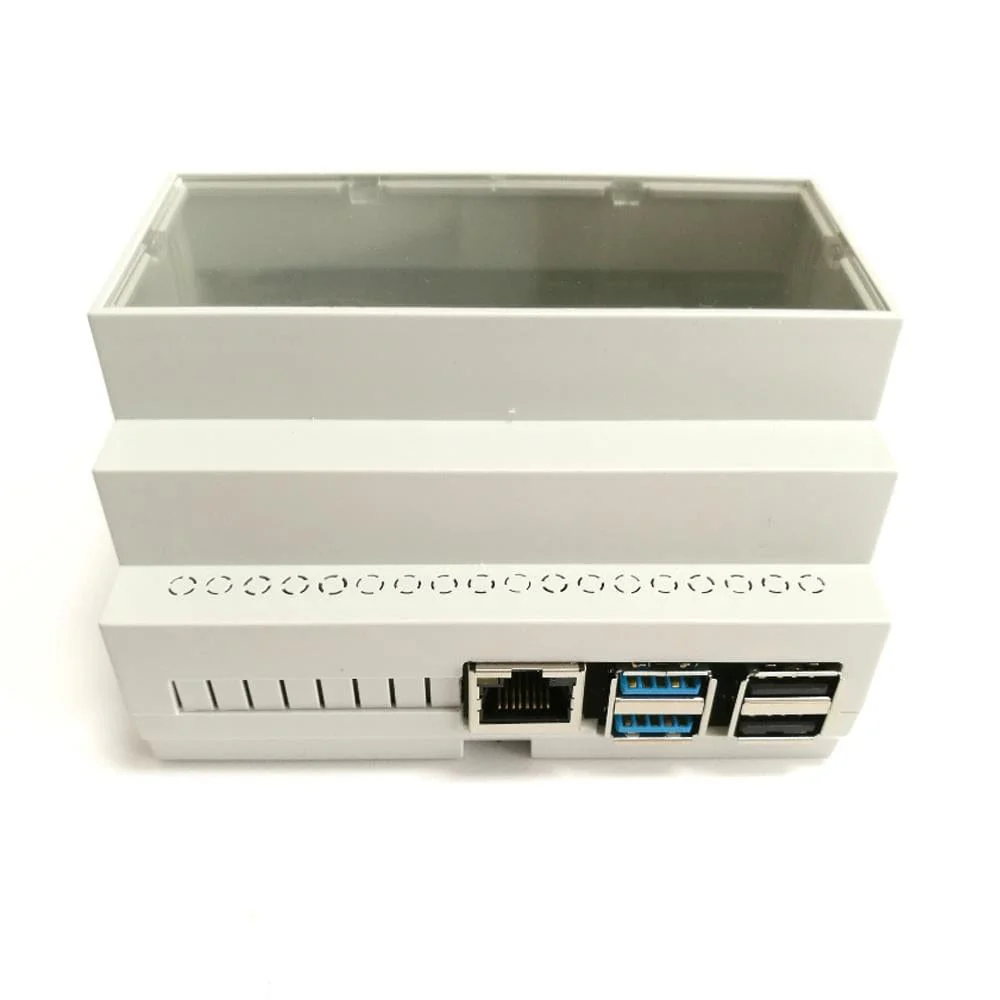

This RasPiBox is a DIN rail enclosure set for the Raspberry Pi 4.

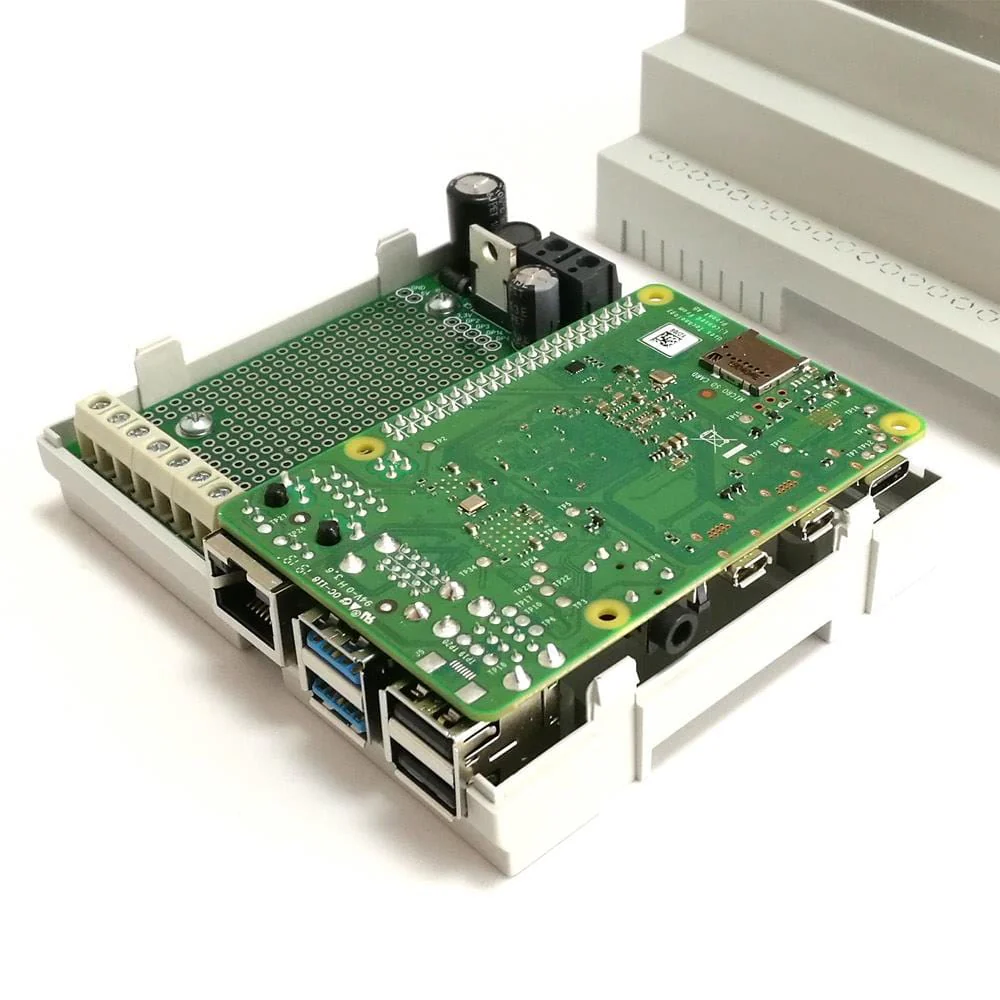

At the heart of the enclosure is an additional PCB with an integrated voltage regulator (soldering required) and a prototyping area. It fits together with the Raspberry Pi 4 in a 6 module DIN rail enclosure and allows you to add your own custom circuit!

Along the edges of the prototyping area, all the GPIO/I2C/SPI and power pins are connected and marked. You can connect your work via terminals with the world outside the enclosure.

Note:

• Raspberry Pi 4 not included.

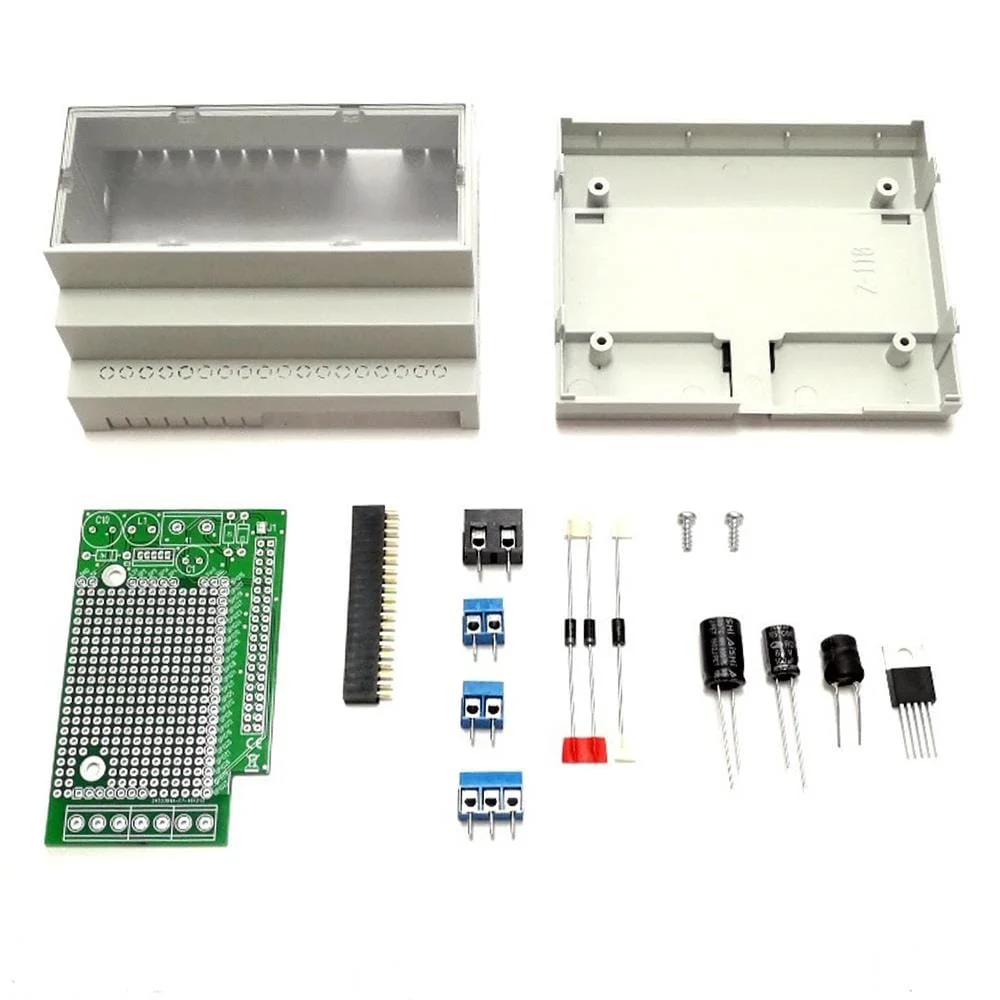

• Assembly and soldering required. Please refer to the assembly instructions.

Features

• Compatible with Raspberry Pi 4
• Milled cab rail enclosure
• Top shell with grey or transparent cover
• Designed for EN50022 DIN rails
• Prototyping plate - fits perfectly in the enclosure
• 2x 2-pin terminal blocks for free use
• 1x 3-pin terminal blocks for free use
• 2 pole terminal for power supply
• 40 pole socket for the Raspberry Pi
• PCB contains a layout for a 5V voltage switching regulator (included)
• Designed for Raspberry Pi 4 (not included)

Resources

• Datasheet
• Assembly Instructions
