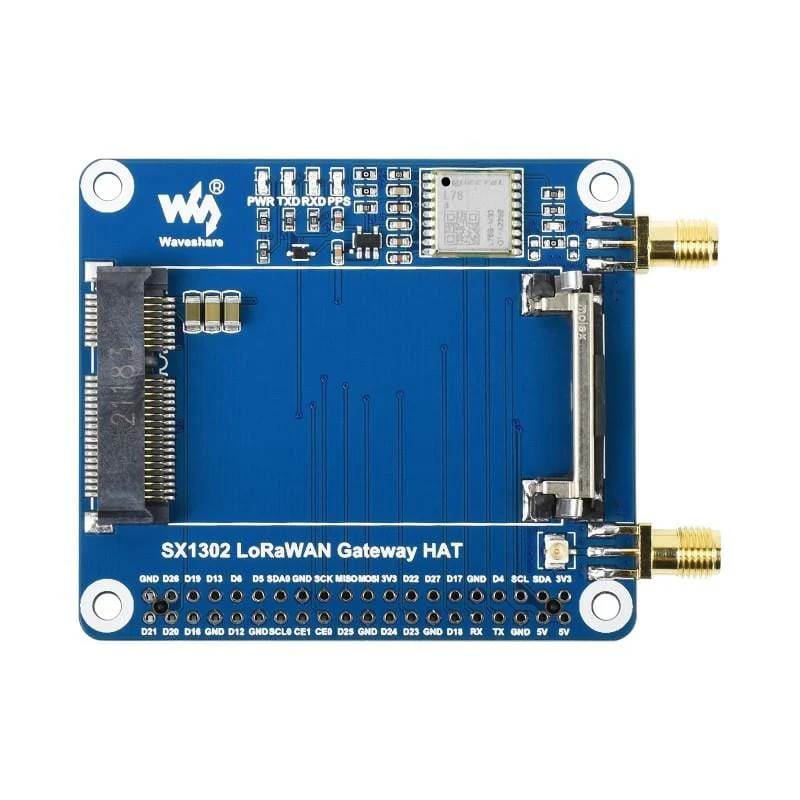

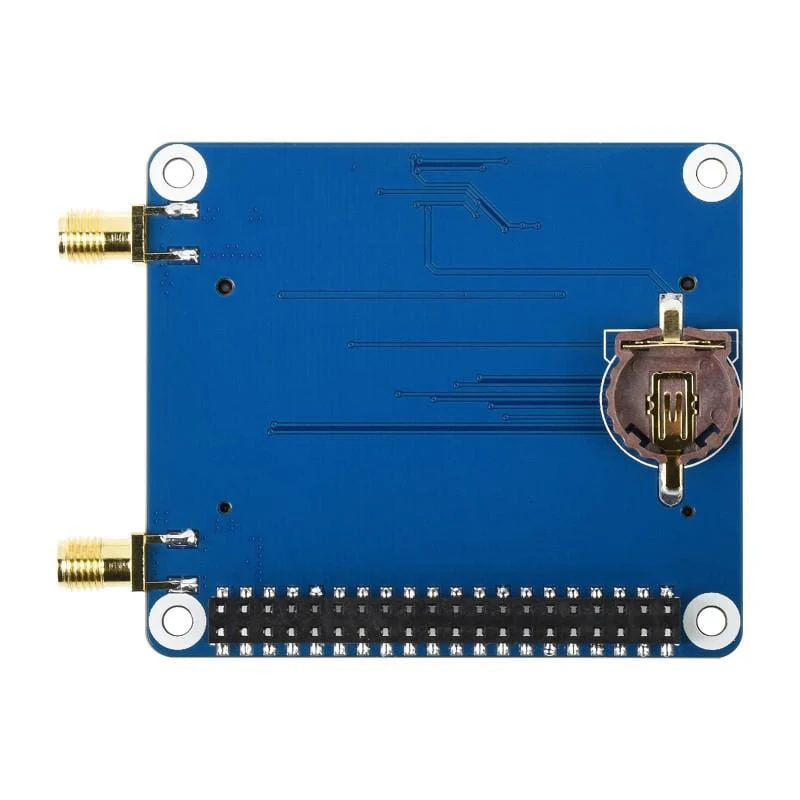

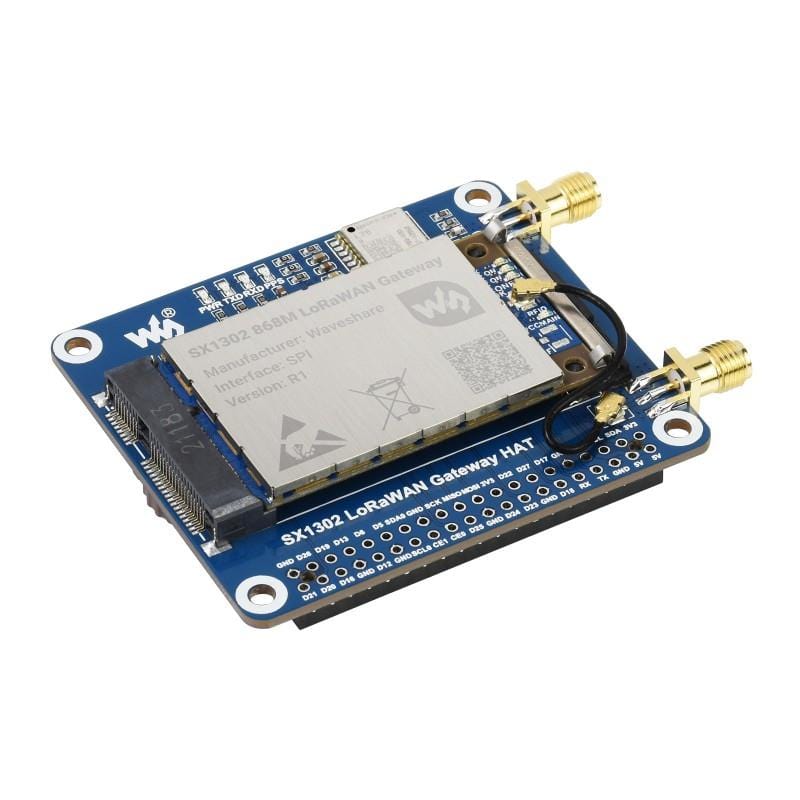

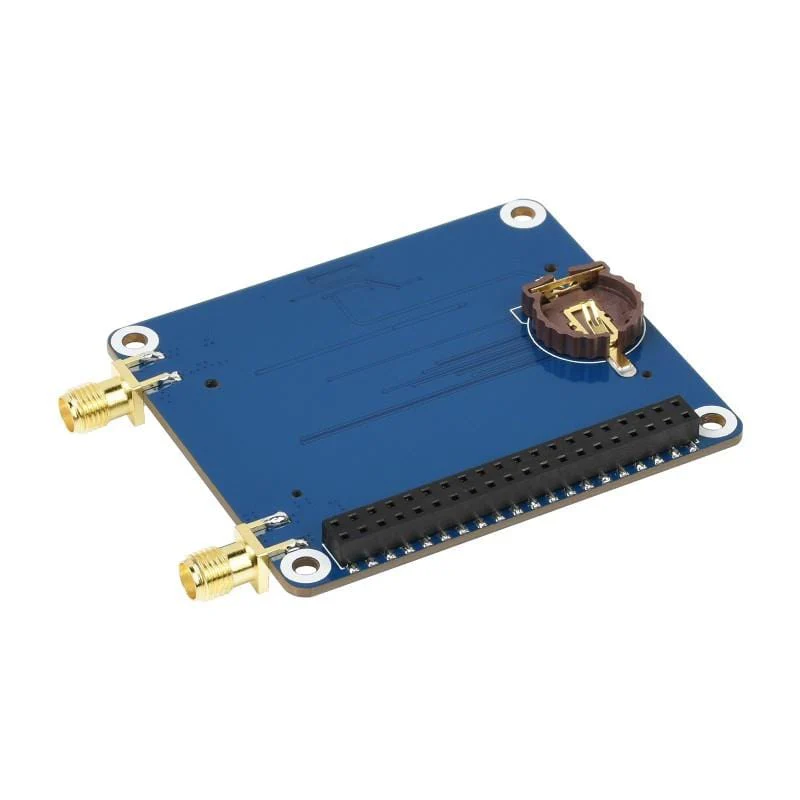

This is a communication HAT for Raspberry Pi with LoRaWAN protocol support, which incorporates core LoRa gateway module  SX1302 868M LoRaWAN Gateway . It features long range transmission, concurrent communication, large capacity data packets, and high receiver sensitivity. An onboard L76B GNSS module and Mini-PCIe socket on the base board for easy integration into your next project.

Features

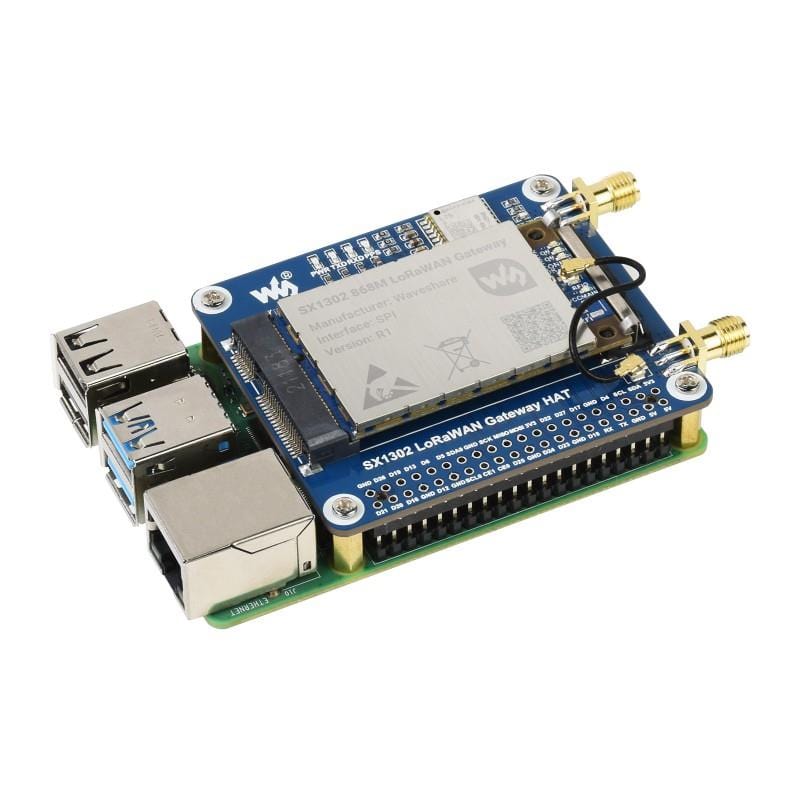

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Incorporate L76B module with GPS/BD support, Gateway module for providing accurate clock and location info
• Comes with development resources and manual (examples written in C)
• Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip, EU868 band
• Onboard PA and LNA, features 26dBm emit power and -141dBm high sensitivity receiving gain
• 10x signal channel supports multiple nodes concurrent communication, and an FEC (Forward Error Correction) algorithm
• Supports SF5~SF12 spreading factor, 19Kbps MAX (SF5/BW125KHz) data rate
• Utilizes the SPI communication protocol and standard Mini-PCIe socket, for easy integration into sorts of embedded systems

Package Contents

• 1x - SX1302 LoRaWAN Gateway HAT
• 1x - SX1302 868M LoRaWAN Gateway
• 1x - Antenna 868M 5dBi
• 1x - GPS antenna
• 1x - 20PIN female pinheader
• 1x - Dual IPEX1 wire
• 1x- Screws pack

Resources

• Waveshare Wiki

What's On Board

Pinout

Dimensions
