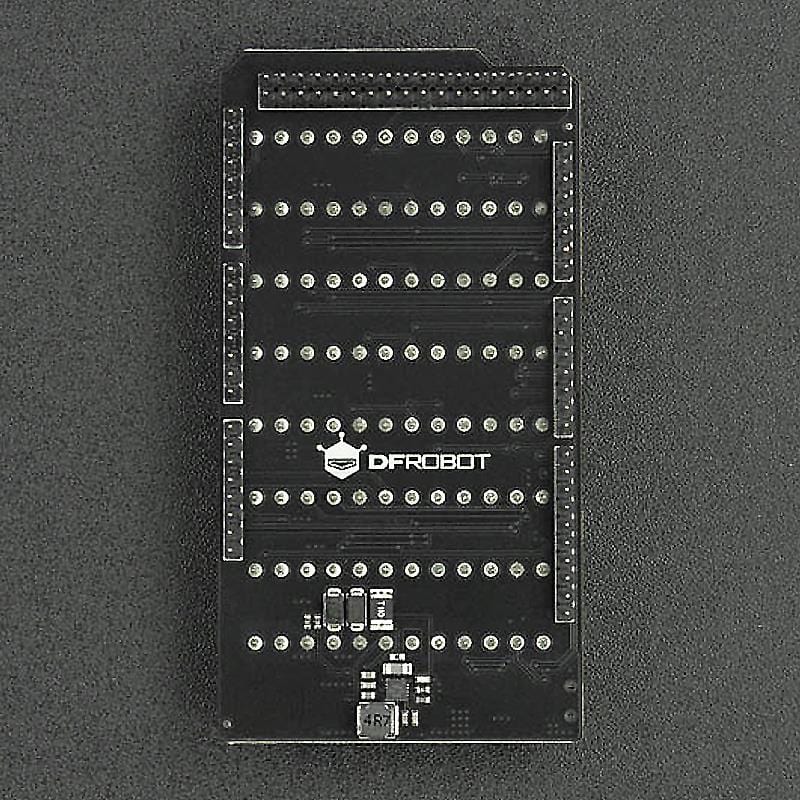

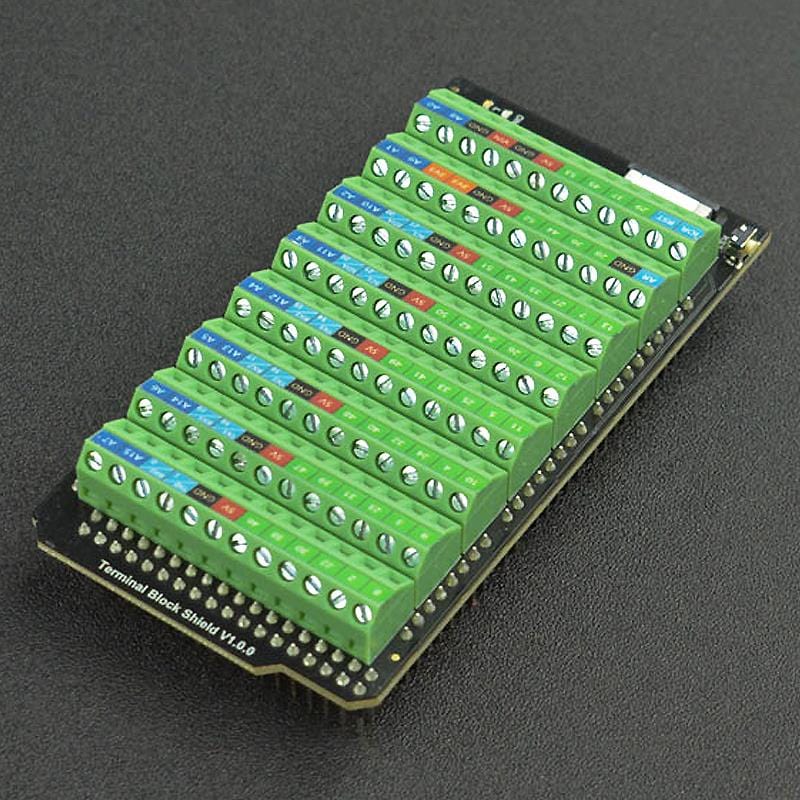

The Arduino Mega has a LOT of IO pins allowing you to make bigger, more complex projects. Unfortunately, that spaghetti of wiring can quickly get confusing, especially if a pesky loose jumper wire hasn't been noticed. To help avoid these issues, DFRobot has created this terminal block shield for the Arduino Mega, offering well labelled terminal blocks with secure screw connections!

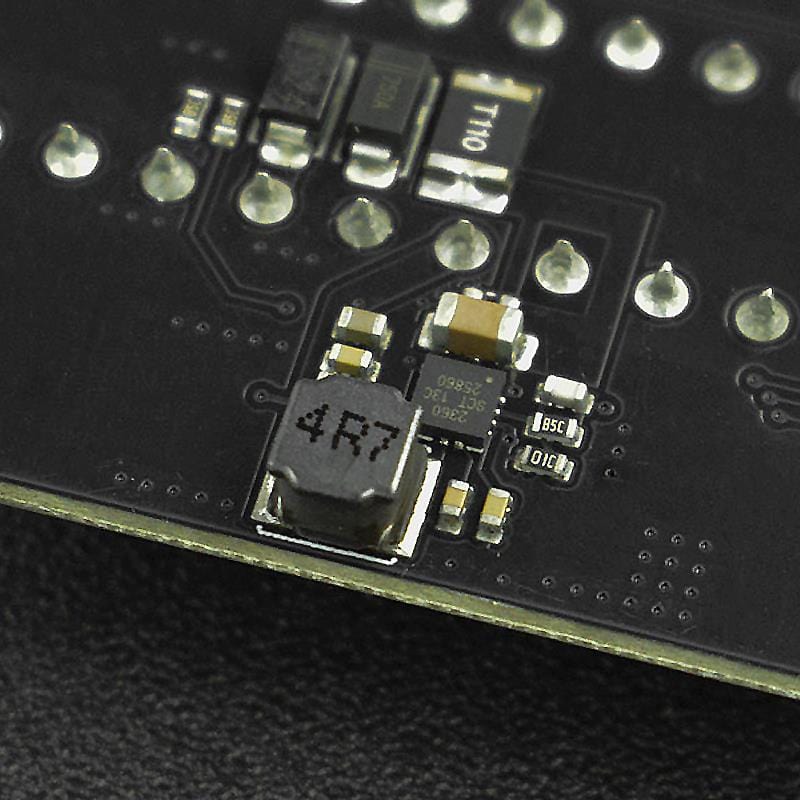

Alongside the IO pins, you'll find multiple 3.3V, 5V, and GND ports, handy for busy projects. It can be powered by 7~24V voltage without an additional buck converter circuit, with an easy to access reset button for your convenience. The onboard 18pin-FPC socket also makes it convenient for connecting a screen.

Don't forget to add a prototyping wire spool to your order for hooking up your project!

Features

• Terminal block shield for Arduino Mega and compatible boards
• Secure and reliable connections

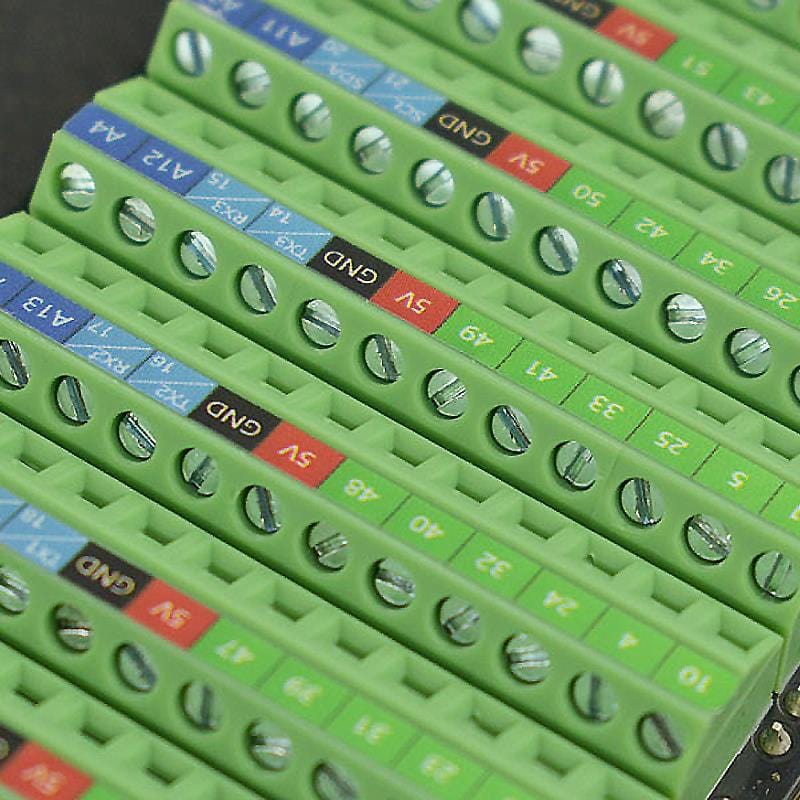

• Clear pin labels
• Additional 3.3V, 5V and GND terminals
• Reset button
• FPC socket for connecting a compatible display
• Easy wiring

Specifications

• VIN Input Voltage: 7-24V DC
• Max Load Power: 10W
• Terminal Block Pitch: 3.5mm
• Cable Size Range: 26AWG-16AWG
• Wire Strip Length: 5mm
• Screw: M2

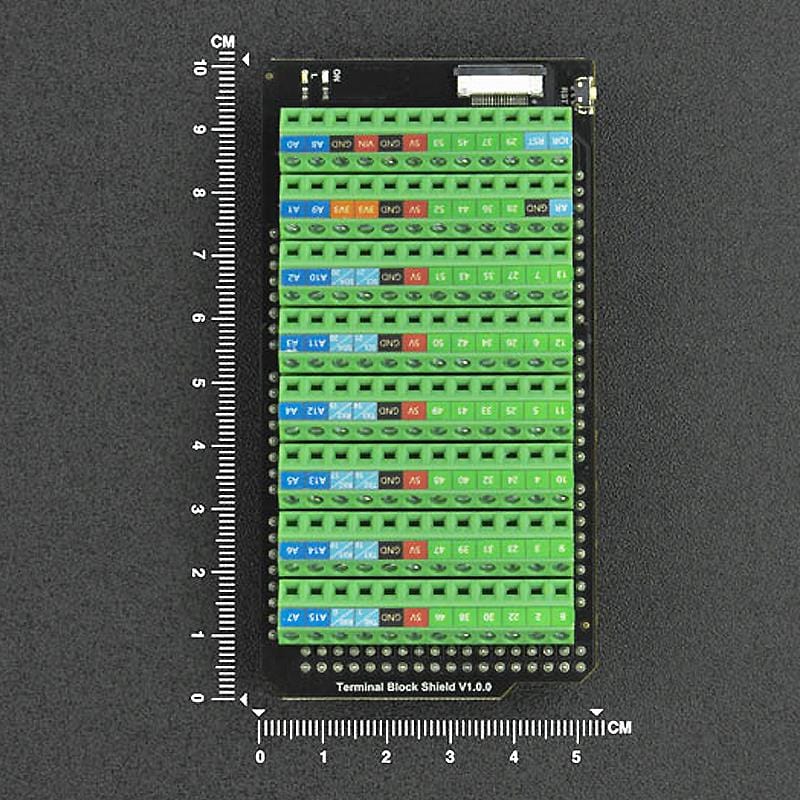

• Dimension: 101.5mmx53.3mm

Package Contents

• 1x Terminal Block Shield for Arduino Mega

FPC connector Pinout

FPC	Mega	Description
VCC	5V	5V
BLK	D7	Backlight
GND	GND	GND
SCLK	D52	SPI clock
MOSI	D51	Host output, slave input
MISO	D50	Host input, slave output
DC	D2	Data/command
RES	D4	Reset
CS	D3	TFT Chip Select
SDCS	D6	SD card Chip Select
FCS	D25	Font library Chip Select
TCS	D5	Touch Chip Select
SCL	SCL	I2C clock
SDA	SDA	I2C data
INT	D19	INT
BUSY-TE	D24	ripstop pins
X1	D23	custom pin 1
X2	D22	custom pin 2
