Turbo Metal Gear Worm Motor (12V 40RPM 8kg.cm)

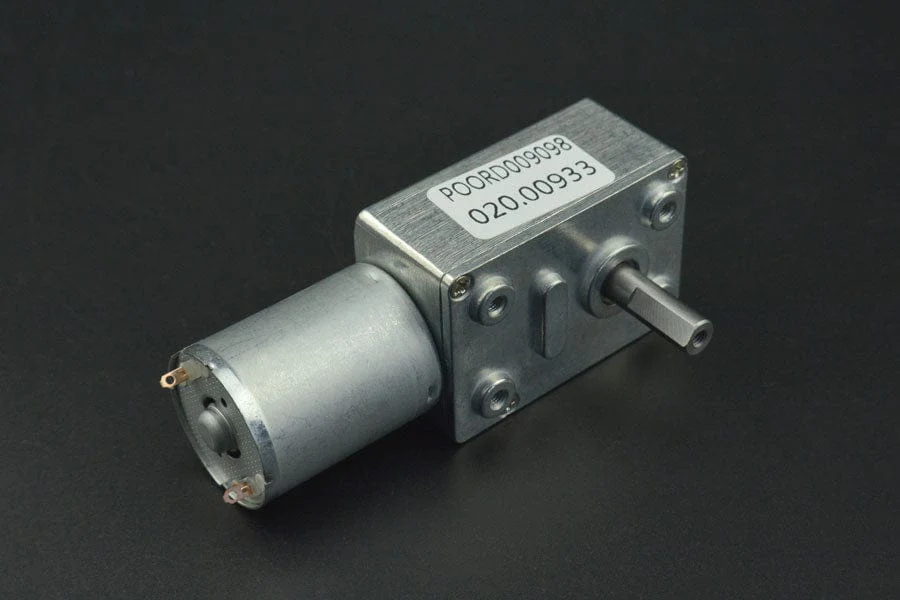

Product image 1
1 / 4

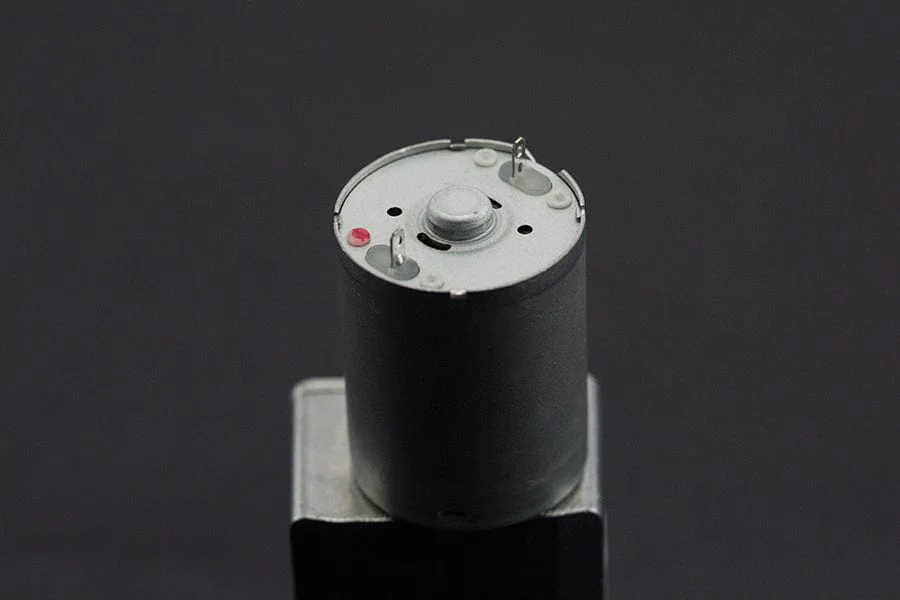

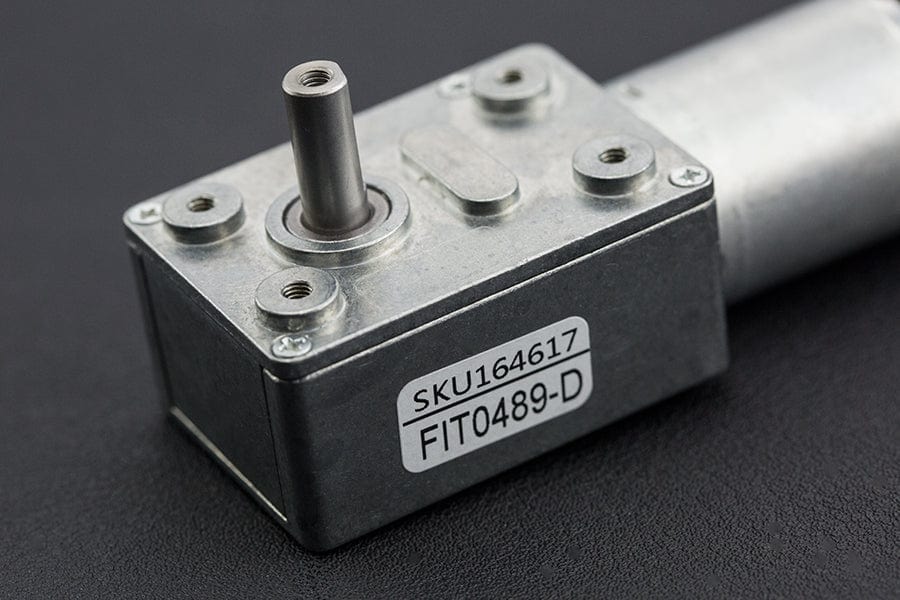

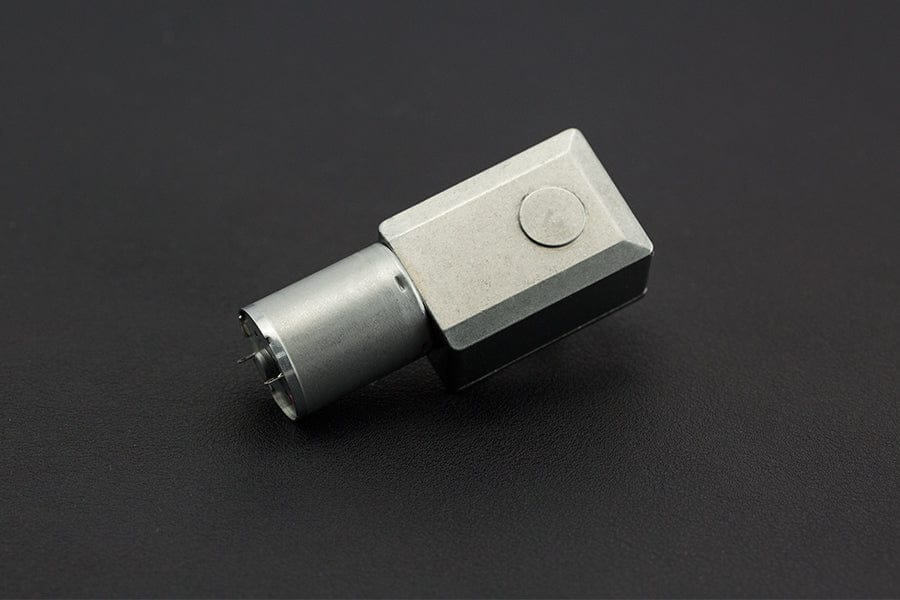

Turbo Metal Gear Worm Motor (12V 40RPM 8kg.cm)

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 6 - 15 V
  • Rated Voltage: 12V
  • No-load Speed: 40 RPM
  • No-load Current: 35 mA
  • Rated Torque: 32 RPM
  • Rated Current: 180 mA
  • Rated Torque: 2.2 kg.cm
  • Rated Power: 1.1 W
  • Stall Torque: 8 kg/cm
  • Stall Current: 1 A
  • Reduction Ratio: 1:150
  • Weight: 167 g

Shipping List

  • Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 6 - 15 V
  • Rated Voltage: 12V
  • No-load Speed: 40 RPM
  • No-load Current: 35 mA
  • Rated Torque: 32 RPM
  • Rated Current: 180 mA
  • Rated Torque: 2.2 kg.cm
  • Rated Power: 1.1 W
  • Stall Torque: 8 kg/cm
  • Stall Current: 1 A
  • Reduction Ratio: 1:150
  • Weight: 167 g

Shipping List

  • Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
$18.20
Turbo Metal Gear Worm Motor (12V 40RPM 8kg.cm)—
$18.20

Description

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.

Specification

  • Operating Voltage: 6 - 15 V
  • Rated Voltage: 12V
  • No-load Speed: 40 RPM
  • No-load Current: 35 mA
  • Rated Torque: 32 RPM
  • Rated Current: 180 mA
  • Rated Torque: 2.2 kg.cm
  • Rated Power: 1.1 W
  • Stall Torque: 8 kg/cm
  • Stall Current: 1 A
  • Reduction Ratio: 1:150
  • Weight: 167 g

Shipping List

  • Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
