UniPiCase is the Raspberry Pi Zero case that can fit any project or product! Injection moulded quality and low prices are usually not possible together – but the UniPiCase offers all three!

This is the standard version which houses a Raspberry Pi Zero and includes access to all ports.

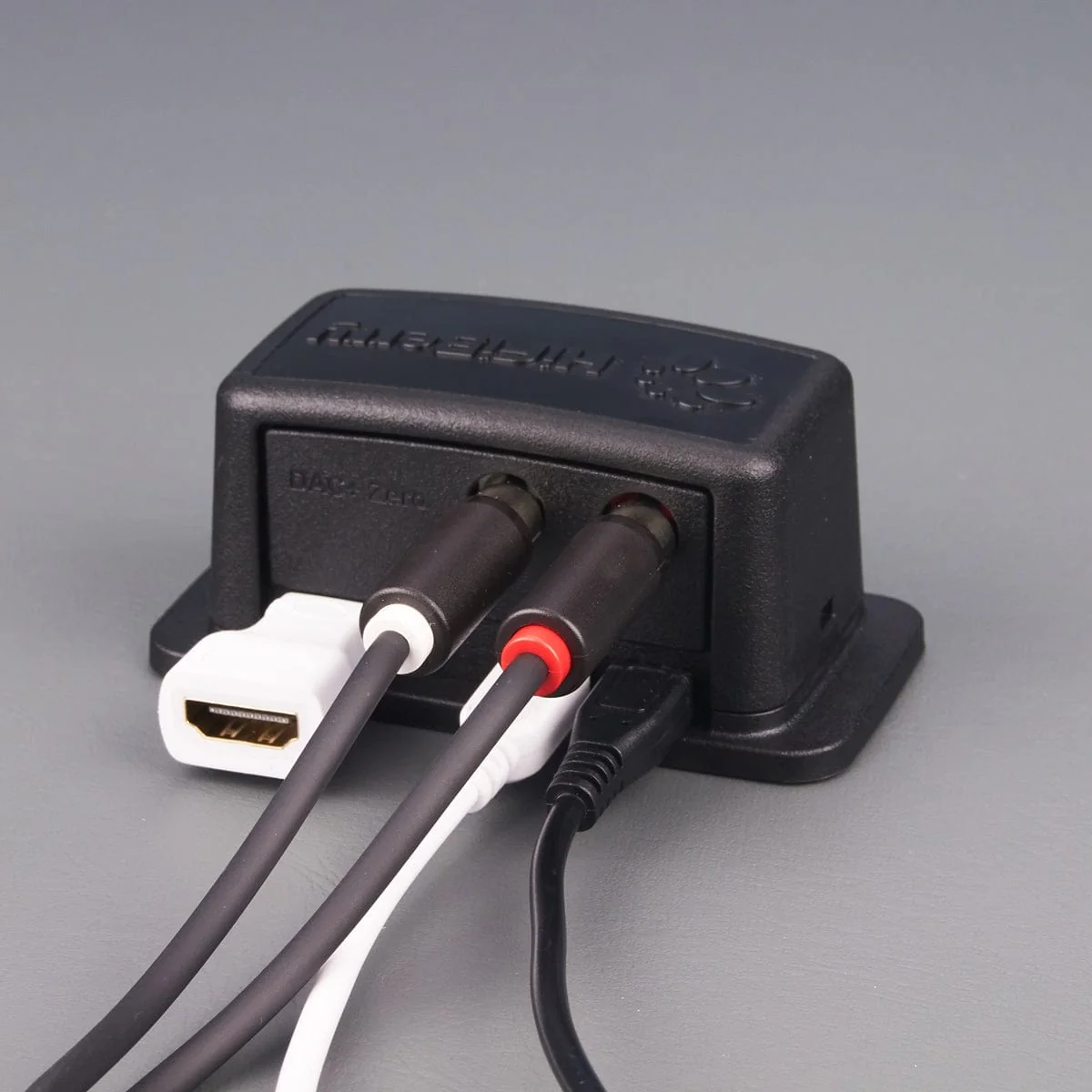

Please Note. The UniPiCase is available in multiple variations. This is the Tall (HiFiberry DAC+ Zero Faceplate) version:

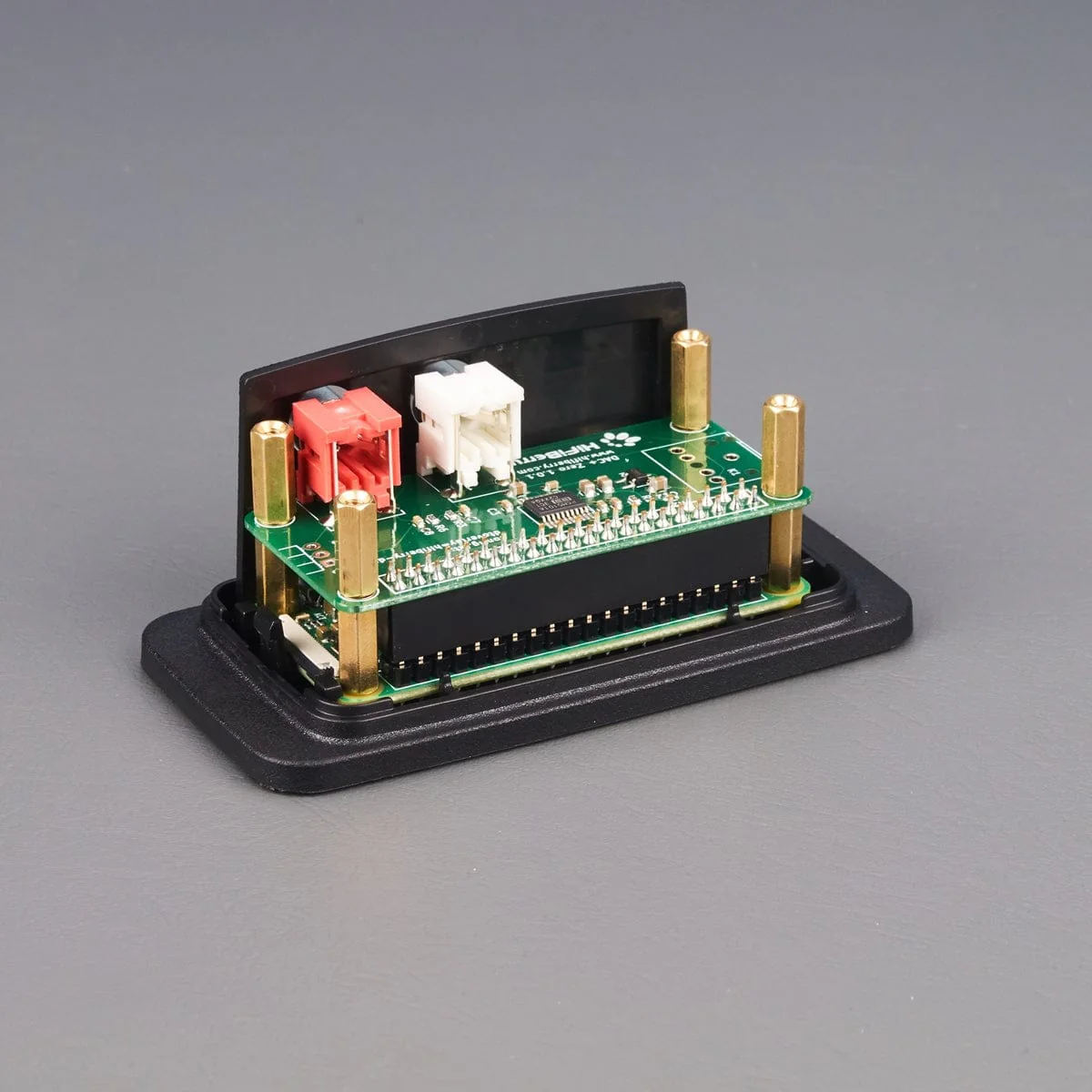

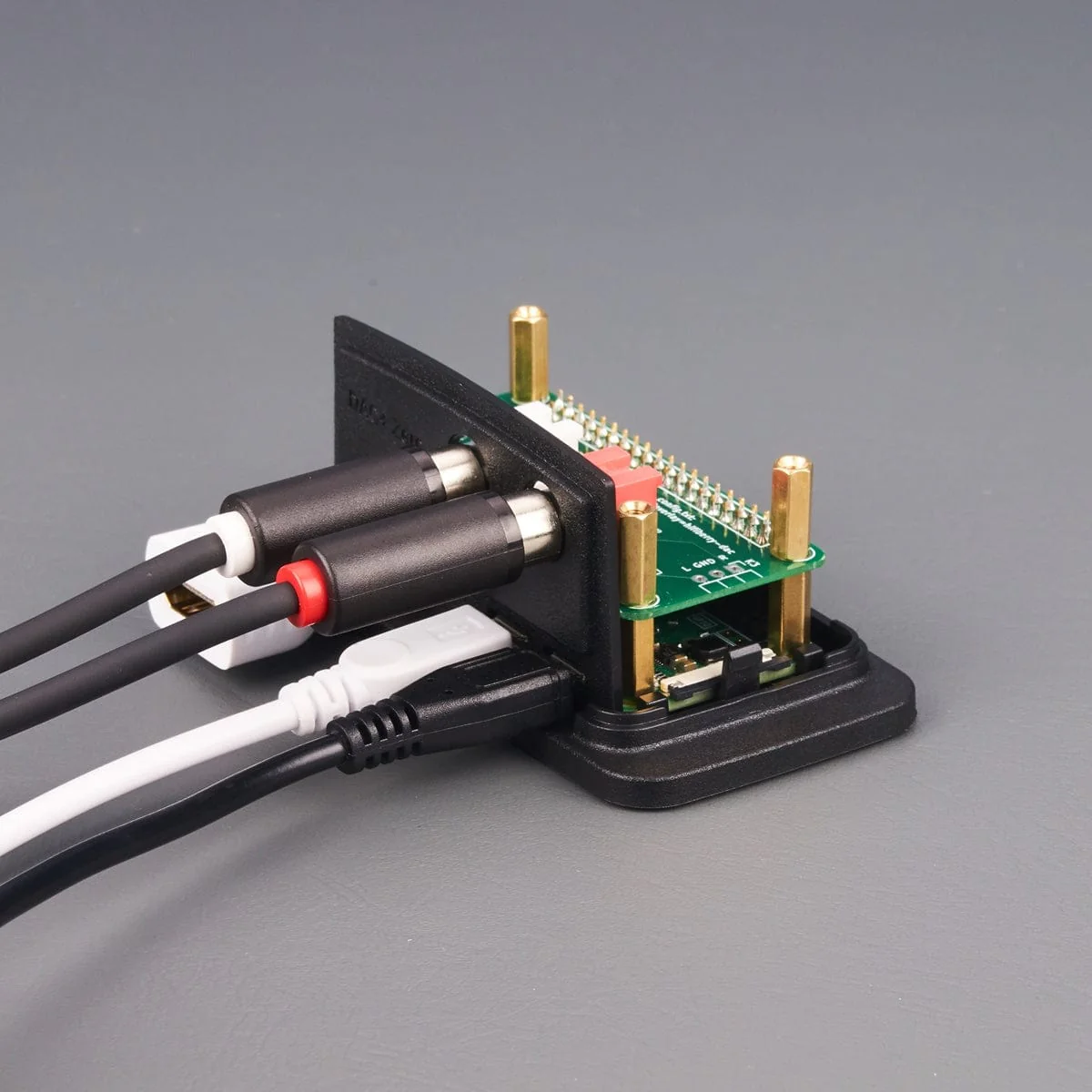

• This Tall version accommodates a Pi Zero board, as well as the HiFiberry DAC+ Zero board stacked on top of it!
• Tall cases accommodate a Pi Zero / Zero W board, as well as an add-on board such as an audio or I/O board
• Tall lids have a GPIO port for a GPIO I/O ribbon cable to connect the Pi to a cobbler/breadboard

Also required for completion

• Raspberry Pi Zero WH (or a Zero W with a header soldered)

• 11mm or 12mm Standoffs

• The HiFiberry DAC+ Zero board

UniPiCase Features:

• Durable 2-Part ABS Plastic Injection Moulded Case
• Compatible with the Raspberry Pi Zero / Zero W

• A wide base provides stability for the case when heavy HDMI cables are attached.

• The lid can be removed for inspection without disconnecting any cables from the Pi or powering it down.
• Ports for the Pi Zero/Zero W are labelled on the base to avoid confusion between the USB and Power ports.
• A camera cable slot on the underside of the case allows external cameras to be connected.
• The case can be wall mounted using two pre-marked invisible mounting holes at each end.
• Easy and Tool Free Snap Together Design
• Micro SD Card Fully Enclosed
• Self-adhesive Feet Included x 4
• Matte Black Finish Hides Fingerprints
• Dimensions: 91 x 46.5 x 40 mm [3.60 x 1.83 x 1.58 in]
• Weight 25 g [0.88 oz]

Assembly

• Assembly Instructions
