WiDo - An Arduino Compatible IoT Board [Discontinued]

Product image 1
1 / 5

WiDo - An Arduino Compatible IoT Board [Discontinued]

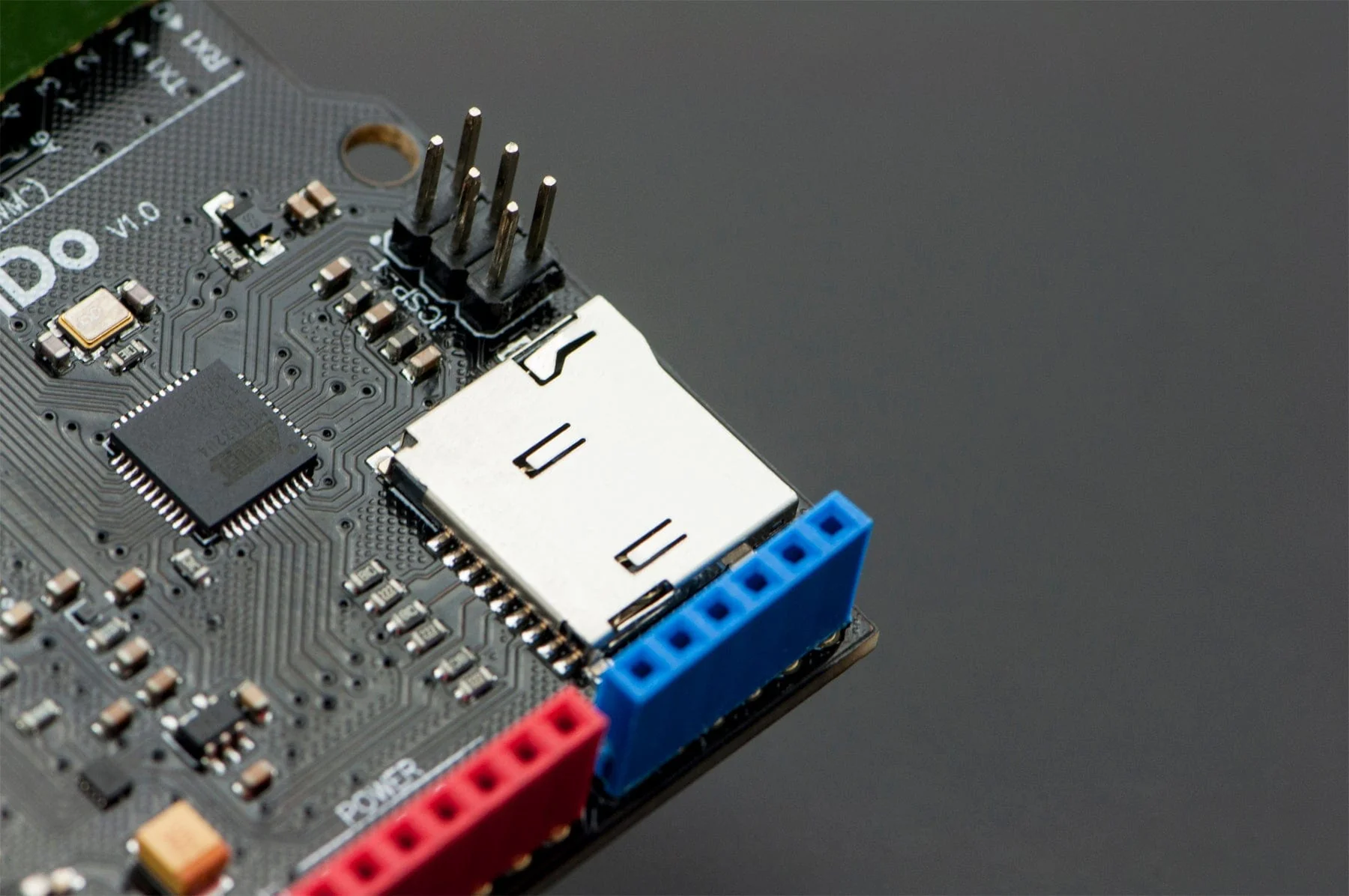

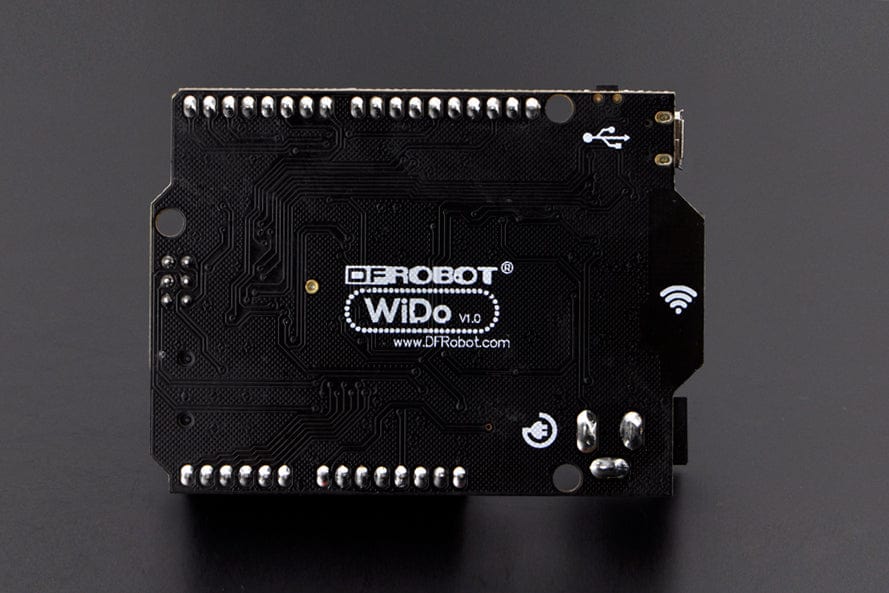

Wido is an Arduino compatible WIFI IoT Node development board, which integrates with A WG1300 WIFI solution.
The microcontroller of Wido is ATMEL ATmega32U4. Wido is compatible with copious amounts of Arduino boards and periphery modules. You can implement it on M2M Sensor Node development, Toys, Gaming, Smart Home Device and many other applications.

Specification

  • Power Supply range: 5v or 7-12v
  • Arduino Leonardo Compatible
  • Integrate with WG1300 WIFI chip and support 2.4GHz IEEE 802.11 b/g network
  • WIFi and MicroSD driven by SPI port
  • Onboard 2.4G PCB Antenna
  • Driver pins
  • WIFI Module-D7(IRQ),D5(VBAT),D10(CS),D14(MISO),D15(SCK),D16(MOSI)
  • MicroSD-D4(CS),D14(MISO),D15(SCK),D16(MOSI)
  • User friendly Reset button
  • Dimension: 72 mm x 55 mm(2.83" x 2.17")

    • Documents

    Shipping List

    • WiDo x1
    Wido is an Arduino compatible WIFI IoT Node development board, which integrates with A WG1300 WIFI solution.
    The microcontroller of Wido is ATMEL ATmega32U4. Wido is compatible with copious amounts of Arduino boards and periphery modules. You can implement it on M2M Sensor Node development, Toys, Gaming, Smart Home Device and many other applications.

    Specification

  • Power Supply range: 5v or 7-12v
  • Arduino Leonardo Compatible
  • Integrate with WG1300 WIFI chip and support 2.4GHz IEEE 802.11 b/g network
  • WIFi and MicroSD driven by SPI port
  • Onboard 2.4G PCB Antenna
  • Driver pins
  • WIFI Module-D7(IRQ),D5(VBAT),D10(CS),D14(MISO),D15(SCK),D16(MOSI)
  • MicroSD-D4(CS),D14(MISO),D15(SCK),D16(MOSI)
  • User friendly Reset button
  • Dimension: 72 mm x 55 mm(2.83" x 2.17")

    • Documents

    Shipping List

    • WiDo x1
    $7.03

    Original: $20.09

    -65%
    WiDo - An Arduino Compatible IoT Board [Discontinued]—

    $20.09

    $7.03

    Description

    Wido is an Arduino compatible WIFI IoT Node development board, which integrates with A WG1300 WIFI solution.
    The microcontroller of Wido is ATMEL ATmega32U4. Wido is compatible with copious amounts of Arduino boards and periphery modules. You can implement it on M2M Sensor Node development, Toys, Gaming, Smart Home Device and many other applications.

    Specification

  • Power Supply range: 5v or 7-12v
  • Arduino Leonardo Compatible
  • Integrate with WG1300 WIFI chip and support 2.4GHz IEEE 802.11 b/g network
  • WIFi and MicroSD driven by SPI port
  • Onboard 2.4G PCB Antenna
  • Driver pins
  • WIFI Module-D7(IRQ),D5(VBAT),D10(CS),D14(MISO),D15(SCK),D16(MOSI)
  • MicroSD-D4(CS),D14(MISO),D15(SCK),D16(MOSI)
  • User friendly Reset button
  • Dimension: 72 mm x 55 mm(2.83" x 2.17")

    • Documents

    Shipping List

    • WiDo x1
