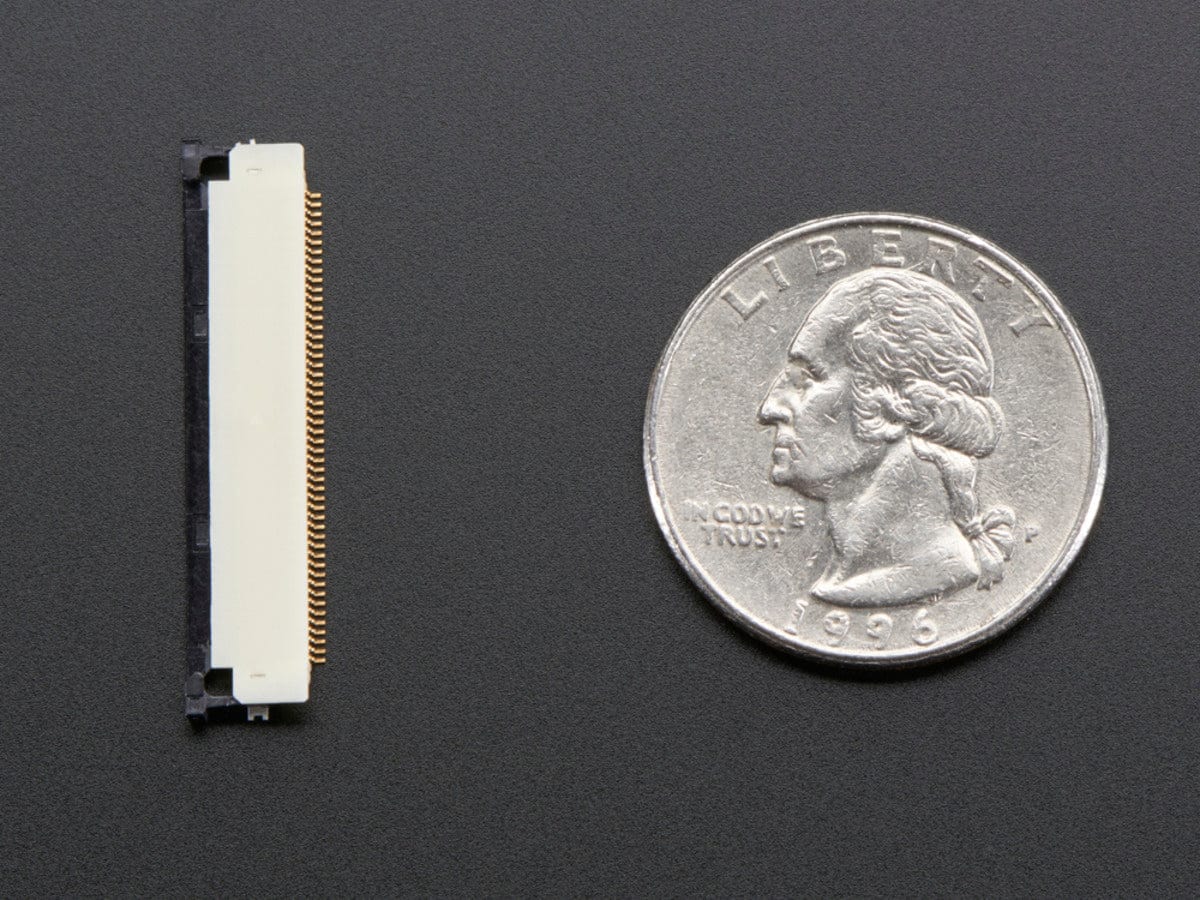

50-pin 0.5mm pitch top-contact FPC SMT Connector
This 50-pin FPC SMT top-contact connector fits perfectly with our 2.8" TFT display with resistive touch screen. It is fine pitch so it is not so easy to solder! This is for expert SMT solderers.
We suggest soldering this component to our FPC breakout board to break out all of the pins.
Technical Details
Datasheet for this connector (use the 50 pin top contact version dimensions) Dimensions:
- 29mm x 2mm x 6mm / 1.1" x 0.1" x 0.2"
- Weight: 0.5g
