Panel-Mount Banana Jacks 4mm - Pack of 5 Multi-Color

Product image 1
1 / 4

Panel-Mount Banana Jacks 4mm - Pack of 5 Multi-Color

You've done such a great job making your own electronic control panel that the last thing you need are those wires to get pulled out and frizzy. These fancy Panel-Mount Banana Jacks look good and work well. They will snugly hold onto any 4mm banana plug or cable, and have a colorful ring you can use to help identify and categorize connections.

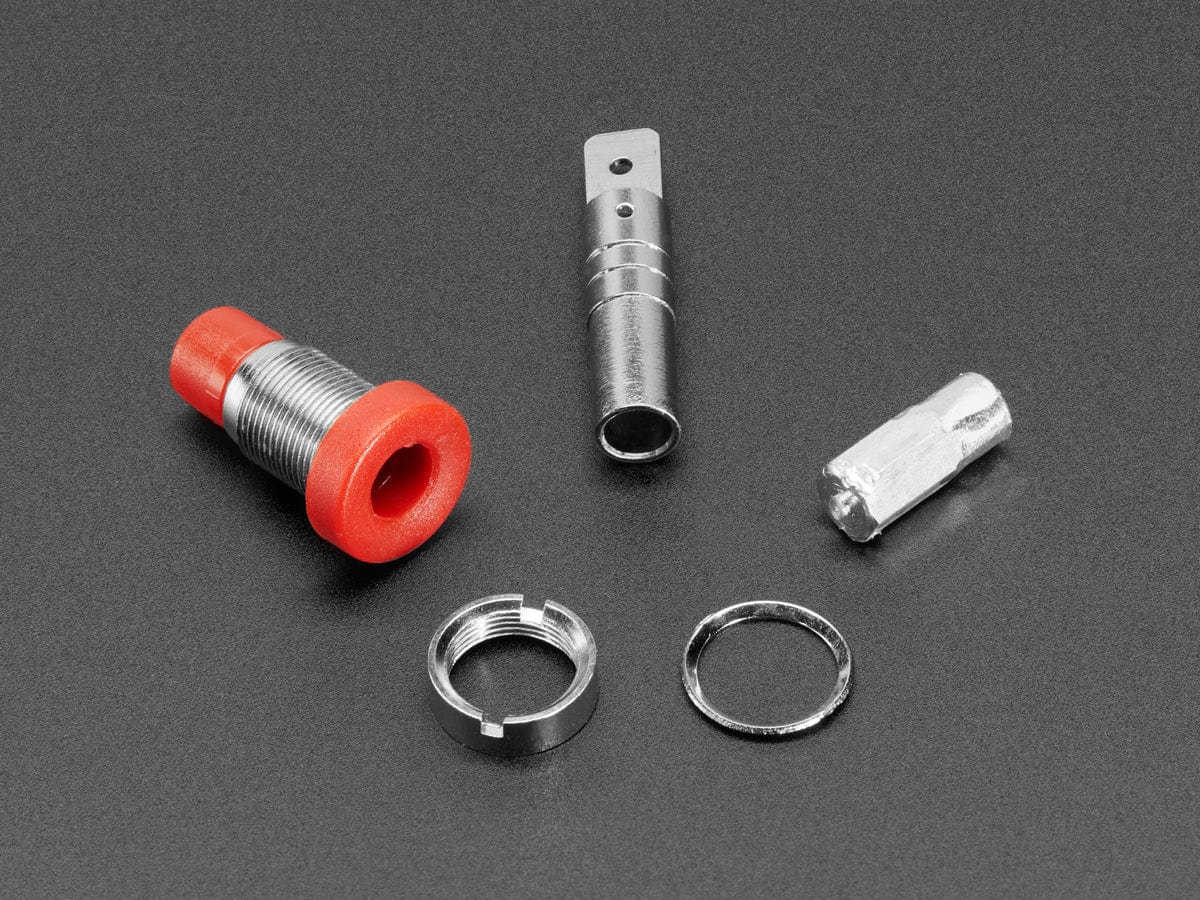

Each plug has an M8 screw body with a washer+nut combination that can be used to secure it to a panel. The back has a large slug with a hole you can solder to.

Comes as pack of 5, you get one of each lovely color. We also have Solder-free Stackable Banana Plugs that go well with these jacks.

Technical Details

  • Body: Nickel-plated brass
  • Insulator: PA66 Nylon
  • Voltage: up to 30V AC - 60V DC
  • Current: up to 15A
  • Weight (single jack): 4.2g
  • Internal diameter: about 4.8mm
  • Length: about 28mm

You've done such a great job making your own electronic control panel that the last thing you need are those wires to get pulled out and frizzy. These fancy Panel-Mount Banana Jacks look good and work well. They will snugly hold onto any 4mm banana plug or cable, and have a colorful ring you can use to help identify and categorize connections.

Each plug has an M8 screw body with a washer+nut combination that can be used to secure it to a panel. The back has a large slug with a hole you can solder to.

Comes as pack of 5, you get one of each lovely color. We also have Solder-free Stackable Banana Plugs that go well with these jacks.

Technical Details

  • Body: Nickel-plated brass
  • Insulator: PA66 Nylon
  • Voltage: up to 30V AC - 60V DC
  • Current: up to 15A
  • Weight (single jack): 4.2g
  • Internal diameter: about 4.8mm
  • Length: about 28mm

$5.80
Panel-Mount Banana Jacks 4mm - Pack of 5 Multi-Color
$5.80

Description

You've done such a great job making your own electronic control panel that the last thing you need are those wires to get pulled out and frizzy. These fancy Panel-Mount Banana Jacks look good and work well. They will snugly hold onto any 4mm banana plug or cable, and have a colorful ring you can use to help identify and categorize connections.

Each plug has an M8 screw body with a washer+nut combination that can be used to secure it to a panel. The back has a large slug with a hole you can solder to.

Comes as pack of 5, you get one of each lovely color. We also have Solder-free Stackable Banana Plugs that go well with these jacks.

Technical Details

  • Body: Nickel-plated brass
  • Insulator: PA66 Nylon
  • Voltage: up to 30V AC - 60V DC
  • Current: up to 15A
  • Weight (single jack): 4.2g
  • Internal diameter: about 4.8mm
  • Length: about 28mm
