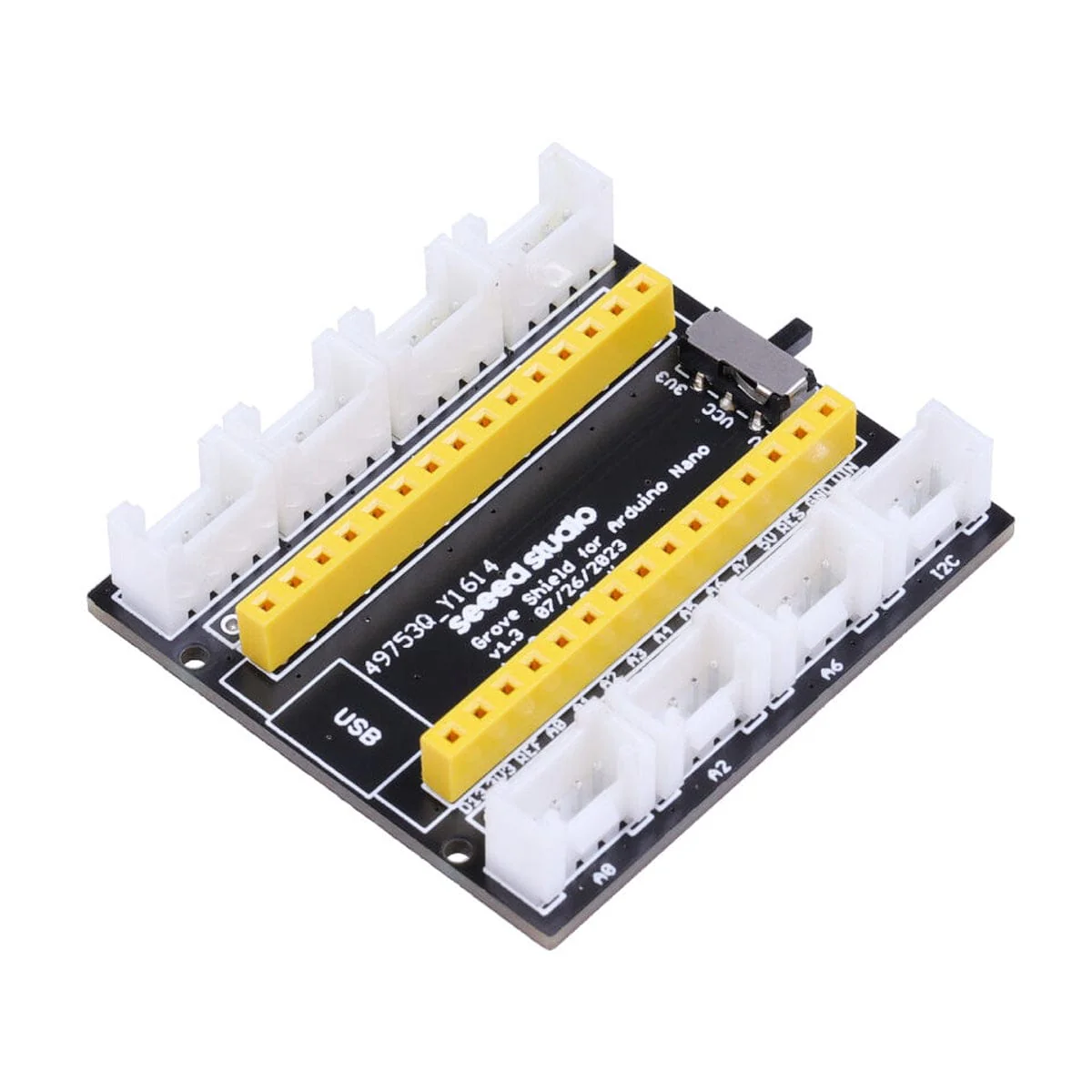

This Grove Shield for the Arduino Nano offers a simple way to connect your Arduino Nano or Seeeduino Nano without the need for breadboards and jumper wires.

It extends the motherboard's pins to 8 Grove connectors, including 3 digital, 3 analogue, 1 I2C, and 1 UART connector. This shield makes prototyping easy by making connections easier and cleaner, allowing you to focus more on your project.

Features

• Plug the expansion board into the Arduino Nano or Seeeduino Nano and use it directly.
• It expands to 8 Grove connectors, including 3 Grove digital connectors, 3 Grove analogue connectors, 1 Grove I2C connector, and 1 Grove UART connector.
• The shield provides "Plug and Play" and is useful for various projects.
• Product Number: Seeed 103100124

Specifications

Operating Voltage	3.3V/5V
Operation Temperature	-25℃ to +85℃
Analogue Ports	3
Digital Ports	3
UART Ports	1
I2C Ports	1

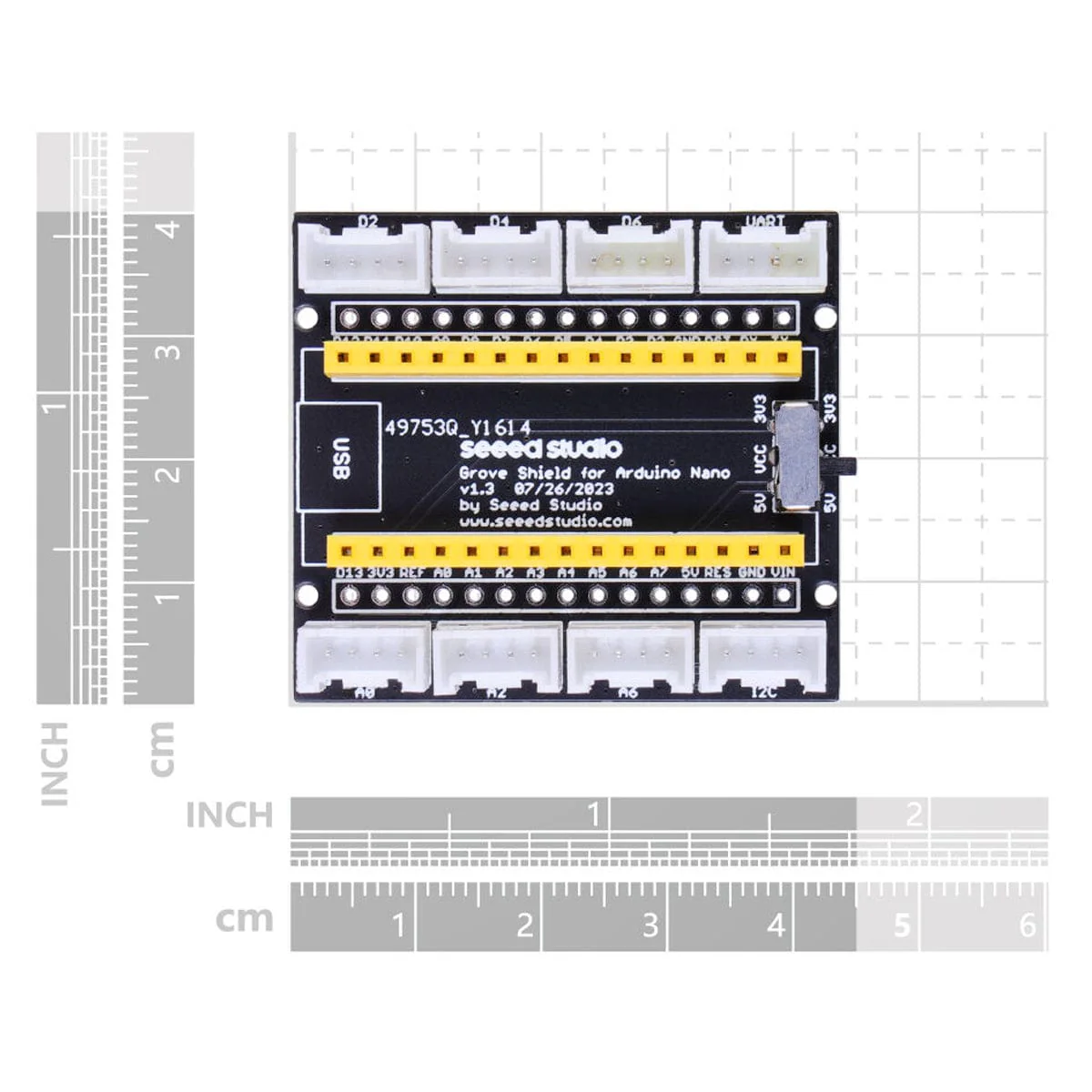

Size	45mm x 40mm

Resources

• Product Wiki

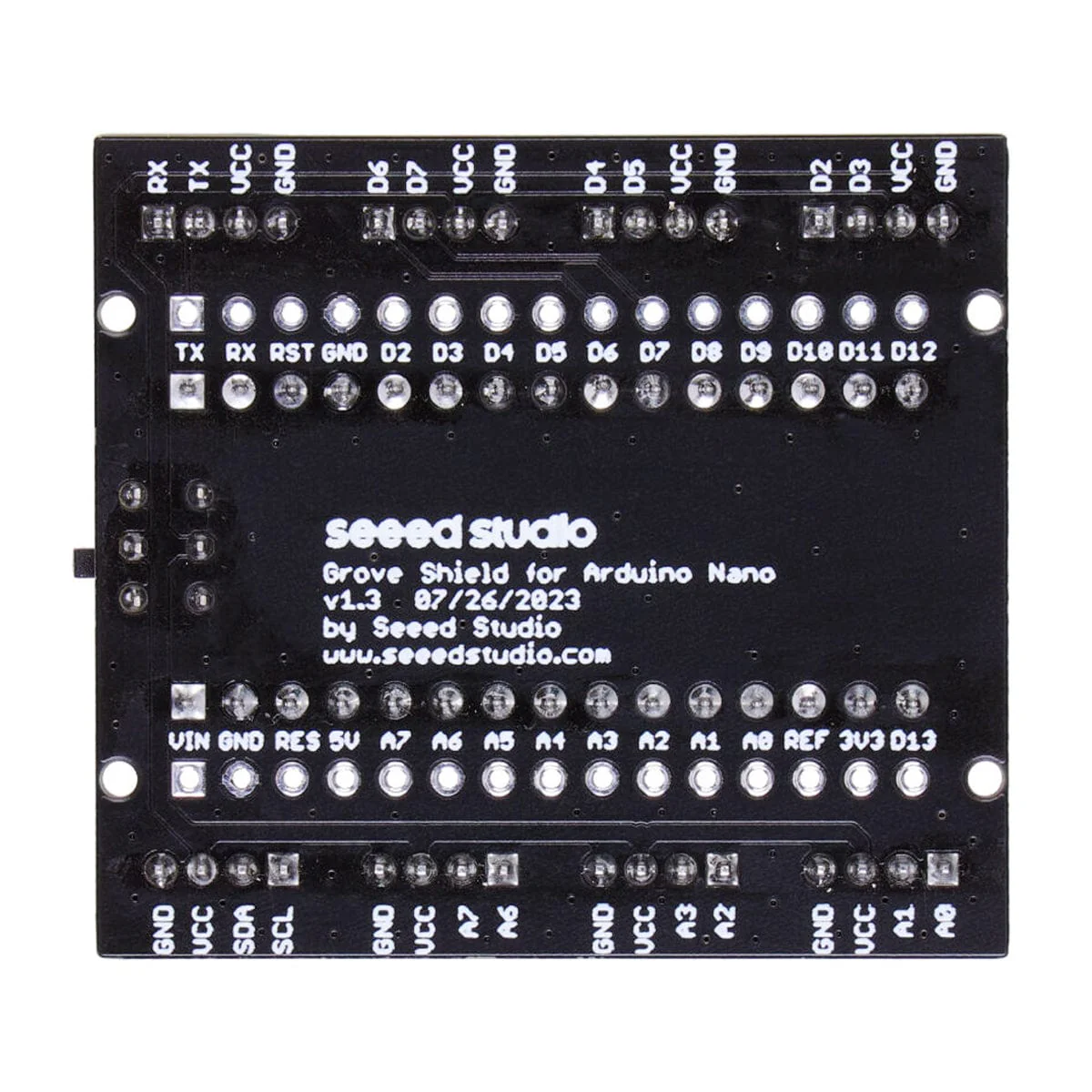

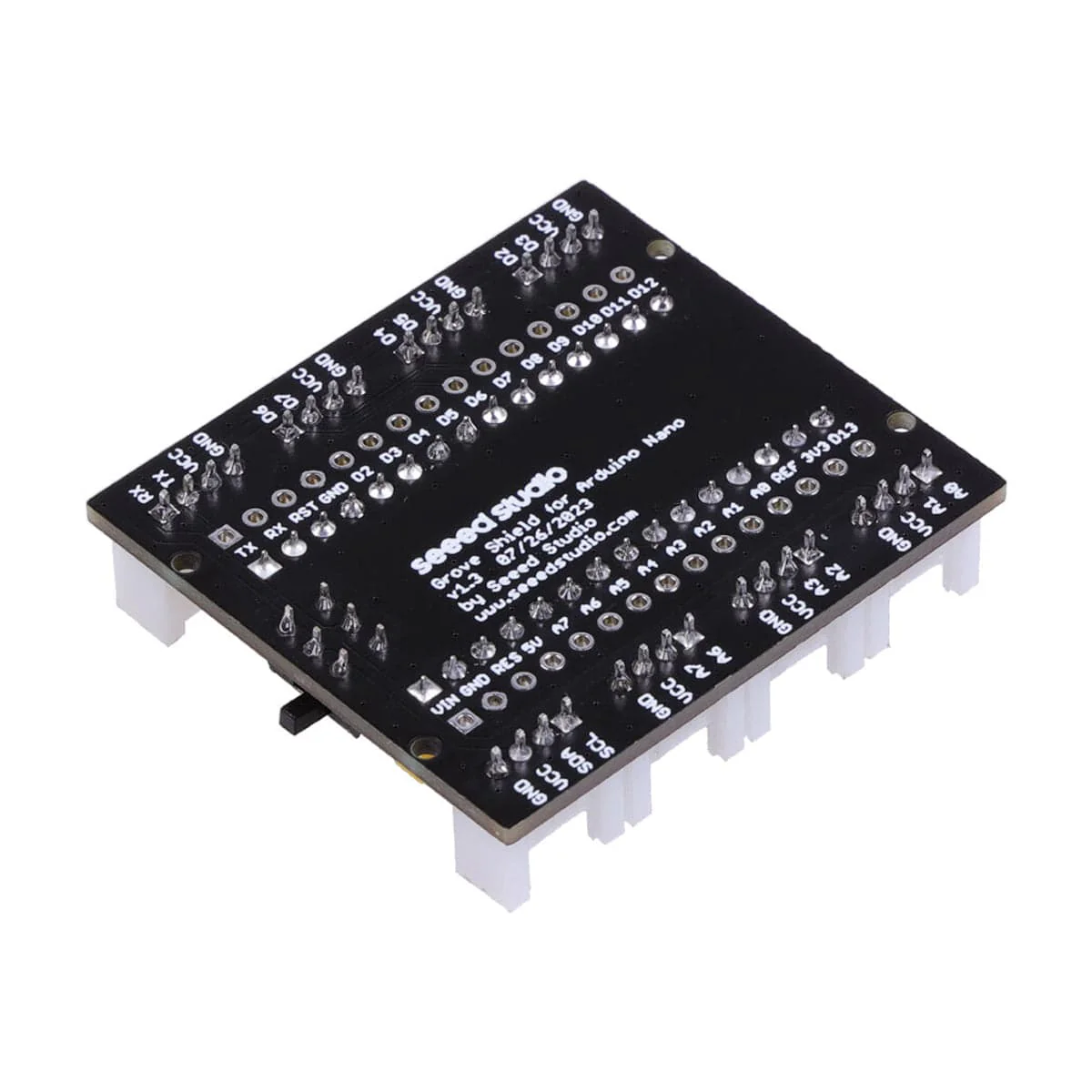

Pinout

• 1-Analog Ports: include 3 analogue ports, A0, A2, A6.
• 2-Digital Ports: include 3 digital ports, D2, D4, D6.
• 3-UART Port: 1 UART port.
• 4-I2C Ports: 1 I2C ports.

Package Contents

• 1x Grove Shield for Arduino Nano
