The SenseCAP Indicator D1L is a 4" touchscreen IoT LoRa development platform powered by an ESP32S3 and RP2040 dual-MCU system.

This D1L variant of the SenseCAP Indicator includes Wi-Fi, Bluetooth and LoRa communication using the SX1262 transceiver, making it suitable for developing long-range, low-power wireless applications. The D1L variant does not include any sensors.

The embedded SX1262 LoRa® module enables you to build the LoRa application and connect your local LoRa sensors to the Cloud via Wi-Fi. For example, you could build a LoRa hub device to connect your LoRa sensors to your smart home ecosystem to implement Matter over Wi-Fi. In this way, the LoRa devices could be connected to the Matter ecosystem via Wi-Fi, without the need to buy a new Matter-compatible device.

Designed for flexibility, the D1L runs fully open-source hardware and firmware and is compatible with the wider SenseCAP ecosystem. It is intended for use in wireless display terminals, sensor interfaces, and other custom LoRa-based IoT deployments.

A USB-C cable is included for powering the device (5V 1A required).

SenseCAP Indicator Model Comparison

There are four models of the SenseCAP Indicator, which might be a little confusing. Here's a comparison table to help you find the right version for your project:

Model	D1	D1S	D1L	D1Pro
tVOC sensor	❌	✅	❌	✅
CO₂ sensor	❌	✅	❌	✅
Grove TH Sensor	❌	✅	❌	✅
LoRa (SX1262)	❌	❌	✅	✅
Wi-Fi	✅	✅	✅	✅
Bluetooth	✅	✅	✅	✅

We also stock the SenseCAP Indicator for Meshtastic & LoRa, which sits outside of this range.

Features

• 4" capacitive touchscreen display
• Dual MCU system: ESP32S3 and RP2040
• D1L variant - LoRa® connectivity via SX1262 transceiver (no sensors)
• Supports Wi-Fi and Bluetooth
• Fully open-source hardware and firmware
• Suitable for IoT development and wireless data interfaces
• Product number: Seeed 114993070

Specifications

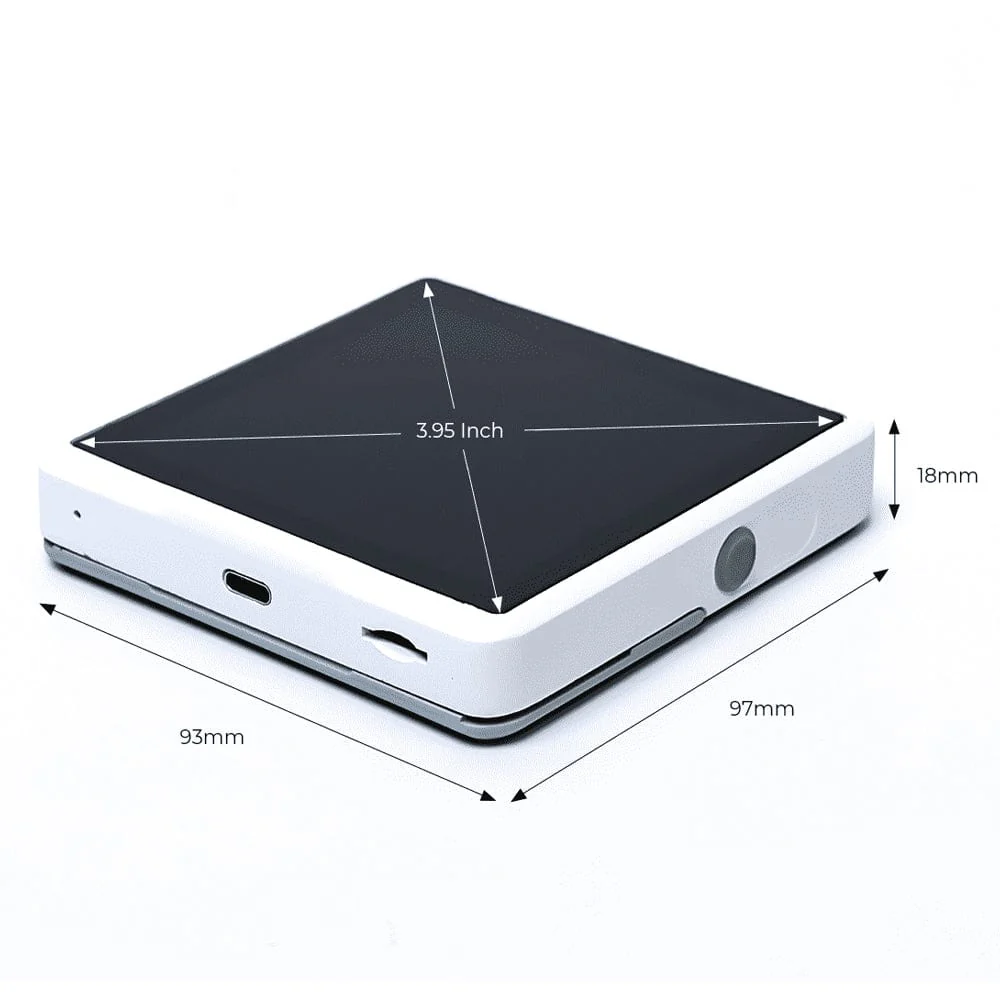

Screen	4" (3.95") Capacitive RGB Touch Screen
Screen Resolution	480 × 480 pixels
Power Supply	5V DC 1A (USB-C cable included)
Battery	No
Processor	ESP32-S3: Xtensa® dual-core 32-bit LX7 up to 240MHz RP2040: Dual ARM Cortex-M0+ up to 133MHz
Flash	ESP32S3: 8MB RP2040: 2MB
External Storage	Supports up to 32GB Micro SD Card (not included)
Wi-Fi	802.11b/g/n, 2.4GHz
Bluetooth	Bluetooth 5.0 LE
LoRa® (SX1262)	LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity: -136dBm @ SF12 BW = 125KHz RX Sensitivity, up to 5km (depending on gateway antenna and environments)
Buzzer	MLT-8530, Resonant Frequency: 2700Hz

Resources

• Get Started with SenseCAP Indicator
• SenseCAP Indicator User Manual
• RP2040 Datasheet
• ESP32-S3 Datasheet

Package Contents

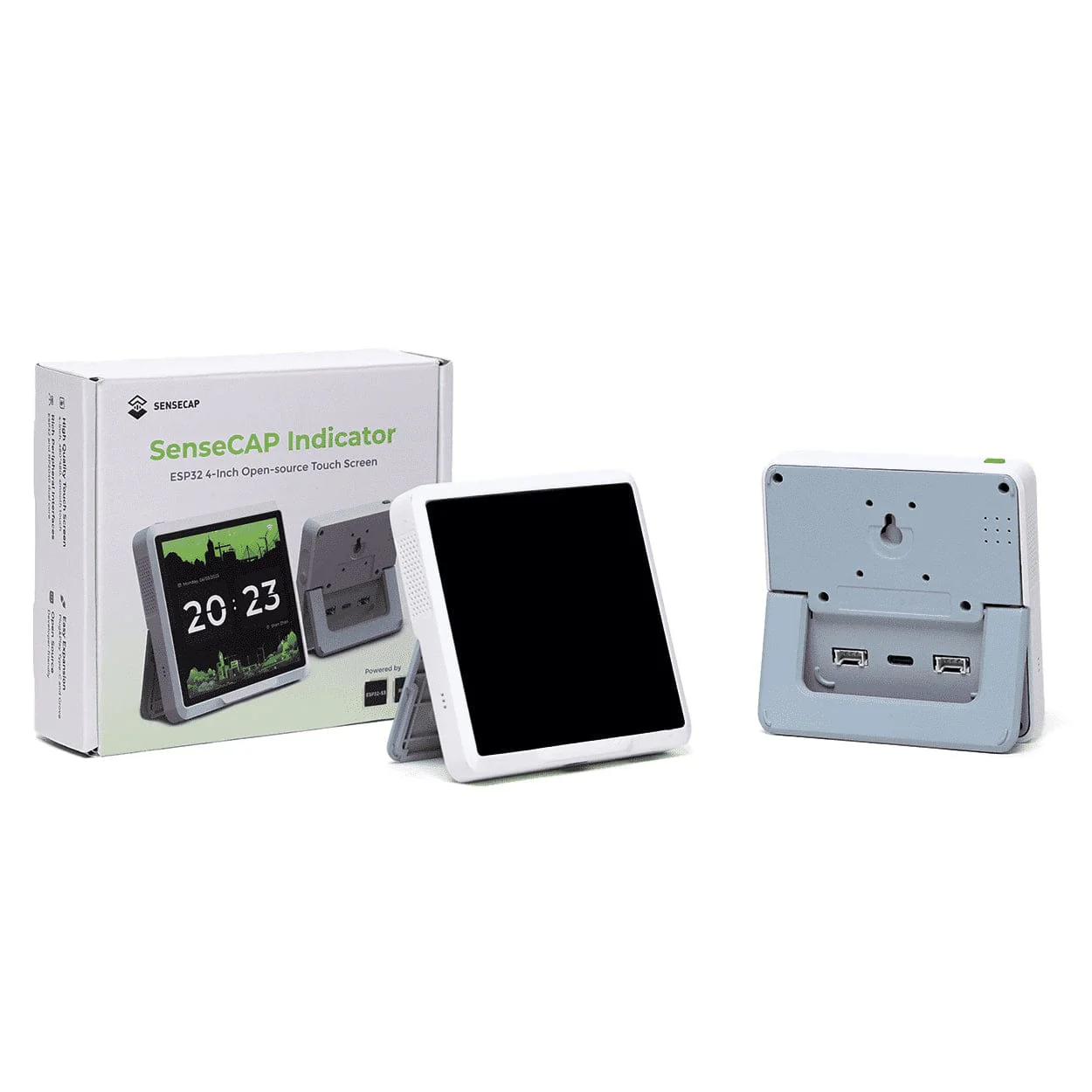

• 1x SenseCAP Indicator D1L
• 1x USB Type-C Cable (1m)
