Zero4U 4-Port USB Hub for Pi Zero W
The UUGear Zero4U is a 4-port USB hub for your Raspberry Pi Zero W (not Zero 2!) which can be mounted to the Zero back-to-back.
After mounting this USB hub to your Raspberry Pi Zero, it immediately has 4 USB ports that could transfer data in USB 2.0 high-speed.
Not compatible with the Raspberry Pi Zero 2 due to a change in pogo pin pads.
The 4 pogo pins on the back will connect the PP1, PP6, PP22 and PP23 testing pads on Raspberry Pi Zero, hence no soldering will be needed.
The hub will take power directly from your Raspberry Pi Zero, so you don’t need to power the USB hub separately. However, you can use the JST XH2.54 connector on board as the alternative power input port if you wish.
There is one blue LED on the board as the power indicator and four white LEDs beside the USB ports as transaction indicators.
If you use this USB hub with other types of computers, you can use a Mini-USB cable (not included) to connect the mini-USB port onboard to the upstream USB port.
We also stock a version without Pogo pins for making your own Raspberry Pi USB hub.
Compatibility
- Works with the Raspberry Pi Zero W and older Zero v1.3
- DOES NOT work with the Zero 2

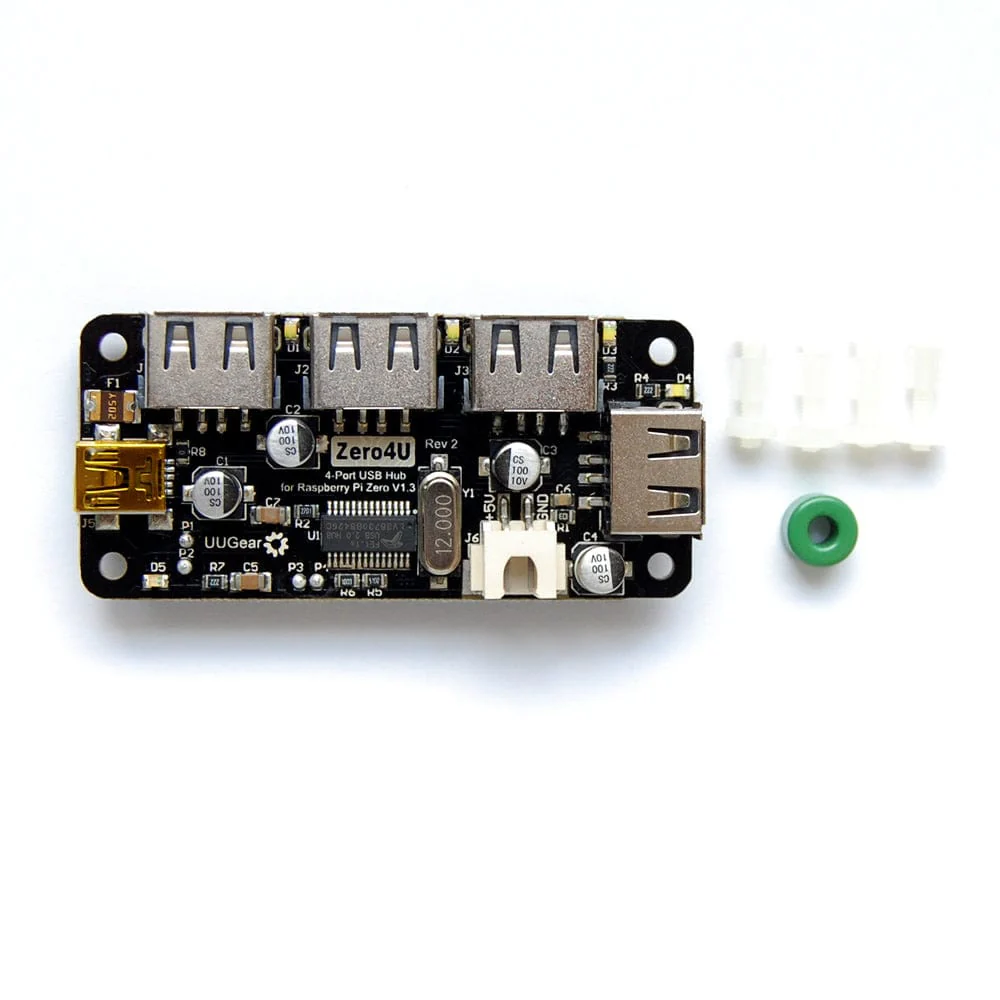

Kit Contents
- 4-port USB hub board x 1
- 5 x 4mm plastic spacer x 4
- M2.5 plastic screw x 4
- M2.5 plastic nut x 4
- Ferrite ring
